CR Yalelift ITG Geared Trolley Hoist F/W Stainless Steel Chain

  • CR Yalelift ITG Geared Trolley Hoist F/W Stainless Steel Chain
  • Availability: In Stock
  • Estimated lead time to dispatch is 1-2 Days

  • £937.45

Available Options


Yalelift ITG Geared Trolley Corrosion Resistant Hoist F/W Stainless Steel Chain

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360.

Increased life expectancy.

All models of the Yalelift programme can be supplied with corrosion resistant features which include zinc-plated load chain and stainless steel hand chain as standard.

Corrosion protection

Corrosion starts on the surface of components due to reaction of environmental influences. This affects the mechanical properties of the components, e.g. breaking load and total ultimate elongation.

Many components are supplied in black (unmachined), bright (machined) or painted condition. This offers certain protection but after only a short period of time corrosion can begin. With the application of a protective coating, the development of corrosion can be reduced and delayed, thus extending the service life of the treated components.

Applications

Completely corrosion resistant units with stainless steel hand and load chains should be used in all conditions with increased requirements towards corrosion protection.

Typical applications are in food processing (e.g. dairy, abattoir, etc.) chemical industries (e.g. paper, dye industries), farming and sewage treatment.



Capacity (WLL) kg Falls of load chain Lifting Height mtr Type A - Beam width mm  Type A - Weight kg Type B - Beam width mm  Tpye B - Weight kg Closed height mm
500 1 3 50 - 180 24 180 - 300 25 245
900  1 3 50 - 180 32 180 - 300 33 272
1250 1 3 58 - 180 49 180 - 300 50 323
2000 1 3 74 - 180  82 180 - 300 84 382
4000 2 3 98 - 180 130 180 - 300 134 550


The hoists/trolleys are fully corrosion resistant using the Delta Protekt KL 100 process, including the bottom hooks and are all fitted with stainless steel load and hand chain. *Prices shown are for range A. Range B prices available on request.

Dimensions Sheet Dimensions Sheet

Information Sheet Information Sheet

Capacity (WLL) kg Falls of load chain Lifting Height mtr Type A - Beam width mm  Type A - Weight kg Type B - Beam width mm  Tpye B - Weight kg Closed height mm
500 1 3 50 - 180 24 180 - 300 25 245
900  1 3 50 - 180 32 180 - 300 33 272
1250 1 3 58 - 180 49 180 - 300 50 323
2000 1 3 74 - 180  82 180 - 300 84 382
4000 2 3 98 - 180 130 180 - 300 134 550



The hoists / trolleys are fully corrosion resistant using the Delta Protekt KL 100 process, including the bottom hooks and are all fitted with stainless steel load and hand chain. *Prices shown are for range A. Range B prices available on request.

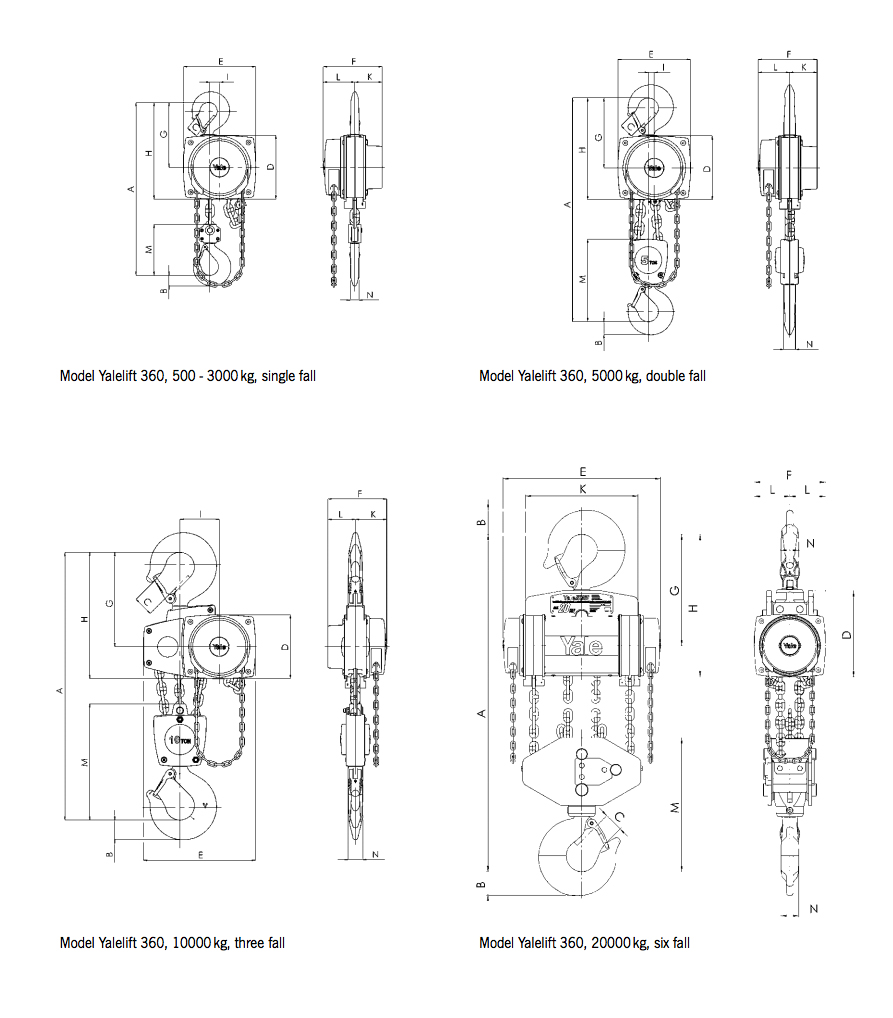

Model

YL 500

YL 1000

YL 2000

YL 3000

YL 5000

YL 10000

YL 20000

A min., mm

300

335

395

520

654

825

1065

B, mm

17

22

30

38

45

68

85

C, mm

24

29

35

40

47

68

64

D, mm

133

156

182

220

220

220

303

E, mm

148

175

203

250

250

383

555

F, mm

148

167

194

219

219

219

250

G, mm

139

164

192

225

242

326

391

H, mm

206

242

283

335

352

436

501

I, mm

24

24

31

34

21

136

–

K, mm

61

70

83

95

95

95

396

L, mm

87

97

111

124

124

124

125

M, mm

110

125

156

178

285

401

471

N, mm

14

19

22

30

37

50

56
