Yoke Grade 8 7mm Single Leg 1.5 Tonne Chain Sling
- Brand: Yoke
- Estimated lead time to dispatch is Same Day Before 1pm
-
£54.66
Quick Overview:
Chain Diameter: 7mm
Number of Legs: 1
Safe Working Load: 1.50Tonnes
Standard: BSEN818-4:1996+A1:2008
Supplied with Relevant Certificates

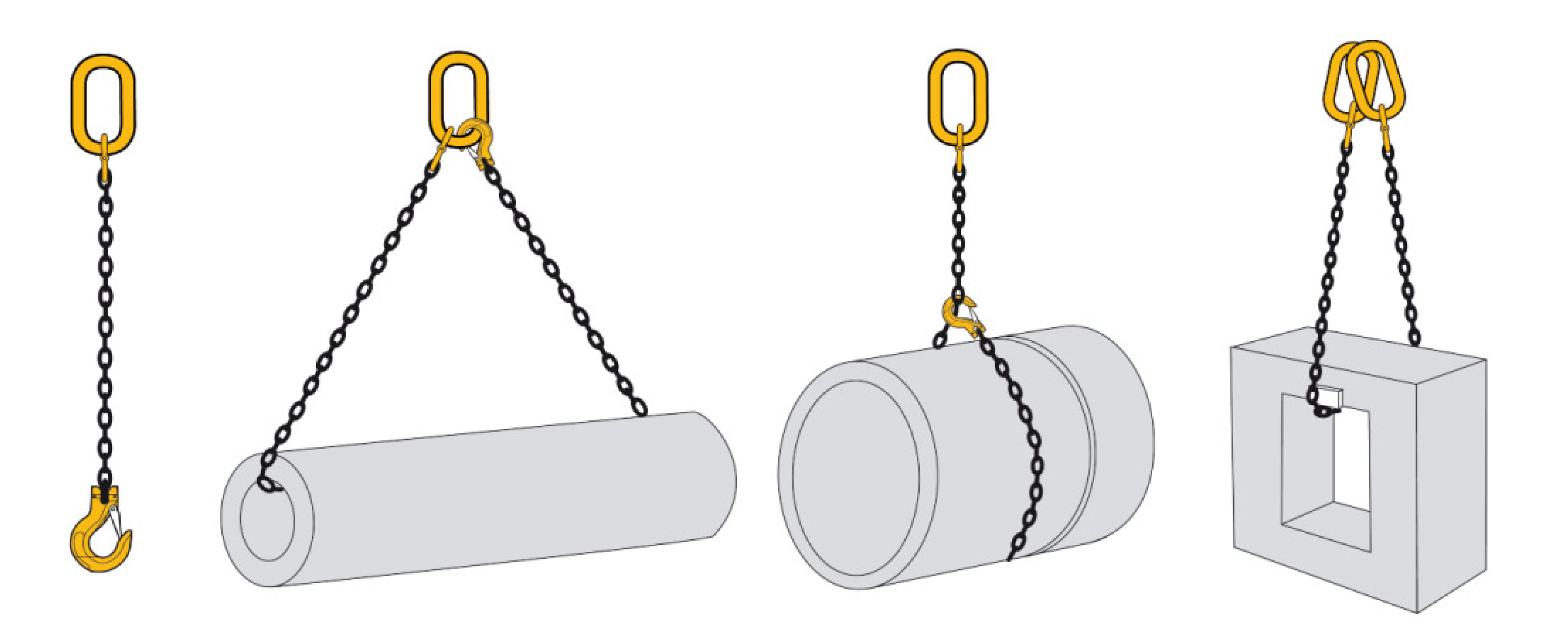

Chain Size mm | Straight Lift | Single Leg in Basket Hitch (back hooked into top link) | Choke Hitch | Basket Hitch |
7mm | 1.5 | 1.5 | 1.2 | 2.1 |
8mm | 2.0 | 2.0 | 1.6 | 2.8 |
10mm | 3.15 | 3.15 | 2.5 | 4.25 |
13mm | 5.3 | 5.3 | 4.2 | 7.5 |
16mm | 8.0 | 8.0 | 6.4 | 11.2 |
20mm | 12.5 | 12.5 | 10.0 | 17.0 |
22mm | 15.0 | 15.0 | 12.0 | 21.2 |
26mm | 21.2 | 21.2 | 17.0 | 30.0 |
32mm | 31.5 | 31.5 | 25.2 | 45.0 |
Chain Size mm | Straight Lift | Single Leg in Basket Hitch (back hooked into top link) | Choke Hitch | Basket Hitch |
7mm | 1.5 | 1.5 | 1.2 | 2.1 |
8mm | 2.0 | 2.0 | 1.6 | 2.8 |
10mm | 3.15 | 3.15 | 2.5 | 4.25 |
13mm | 5.3 | 5.3 | 4.2 | 7.5 |
16mm | 8.0 | 8.0 | 6.4 | 11.2 |
20mm | 12.5 | 12.5 | 10.0 | 17.0 |
22mm | 15.0 | 15.0 | 12.0 | 21.2 |
26mm | 21.2 | 21.2 | 17.0 | 30.0 |
32mm | 31.5 | 31.5 | 25.2 | 45.0 |
All Loads shown in Tonnes
