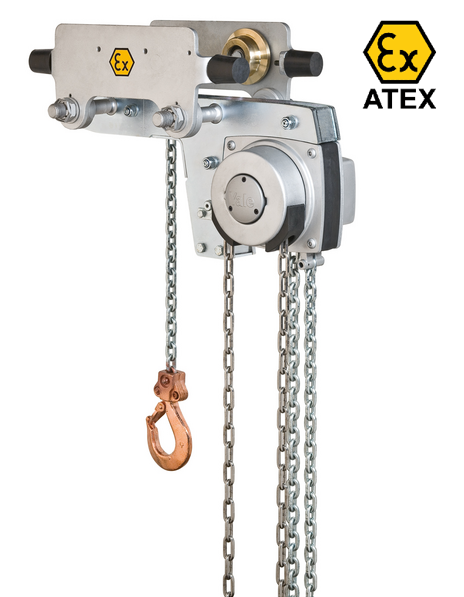

ATEX Yale Low Headroom Yalelift 360 LH Hand Chain Hoist with integrated Push or Geared travel trolley

Frequently bought together

On Sale

ATEX Yale Low Headroom Yalelift 360 LH Hand Chain Hoist with integrated Push or Geared travel trolley

From: £1,907.86Ex. VAT ~~£2,244.54~~

The ATEX Yalelift LH low headroom hand chain hoist with integrated manual trolley has been specifically designed for use in potentially explosive atmospheres. It represents the consistent further development of the standard Yalelift LH, offering maximum safety and reliability in hazardous areas where reduced headroom is essential.

Available with either push or geared travel trolley and optional chain container.
Capacity: 500 - 10000kg
All units of this series up to a capacity of 3000 kg are built with a single chain fall
Anti-drop and anti-tilt devices as standard

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

Low Headroom ATEX Hand Chain Hoist with Integrated Push or Geared Travel Trolley

Capacities: 500 – 10000 kg

Certified for use in ATEX classified zones, this model is available with either push or geared travel trolley and can be supplied with an optional chain container. It is the ideal solution for operations requiring compact design combined with explosion protection.

ATEX certified for hazardous areas – Safe use in potentially explosive atmospheres
The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
All units of this series up to a capacity of 3000 kg are built with a single chain fall.
The approved and almost stepless adjustment system of the trolley enables the simple and quick assembly due to adjusting nuts.
Trolleys up to 5 t capacity are offered for two beam ranges; range A for a flange width of up to 180 mm is standard and covers approx. 80 % of all applications. Conversion to range B for beam width up to 300 mm can be easily accomplished.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings.
The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
Anti-drop and anti-tilt devices as standard.
Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.

Yalelift_360_LH_-_Datasheet_English.pdf

Dimensions	YL LH 500	YL LH 1000	YL LH 2000	YL LH 3000	YL LH 5000	YL LH 10000
A min, mm	188	211	264	316	425	565
A1, mm	223	250	289	346	345	365
A2, mm	381	427	511	614	612	665
B, mm	17	22	30	38	45	68
C, mm	24	29	35	40	47	68
D, mm	14	19	22	30	37	50
F(Geared trolley), mm	92	92	91	107	150	150
H1, mm	24	24	24	32	31	45
I (Push trolley), mm	72	72	96	131	143	-
I (Geared trolley), mm	77	77	98	133	149	170
L, mm	270	310	360	445	525	485
L1, mm	130	130	150	180	209	225
L2, mm	444	488	582	690	720	805
L3, mm	124	135	172	203	175	215
L4, mm	184	201	230	265	283	348
M, mm	M 18	M 22	M 27	M 30	M 42	M 48
O, mm	60	60	80	112	125	150
P (Geared trolley), mm	108	110	112	112	117	165
T (Area A), mm	280	290	305	320	364	440
T (Area B), mm	400	410	425	440	484	540

ATEX Yalelift LHP Hand chain hoist with integrated push trolley

Model	Art.-No.	Capacity (kg) / Chain Falls	Size	Beam Flange Width (mm)	Beam Flange Thickness Max (mm)	Curve Radius Min (m)	Weight at 3m HOL (kg)
YLLHP 500	N05600134	500 / 1	A	60 – 180	19	0.9	27
YLLHP 1000	N05600135	1000 / 1	A	70 – 180	19	0.9	35
YLLHP 2000	N05600136	2000 / 1	A	82 – 180	19	1.15	61

ATEX Yalelift LHG Hand chain hoist with integrated geared trolley

Model	Art.-No.	Capacity (kg) / Chain Falls	Size	Beam Flange Width (mm)	Beam Flange Thickness Max (mm)	Curve Radius Min (m)	Weight at 3m HOL (kg)
YLLHG 500	N05600137	500 / 1	A	60 – 180	19	0.9	31
YLLHG 1000	N05600138	1000 / 1	A	70 – 180	19	0.9	40
YLLHG 2000	N05600139	2000 / 1	A	82 – 180	19	1.15	65
YLLHG 3000	N05600140	3000 / 1	A	100 – 180	19	1.5	112
YLLHG 5000	N05600141	5000 / 2	A	110 – 180	27	2	157
YLLHG 10000	N05600142	10000 / 3	B	190 – 310	40	1.8	232
