The BS Self Colour Large Bow Shackle is a heavy-duty lifting and rigging connector designed for demanding industrial applications.
- Material: Body and pin High tensile Steel

- Safety Factor: MBL equals 5 x WLL

- Supplied with relevant certificates

Hire Me

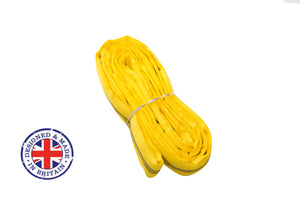

3000KG Endless Roundslings

From: £7.30Ex. VAT

Hire from £4.00

Our endless roundslings provide a strong, flexible, and lightweight lifting solution designed for a wide range of lifting applications. Manufactured in the UK using high-tenacity polyester yarns enclosed within a durable woven sleeve, these slings offer excellent strength while maintaining exceptional flexibility and ease of handling.

- Capacity 3000Kg

- Manufactured to BS EN 1492-1:2000+A1

- Safety Factor 7 to 1

- Manufactured from high tenacity polyester fibre, protected by a durable polyester tubing.

Total: £0.00

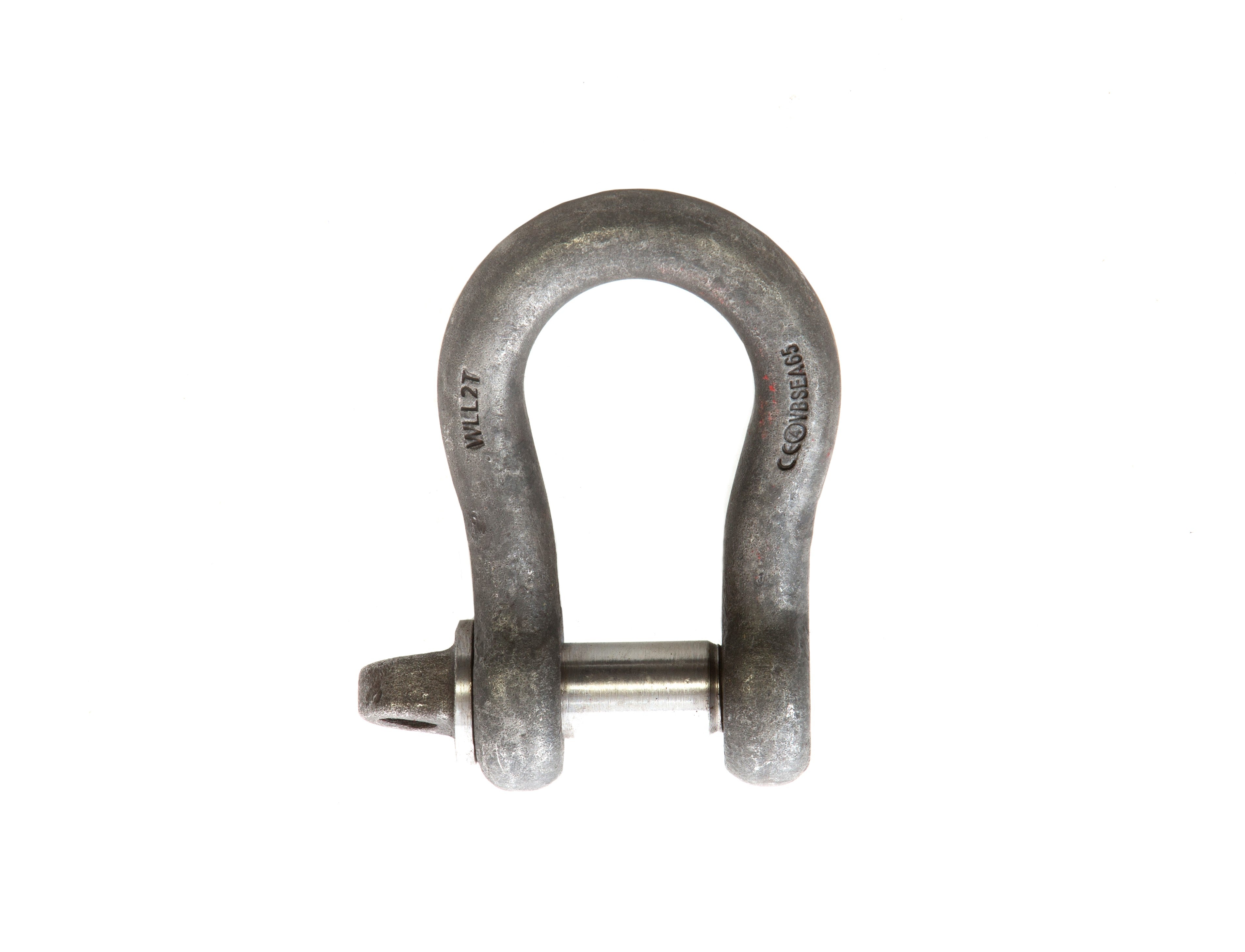

BS Self Colour Large Bow Shackle

The BS Self Colour Large Bow Shackle is a heavy-duty lifting and rigging connector designed for demanding industrial applications. Manufactured from high tensile steel, with both body and pin engineered for strength and durability, this shackle provides reliable performance in lifting, towing, and load-securing operations.

Produced generally in accordance with BS 3032 Table 2 (1958), the large bow profile allows for greater flexibility when connecting multiple slings or attachments, making it ideal for complex rigging configurations. The shackle is designed with a 5:1 safety factor, where the Minimum Breaking Load (MBL) equals five times the Working Load Limit (WLL), offering a high level of operational safety.

Finished in self colour, the shackle allows for easy visual inspection, helping users quickly identify wear, damage, or deformation during routine checks. Each shackle is supplied with relevant certification, supporting compliance with lifting regulations and on-site safety requirements.

Suitable for use across construction, engineering, marine, and general lifting environments, this large bow shackle is a dependable choice where strength, compliance, and durability are essential.

Material: Body and pin High tensile Steel
Safety Factor: MBL equals 5 x WLL
Standard: Generally to BS3032 table 2 - 1958 Finish: Self Colour
Certificates: Supplied with relevant certificates

Product_information_e6b7ac87-32b7-4cc2-96dd-1ee88701c7bd.pdf

Working Load Limit	Diameter Bow	Diameter Pin	Diameter Eye	Inside Width	Inside Length	Weight Each
tons	a itch	b inch	c inch	d inch	e inch
0.15	1/4	3/8	3/4	1/2	1.1/8	0.08
0.45	3/8	1/2	1	5/8	1.5/8	0.18
0.75	1/2	5/8	1.1/4	7/8	2.1/8	0.34
1.25	5/8	3/4	1.1/2	1.1/8	2.3/4	0.65
2.00	3/4	7/8	1.3/4	1.3/8	3.3/8	1.08
2.75	7/8	1	2	1.5/8	3.7/8	1.80
3.75	1	1.1/8	2.1/4	1.3/4	4.1/4	2.46
4.75	1.1/8	1.1/4	2.1/2	2	4.7/8	3.47
5.75	1.1/4	1.3/8	2.3/4	2.1/4	5.3/8	4.56
7.25	1.3/8	1.1/2	3	2.1/2	6	6.07
8.50	1.1/2	1.3/4	3.1/2	2.3/4	6.5/8	8.35
9.50	1.5/8	1.7/8	3.3/4	3	7.3/8	11.81
11.50	1.3/4	2	4	3.3/8	8.1/8	14.32
13.00	1.7/8	2.1/8	4.1/4	3.5/8	8.3/7	17.03
15.00	2	2.1/4	4.1/2	3.7/8	9.3/8	20.00

Hire Me

BS Self Colour Large Bow Shackle

Name: BS Self Colour Large Bow Shackle
Brand: Rope & Marine Services
SKU: LBS-1-3
Price: 5.95 GBP
Availability: InStock

From: £5.95Ex. VAT

Est. lead time to dispatch: Same Day Before 1pm

The BS Self Colour Large Bow Shackle is a heavy-duty lifting and rigging connector designed for demanding industrial applications.
- Material: Body and pin High tensile Steel

- Safety Factor: MBL equals 5 x WLL

- Supplied with relevant certificates
