Camlok 92 Series Standard plate clamps with safety lock

From: £183.13Ex. VAT ~~£203.48~~

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.

Capacities from 50 to 3000 kg
Lift plate thicknesses from 0 to 32 mm
Available with hook ring, link, and link & chain connections

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

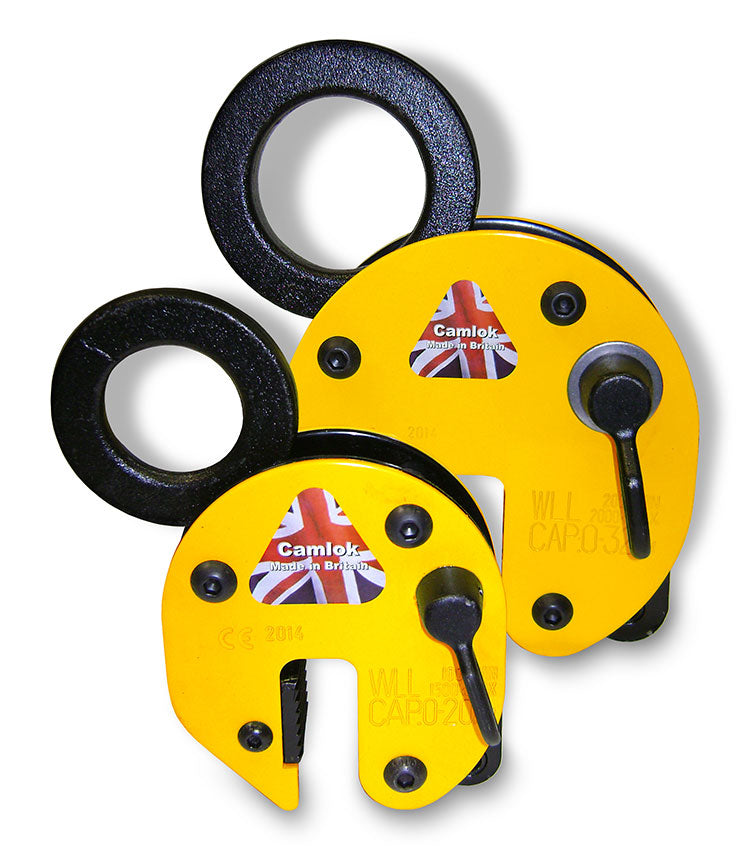

Standard plate clamps with safety lock

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°. They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long materials which have a tendency to sag or flex.

Function

The jaw is opened and closed with the locking lever except for the 92-500 which uses a positive spring-loaded cam. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs are available through the factory, or can be done by a competent person. The 92-500 is equipped with positive spring-loaded cam, but comes without locking lever.

NB: The plate surface of the material must have a hardness level below HRC 30/Brinell 300.

Catalogue.pdf

Model	WLL kg	Jaw (Z) Capacity mm	Weight kg
92-500	50 - 500	0 - 16	1.5
92-1500	100 - 1500	0 - 20	3
92-2000	200 - 2000	0 - 32	8
92-3000	300 - 3000	0 - 32	12

Model	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	I mm
92-500	99	195	29	33	47	50	48	11	15
92-1500	126	225	50	49	70	82	55	13	20
92-2000	192	312	80	75	96	100	81	20	24
92-3000	192	320	80	75	96	100	81	30	30

On Sale

Camlok 92 Series Standard plate clamps with safety lock

Name: Camlok 92 Series Standard plate clamps with safety lock
Brand: Camlok
SKU: 92VPC-3230-1
Price: 183.13 GBP
Availability: InStock

From: £183.13Ex. VAT ~~£203.48~~

Est. lead time to dispatch: 1 Day

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.

Capacities from 50 to 3000 kg
Lift plate thicknesses from 0 to 32 mm
Available with hook ring, link, and link & chain connections
