Camlock TCS Universal Turning Hooks

From: £347.85Ex. VAT ~~£386.50~~

The TCS coil turning hooks are specifically designed to pick coils of steel or banding material when lying flat.

Capacity 500 - 3000 kg
Coil automatically transfers from the horizontal to vertical position once the crane hook is raised
This allows for easy transportation and also allows for loading onto machines or racking.

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

TCS Turning Hooks

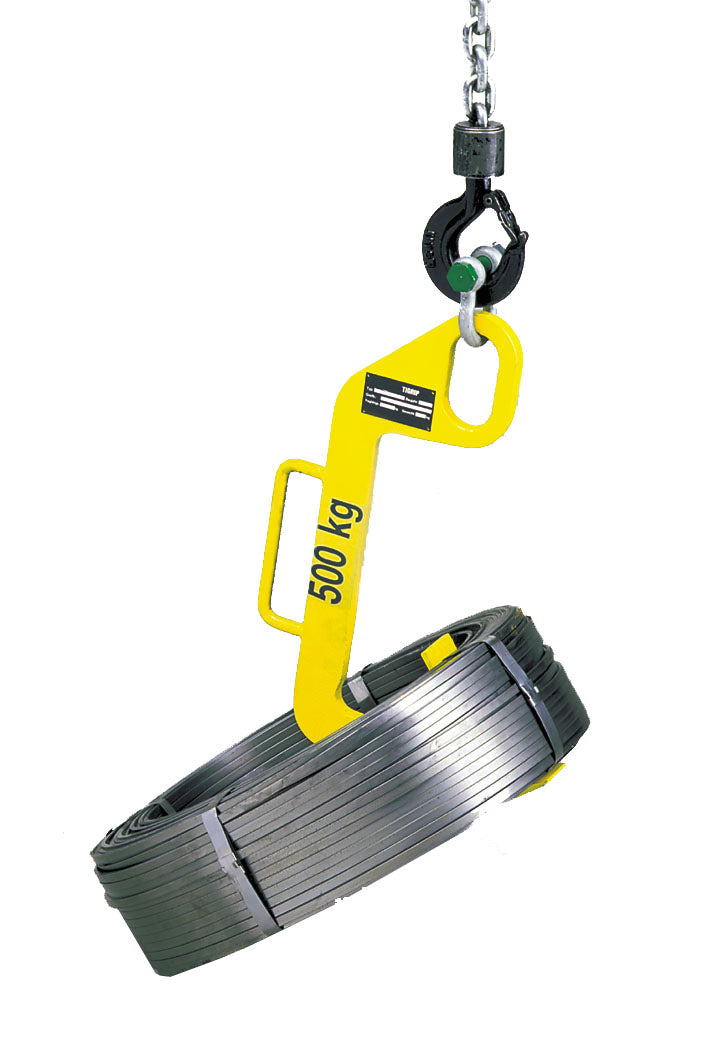

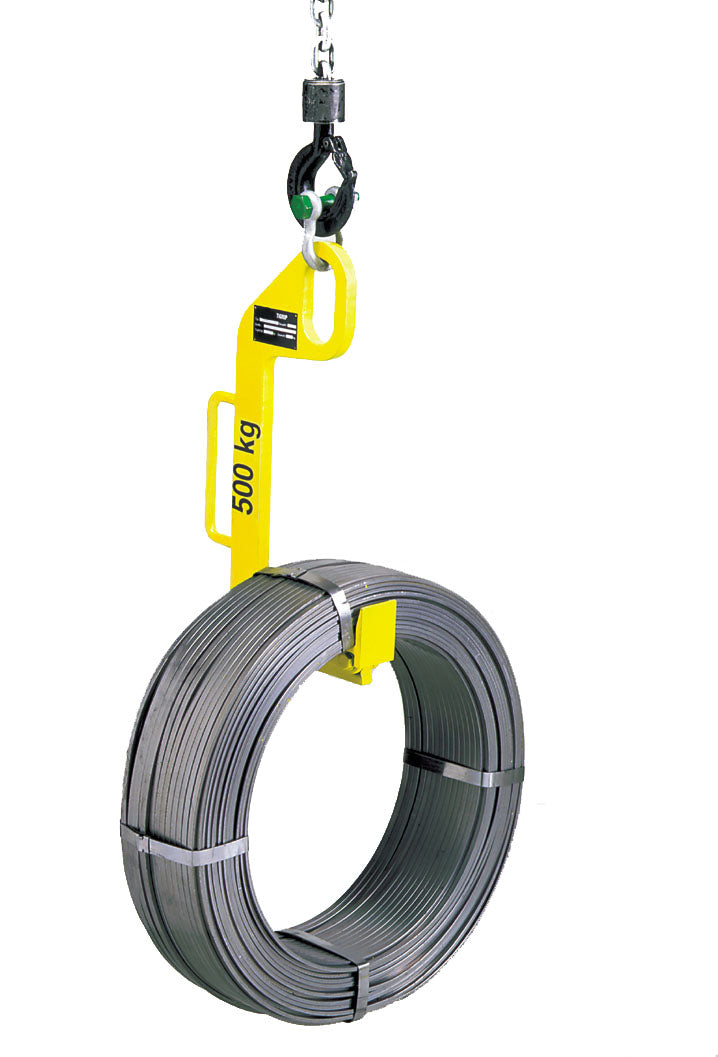

The TCS coil turning hooks are specifically designed to pick coils of steel or banding material when lying flat. Once the turning hook is positioned and the crane hook is raised, the coil automatically transfers from the horizontal position to the vertical position. This allows for easy transportation and also allows for loading onto machines or racking.

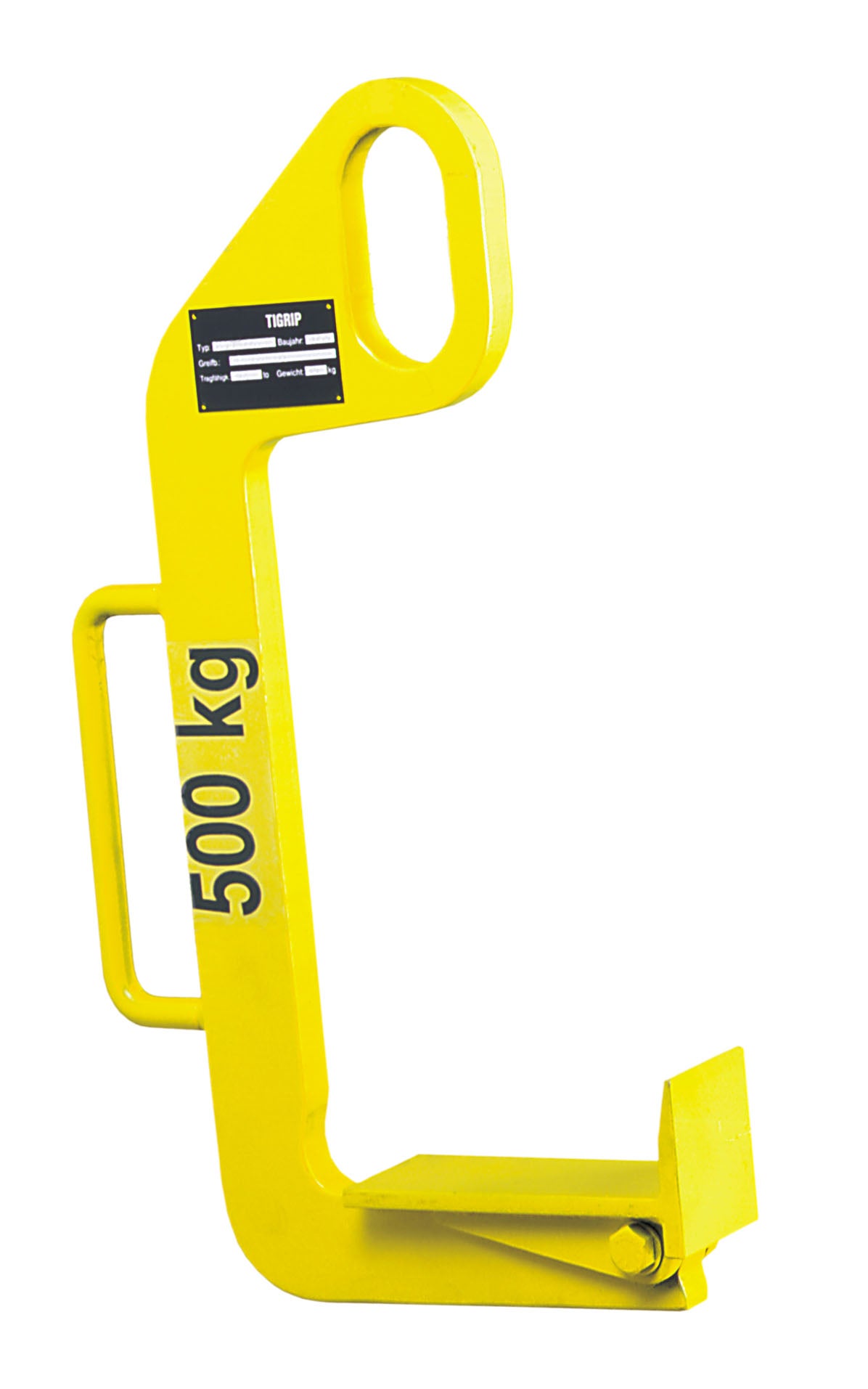

The TCS Coil Hook is a universal C-Hook.
The slow and safe movement of the tipping device ensures a continuous flowing movement when lifting the coil. At the same time, the tipping device serves the purpose of preventing accidental slipping of the load during transport.
With this tipping device, the coil is tipped safely through 90°.
Once the turning hook is positioned and the crane hook is raised, the coil automatically transfers from the horizontal position to the vertical position.
This allows for easy transportation and also allows for loading onto machines or racking.

Camlok_TCS_datasheet.pdf

Model	Type	WLL (kg)	Coil (mm)	Min Internal Diameter (mm)	Weight (kg)
TCS 0.5/120	A	500	50-120	220	9
TCS 0.5/200	B	500	100-200	300	10
TCS 1.0/200	A	1000	100-200	300	13
TCS 1.0/300	B	1000	200-300	400	15
TCS 2.0/200	A	2000	100-200	300	21
TCS 2.0/300	B	2000	200-300	400	23
TCS 3.0/200	A	3000	100-200	300	34
TCS 3.0/300	B	3000	200-300	400	39

Model	A (mm)	1 (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)
TCS 0.5/120	50-120	220	470	60	330	110	60	20	20	45
TCS 0.5/200	100-200	300	470	60	330	110	60	20	20	50
TCS 1.0/200	100-200	300	600	60	460	110	80	25	20	65
TCS 1.0/300	200-300	400	600	60	460	110	80	25	20	70
TCS 2.0/200	100-200	300	600	75	420	135	90	30	30	85
TCS 2.0/300	200-300	400	600	75	420	135	90	30	30	95
TCS 3.0/200	100-200	300	820	90	610	160	100	35	40	100
TCS 3.0/300	200-300	400	820	90	610	160	100	35	40	110

On Sale

Camlock TCS Universal Turning Hooks

Name: Camlock TCS Universal Turning Hooks
Brand: Camlok
SKU: TCS-1-0
Price: 876.38 GBP
Availability: InStock

From: £347.85Ex. VAT ~~£386.50~~

Est. lead time to dispatch: 2-3 Weeks

The TCS coil turning hooks are specifically designed to pick coils of steel or banding material when lying flat.

Capacity 500 - 3000 kg
Coil automatically transfers from the horizontal to vertical position once the crane hook is raised
This allows for easy transportation and also allows for loading onto machines or racking.

MODEL | WORKING LOAD LIMIT
