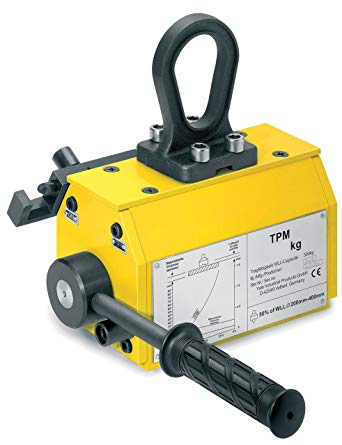

TPM Permanent lifting magnet

Capacity: 100 - 3000 kg (Flat material); 50 - 1500 kg (Round material)

TPM lifting magnets are ideal tools for easy, quick and thus economical transport of heavy objects made of ferro-magnetic material. Typical operating areas are workshops and warehouses, loading and unloading of machines as well as construction of jigs and fixtures.

Compact design of the units for a large number of applications.

The load is not affected mechanically which allows lifting of flat as well as round material. The efficient magnet body provides strong lifting capacity at low dead weight. The permanent magnets do not require electric energy and will leave only minor residual magnetism on the material after use.

The magnets are activated/deactivated easily by turning a locking lever. In activated condition the hand lever will be safely locked and thus prevent unintended
demagnetising.

The selection of the appropriate magnet model should be made under consideration of the varying conditions of the contact surface, kind of material alloy and plate thickness/
bar diameter (see table).

In order to achieve a maximum capacity, the contact surface should be bright and free from dirt, oil, grease, scale, corrosion, paint etc.
Maximum lifting capacity is achieved by using mild steels with the noted minimum thickness.
Mild steel st37 - Fe 360 to BS EN 10 025 1990
(DIN 17100)

tpm-operating-manual-2020-11-05.pdf

Model	Flat material- Max Capacity WLL KG*8	Flat material - Min thickness to obtain max. WLL mm**	Flat material -MAX length of material mm	Round Material - Max capacity WLL kg **	Round material - Diameter mm	Round material - Max length of material mm	Tear off force kg	Weight kg
TPM 0.1	100	14	2000	50	40 - 300	2000	300	5.3
TPM 0.3	300	20	2500	150	60 - 300	2500	900	13.5
TPM 0.5	500	24	3000	250	60 - 400	3000	1500	27.5
TPM 0.8	800	34	3500	400	60 - 400	3500	2400	52
TPM 1.0	1000	40	3500	500	80 - 400	3500	3000	57
TPM 2.0	2000	55	3500	1000	100 - 400	3500	6000	125
TPM 3.0	3000	65	3500	1500	200 - 500	3500	9000	195

*Measured on bright drawn material S235 JR (ST37), air gap < 0,1mm

Model	A mm	B mm	C mm	D mm
TPM 0.1	122	69	185	160
TPM 0.3	192	95	225	250
TPM 0.5	232	120	270	250
TPM 0.8	302	154	320	450
TPM 1.0	332	154	320	450
TPM 2.0	392	196	420	450
TPM 3.0	497	220	453	600
