Yale CPS 110v, 230v & 400v Electric chain hoist

Frequently bought together

On Sale

Yale CPS 110v, 230v & 400v Electric chain hoist

From: £1,277.47Ex. VAT ~~£1,502.91~~

The CPS electric chain hoist can lift loads up to 250kg - yet weighs from only 12kg.

Capacity 125 or 250 kg
Lifting speed 2 - 10 m/min
1 or 2 chain fall

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

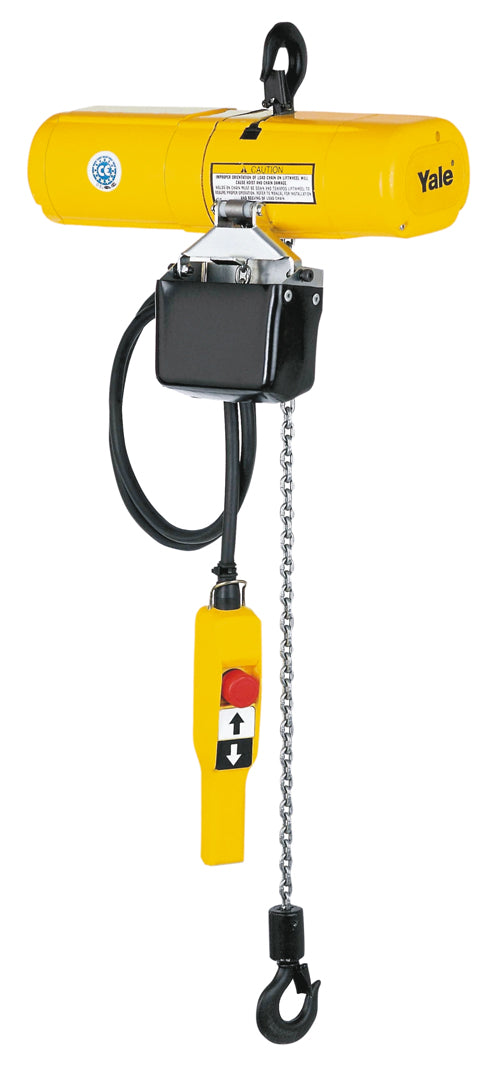

CPS Electric chain hoist

The CPS electric chain hoist can lift loads up to 250kg - yet weighs from only 12kg.

With an M4 high duty rating, the rugged CPS electric chain hoist keeps lifting and lifting - up to 240 motor starts per hour. It’s easy to install and maintain, making it ideal for maintenance, jib and light crane systems.

The CPS electric chain hoist is built to the highest standards (just like all Yale products) and offers unequalled levels of build quality and reliability. Our one year warranty, repair and full after-sales service will allow you to recommend this excellent product with confidence.

Features

Easy installation and maintenance.
IP54 as standard.
48v Control voltage.
Overload protection device as standard.
10-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed and reduced chain wear.
Optional impact-resistant chain container.
Gear train lifetime lubricated with non-oxidising grease.
Alloy load chain for smooth operation and maximum chain life.
Thermally protected hoist duty motor.
Rugged cast aluminium alloy hoist frame.
5 : 1 factor of safety.
Small, compact design for commercial applications.
Rigid latch-style upper hook prevents tangling of power cord.
Hardened forged steel latch-style lower hook rotates 360° to prevent chain twist.
Totally enclosed non-ventilated hoist frame protects the motor from environmental contamination.
Precision bearings used in the hoist.
Single phase models
Lightweight and portable.

cps-electric-chain-hoist_ds.pdf

Model	Capacity	Supply	Lifting Speed	ED Duty	Weight
CPS 110/1-4	125kg	110v 1ph 50hz	4 m/m	40%	12kg*
CPS 230/1-4	125kg	230v 1ph 50hz	4 m/m	40%	12kg*
CPS 400/1-4	125kg	400v 3ph 50hz	4 m/m	40%	12kg*
CPS 400/1-10	125kg	400v 3ph 50hz	10 m/m	40%	12kg*
CPS 110/2-2	250kg	110v 1ph 50hz	2 m/m	40%	14kg*
CPS 230/2-2	250kg	230v 1ph 50hz	2 m/m	40%	14kg*
CPS 400/2-2	250kg	400v 3ph 50hz	2 m/m	40%	14kg*
CPS 400/2-5	250kg	400v 3ph 50hz	5 m/m	40%	14kg*

*Above prices are based on a standard 3mtr HOL, with 2mtr pendant.
Load chain: 4 x 12mm.
Chain bags are not included as standard.
Raincoat available on request, please contact sales.

Rated Capacity	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	j mm	k mm	l mm	m mm	n mm
125kg	14	103	21	22	159	98	276	53	75	76	225	150	375
250kg	14	103	21	22	159	98	304	53	60	89	225	150	375
