Yale ERGO 360 Ratchet Lever Hoist

From: £483.49Ex. VAT ~~£568.81~~

Redefining lever-operated hoists, the Yale ERGO features the revolutionary crank handle that allows for efficient operation in both lifting and pulling applications.

Capacity 750 - 9000kg
The aluminium housing with powder coating offer a long service life
Display of the operating direction in the viewing window of the hand lever

Hire Me

1000KG Endless Roundslings

From: £4.95Ex. VAT

Hire from £2.70

Our endless roundslings provide a strong, flexible, and lightweight lifting solution designed for a wide range of lifting applications. Manufactured in the UK using high-tenacity polyester yarns enclosed within a durable woven sleeve, these slings offer excellent strength while maintaining exceptional flexibility and ease of handling.

- Capacity 1000Kg

- Manufactured to BS EN 1492-1:2000+A1

- Safety Factor 7 to 1

- Manufactured from high tenacity polyester fibre, protected by a durable polyester tubing.

Total: £0.00

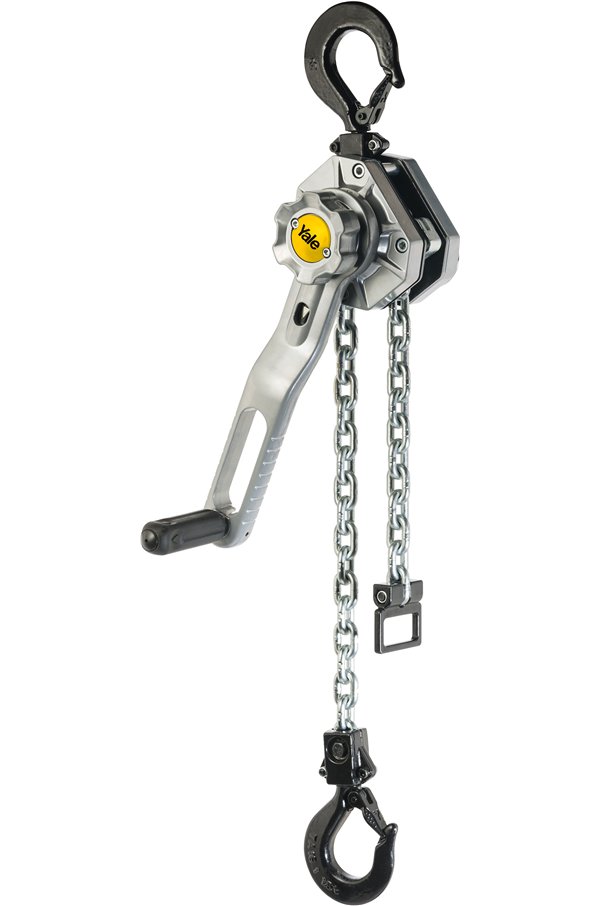

Yale ERGO 360

Redefining lever-operated hoists, the Yale ERGO features the revolutionary crank handle that allows for efficient operation in both lifting and pulling applications. Ergonomically designed for increased safety, the patent-pending Yale ERGO 360 lets the operator work up to 12 times faster and with as much as 30% less effort than with conventional ratchet lever tools.

CRANK HANDLE
First-of-its-kind lever handle design will revolutionise the ratchet lever hoist industry. Unique foldable lever handle and 360° rotating action increases productivity while reducing risk of operator injury.
CONVENIENT DIRECTIONAL INDICATOR
Easy-to-use, highly visible directional indicator on the handle clearly shows operating direction as lifting, lowering or neutral.
EASY & SMOOTH FREE CHAINING
Quick take up and positioning of slack chain – even with one hand. Designed not to accidentaly free chain while under load. Cast chain end stop allows user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel.
POSITIVE LOAD CONTROL
Enclosed Weston-type brake for precise load positioning.
BUILT TO LAST
Lightweight aluminium housing withstands rigorous use and features high-quality, long-lasting bearings. Powder coat finish provides extra protection in harsh environments.
EXCELLENT CORROSION PROTECTION
Robust chain guide and chain stripper made from cast steel and zinc-plated for corrosion protection.
EASY-TO-INSPECT SWIVEL HOOKS
Bolt on hooks with nyloc nuts to simplify the inspection process. Hooks are forged, allowing them to yield under overload without breaking. Cast safety latches provide positive and secure load engagement.

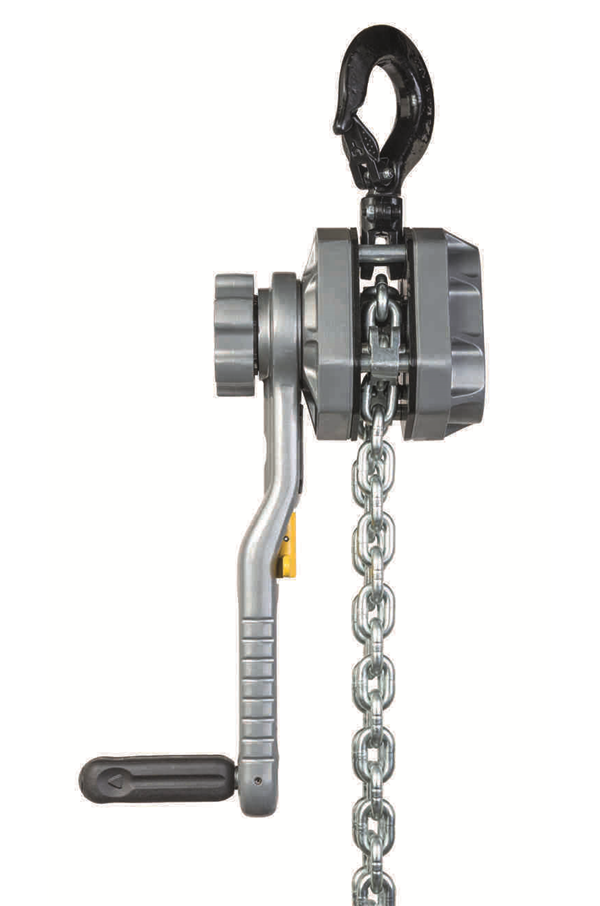

REVOLUTIONARY CRANK HANDLE

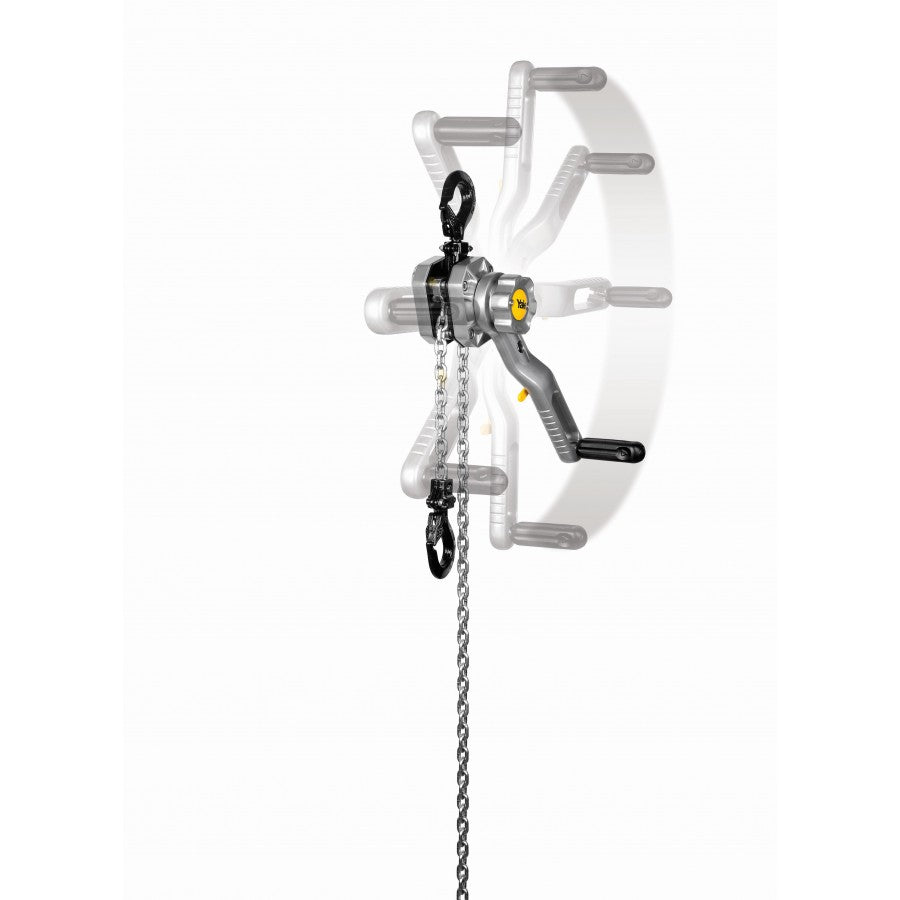

360° rotation increases efficiency, allowing operators to work up to 12 times faster than with a conventional ratchet lever hoist.
Requires 30% less effort to operate.

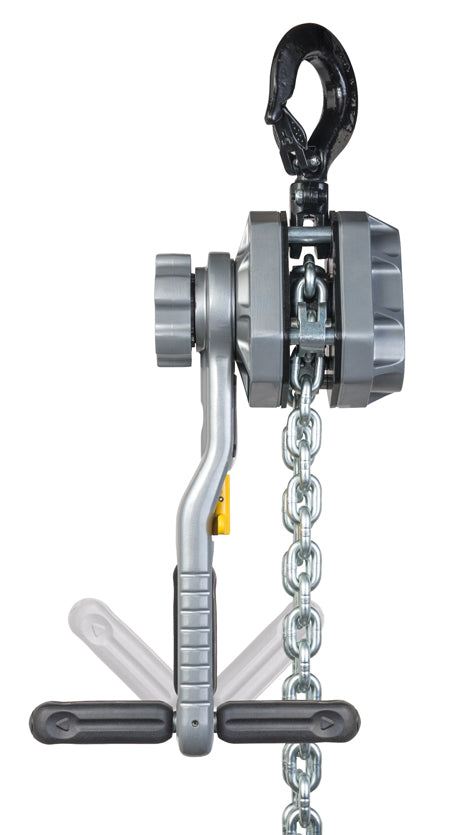

Easy and effective operation from any angle with handle that folds down and locks into position on either side of the lever.
Design keeps the operator’s body aligned with the load chain, reducing the risk of the twist effect – when a hoist twists around the chain. No need to use a second hand to stabilize the hoist.
Operator can securely grip the grooved, no-slip handle.
Crank handle made of durable polyamide with a heavy-duty steel core for rugged use.

Model	Art.-No.	Capacity kg	Number of chain falls	Chain dimensions p x b	Handle pull at WLL daN	Handle pull at WLL with crank kg	Weight at standard lift (1.5m) daN
YaleERGO 360 750	192028204	750	1	5.6 x 17.1 - T	21	20	6.7
YaleERGO 360 1500	192028202	1500	1	7.1 x 21 - T	31	24	9.6
YaleERGO 360 3000	192028553	3000	1	10 x 28 - V	43	35	17.2
YaleERGO 360 6000	192035451	6000	2	10 x 28 - V	46	37	28.9
YaleERGO 360 9000	192039362	9000	3	10 x 28 - V	50	41	49.5

Dimensions	YaleERGO 360 750	YaleERGO 360 1500	YaleERGO 360 3000	YaleERGO 360 6000	YaleERGO 360 9000
A min, mm	320	375	445	563	695
B, mm	20	26	37	45	68
C, mm	27	31	40	47	68
D, mm	18	21	28	35	50
E, mm	327	327	377	377	377
F, mm	300	300	350	350	350
G, mm	40	51	57	71	116
H, mm	81	96	123	162	199
J, mm	121	147	180	233	315
K, mm	56	69	86	86	86
L, mm	105	110	121	121	121
M, mm	161	179	207	207	207
N, mm	30	30	30	30	30
O, mm	120	120	120	120	120
P, mm	257	273	299	299	299
