UTILITY Yale ERGO 360 UT Ratchet Lever Version

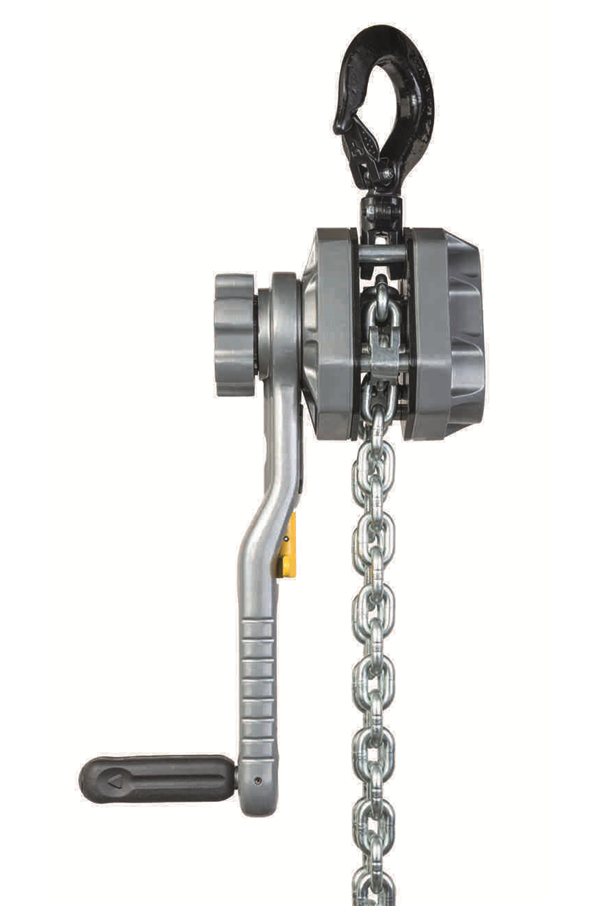

Yale ERGO 360 Ratchet Lever Hoist Utility Version

Frequently bought together

On Sale

UTILITY Yale ERGO 360 UT Ratchet Lever Version

From: £622.29Ex. VAT ~~£732.10~~

In accordance with EN 1808 - Safety requirements for suspended access equipment, 8.9.2, the new YaleERGO UT is supplied fitted with an automatically acting safety device, which offers even more security when used in overhead line construction or similar areas.

Capacity 1500 - 9000 kg
Automatically acting safety gear
Excellent Corrosion Protection

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

Yale ERGO 360 Utility Version

Special applications such as overhead line construction require specialist lifting equipment.

The innovative safety device, patent-pending, which prevents a sudden load drop or run through works when a certain speed is exceeded during use as well as during inactive phases - especially when the device has been left under tension for long periods of time

The system safely absorbs the load after only 25-50mm of chain movement preventing the creation of larger dynamic forces which could cause further damage.

Another highlight is the possibility of being able to lift at any time - even after the safety device has been triggered. By simply turning the hand lever a full turn in the lift direction, the safety device is automatically unlocked. It can then be returned to its original position at the push of a button. This means that the device can be removed and checked at any time with minimal effort and/or downtime.

AUTOMATICALLY ACTING SAFETY GEAR

The YaleERGO 360 ® UT has a unique, automatically locking safety device to prevent a sudden drop (patented). It guarantees permanent monitoring and is active during operation as well as during inactive moments without the user having to activate it. In case of emergency, i.e. after failure of the load pressure brake and consequently exceeding the specified speed, the safety gear will automatically activate. It safely absorbs the load, preventing the creation of larger dynamic forces which could cause further damage. Due to its design, the device remains in a safe state even in the event of an error (e.g. rusted ratchet pawl, broken springs or other influences such as basic corrosion or dirt).

EXCELLENT CORROSION PROTECTION

A housing optimized for outdoor applications (incl. water drainage holes on all sides) prevents a build up of water and the influence of moisture in extreme conditions (e.g. rain, fluctuations in temperature). External components such as the chain guide and the stripper are zinc plated. Some of the internal moving parts such as the drive pinion, the ratchet pawl, the load chain wheel and the ratchet are MKS coated (Zinc flake coating).

Model	Art.-No.	Capacity kg	Number of chain falls	Chain dimensions p x b	Handle pull at WLL daN	Handle pull at WLL with crank kg	Weight at standard lift (1.5m) daN
YaleERGO 360 UT 1500	192069625	1500	1	7.1 x 21 - T	31	24	9.8
YaleERGO 360 UT 3000	192069671	3000	1	10 x 28 - V	43	35	18.1
YaleERGO 360 UT 6000	192071416	6000	2	10 x 28 - V	46	37	29.8
YaleERGO 360 UT 9000	192083321	9000	3	10 x 28 - V	50	41	50.4

Dimensions	YaleERGO 360 UT 1500	YaleERGO 360 UT 3000	YaleERGO 360 UT 6000	YaleERGO 360 UT 9000
A min, mm	375	445	563	695
B, mm	26	37	45	68
C, mm	31	40	47	68
D, mm	21	28	35	50
E, mm	327	377	377	377
F, mm	300	350	350	350
G, mm	51	57	71	116
H, mm	96	123	162	199
J, mm	147	180	233	315
K, mm	69	86	86	86
L, mm	124	136	136	136
M, mm	193	222	222	222
N, mm	30	30	30	30
O, mm	120	120	120	120
P, mm	287	314	314	314
