CLB and CLT Container lifting lugs

Two types are available dependant upon where you want to fasten them; to the side or the top of the container.

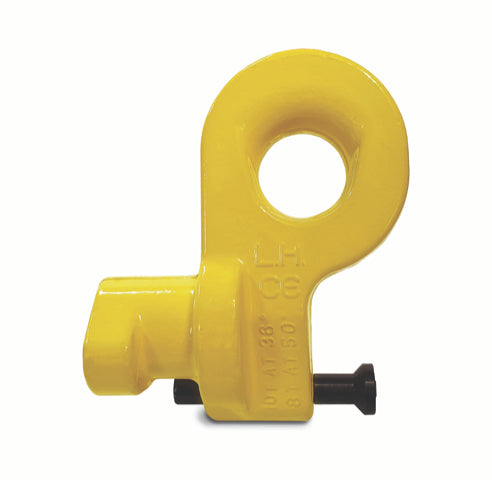

CLB
The CLB model is mounted horizontally to the side of
the container at either the top or the bottom fixing holes.
This model has a spring loaded bolt to prevent accidental
release.

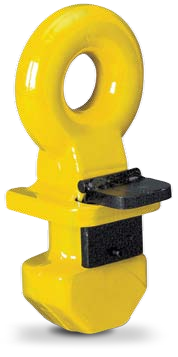

CLT
The CLT type is vertically mounted in the hole at the top
of the container and is locked into place by simply turning
the lug 90°.

This configuration allows for transportation
via the use of a lifting frame in conjunction with cables,
chains or slings.

CLT-CLB-MA-EN.pdf

Model	Capacity kg*	Type of lifting	Sling angle from vertical	weight kg*
CLB 32000	32000	side	50°	20
CLB 50000	50000	side	vertical	20
CLT 56000	56000	top	vertical	32

Model	A,mm	B,mm	ØC,mm	D,mm	E,mm	F,mm	G,mm	H,mm
CLB 32000	152	181	45	37	73	75	40	51
CLB 50000	152	181	45	37	73	75	40	51
CLT 56000	123	217	45	39	57	101	121	-

On Sale

CLB and CLT Container lifting lugs

From: £607.20Ex. VAT ~~£674.67~~

Est. lead time to dispatch: 2-3 Days

Capacities from 32000 to 56000 kg
Available in side- and top-lifting options
To be used in sets of 4
