Camlock TKG-VHS self weight balance crane forks

From: £1,344.68Ex. VAT ~~£1,494.09~~

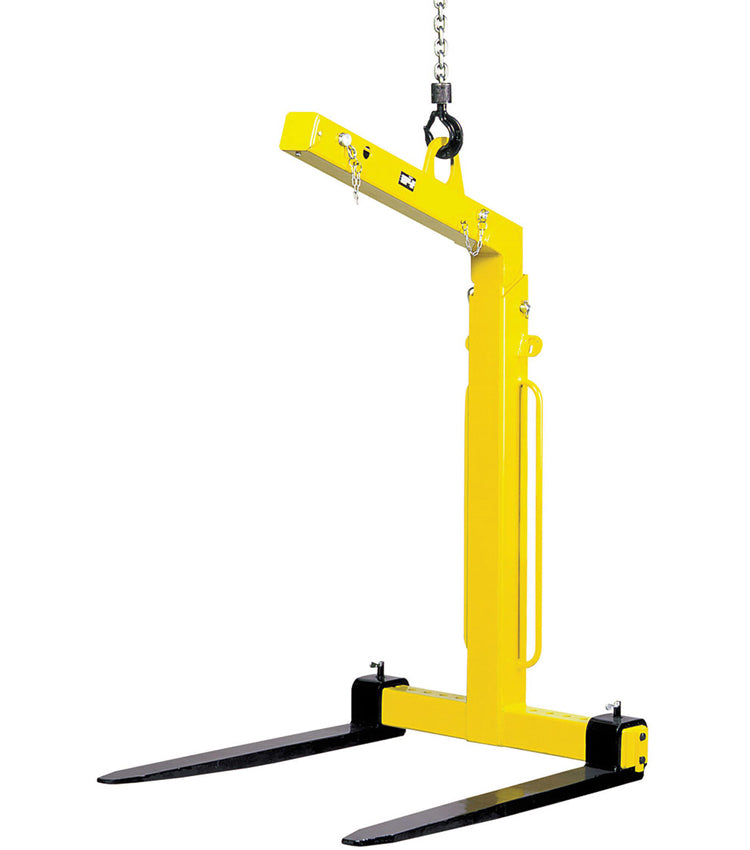

The TKG-VHS range of crane forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system.

Capacity 200 - 5000 kg
The shackle is movable and runs on a track depending on the load.
The automatic balancing engages by a pressurized gas spring once the forks are loaded. The load will always be in the center of gravity of the forks, ensuring a safe transport.

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

TKG-VHS

The TKG-VHS range of crane forks are equipped with adjustable tines, adjustable mast height and a self weight balancing system. Crane forks with self weight balancing* tend to point their tines upwards when being transported, this prevents the load from unintentionally slipping off the tines. The self weight balancing mechanism returns the lifting point to the unloaded position when the load is set down. For efficient operation of this mechanism the load must be greater than 20% of the working load limit.

Crane forks with automatic balancing* tend to point their tines upward when being transported. This prevents the load from unintentionally slipping off the tines.
The shackle is movable and runs on a track depending on the load.
The automatic balancing engages by a pressurized gas spring once the forks are loaded. The load will always be in the center of gravity of the forks, ensuring a safe transport.
All crane forks comply with the latest standards and CE-directives.
Safety factor 4:1.
Maintenance-free.
Highly visible safety colour.
For the transport of rings or coils, the fork tines are simply pushed together.
Easily adjustable tines for all pallet sizes.
For the transport of loads above persons (e.g. on construction sites) appropriate security measures against falling loads or parts must be taken.
The load must not exceed the fork length.

Technical_specification_405600e3-35a0-4423-8eee-4de1c53d9568.pdf

Model	WLL kg	Weight kg
TKG1.0vhs	200 - 1000	140
TKG2.0vhs	400 - 2000	220
TKG3.0vhs	600 - 3000	280
TKG5.0vhs	1000 - 5000	380

Model	Adjustment of tines (A) mm	Useable height (B) mm	Length of tines (C) mm	Section of tines (D) mm	Overall height (E) mm
TKG1.0vhs	350 - 900	1100 - 1600	1000	100 x 30	1420 - 1920
TKG2.0vhs	400 - 900	1300 - 2000	1000	120 x 40	1655 - 2355
TKG3.0vhs	450 - 900	1300 - 2000	1000	120 x 50	1720 - 2420
TKG5.0vhs	500 - 1000	1300 - 2000	1000	150 x 60	1710 - 2410
