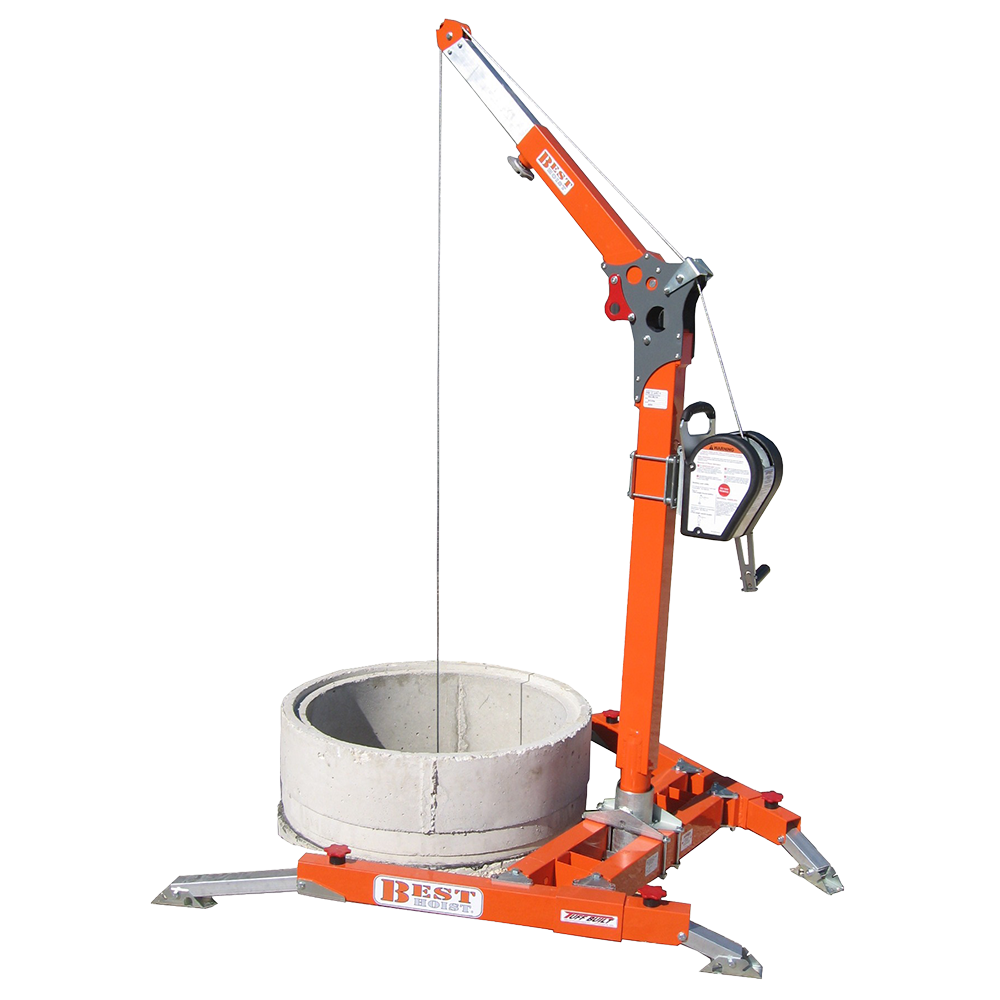

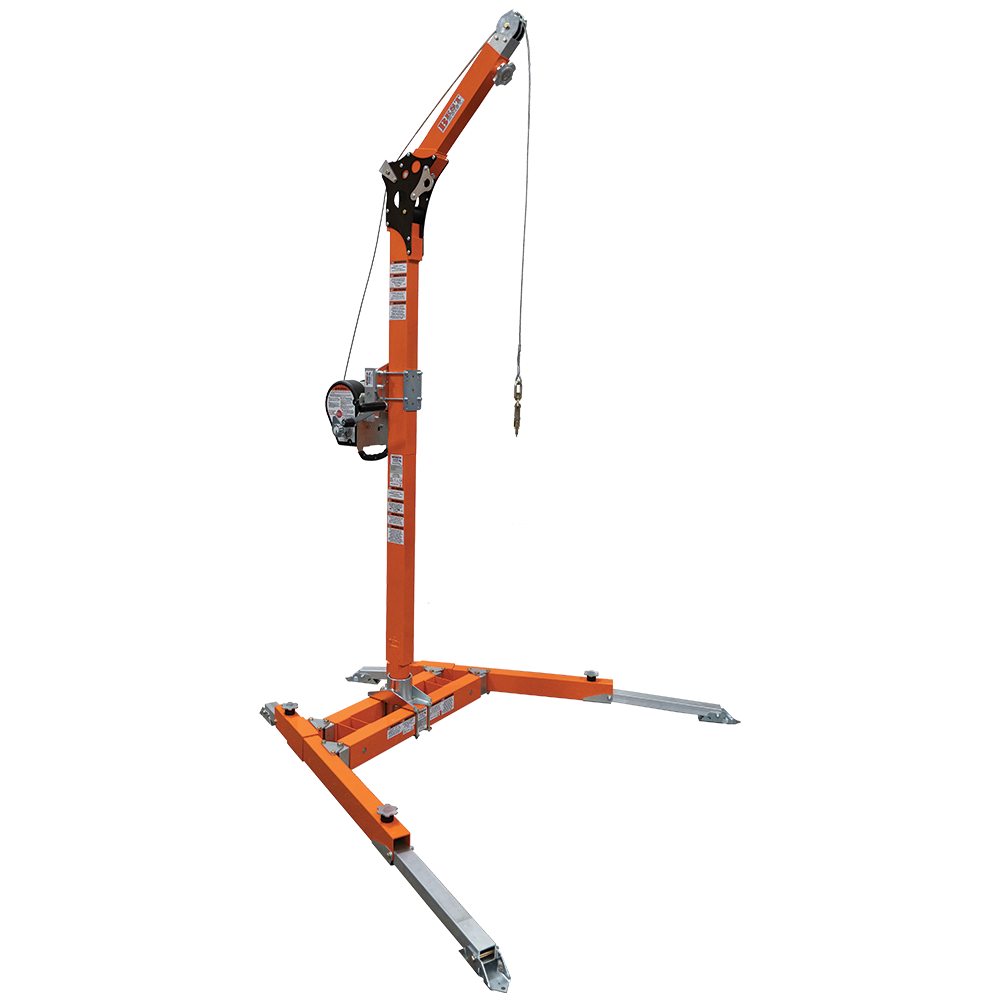

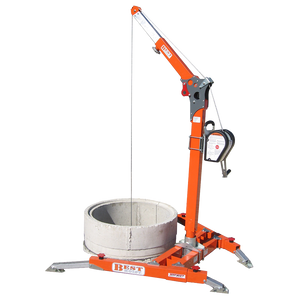

4-Piece Base Davit Kit | 30070KIT
The 30070KIT is a complete Pro-3 Series system built around a portable base, enabling confined space access without requiring permanent anchorage. With upper and lower mast sections and a winch system for personnel lifting, it is suitable for rotating between multiple job sites or short-term rescue installations.
The 30070 portable base has four independent support legs. The main support
legs can also be adjusted outward, so the base can “wrapped” around a hole with a 54”
to 75” diameter. The davit sleeve may also be moved left to right to allow rotating the davit
in rescue applications. To fit around holes with a diameter of 54”(138cm) - 75” (190cm)
| Product Code | 30070KIT |
|---|---|
| Conformance | EN795 TYPE B | EN1496 |
| Life Span | 10 years |
| Service | Various |
| Weight | 28kg (Base Only) |
| Includes | 30070 | 30105 | 30109 | 60005 | 60209 |
