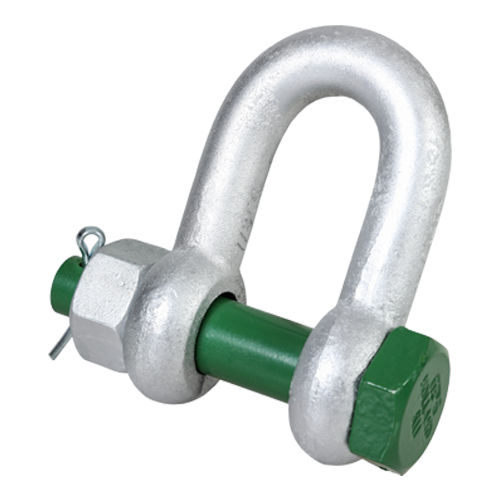

Green Pin® Dee Shackle BN

The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin® Bow Shackle BN. Of course, the Green Pin® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.

Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp. range: -40°C up to +200°C
Certification: 2.12.23.1MTCaDNV 2.7-1aDNV 2.7-1bDNVGL-ST-0378CEABS PDAABS MA
Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, Grade A

Green_Pin_Shackles_Technical_Brochure_e835dc4e-2b47-47c7-8e25-54b99d696a9e.pdf

Article code	WLL (TON)	diameter bow (mm) a	diameter pin (mm) b	diameter eye (mm) c	width eye (mm) d	width inside (mm) e	length inside (mm) f	length (mm) g	length bolt (mm) h	thickne ss nut (mm) i	Nett weight (Kg)
G41532T	2	13,5	16	34	13	22	43	81	82	13	0,39
G41533.5T	3,5	16	19	40	16	27	51	97	98	17	0,67
G41534.75T	4,75	19	22	46	19	31	59	112	114	19	1,08
G41536.5T	6,5	22	25	52	22	36	73	134	130	22	1,66
G41538.5T	8,5	25	28	59	25	43	85	154	150	25	2,46
G41539.5T	9,5	28	32	66	28	47	90	167	166	27	3,40
G415312T	12	32	35	72	32	51	94	180	178	30	4,51
G415313.5T	13,5	35	38	80	35	57	115	209	197	33	6,10
G415317T	17	38	42	88	38	60	127	230	202	19	7,63
G415325T	25	45	50	103	45	74	149	271	249	23	12,9
G415335T	35	50	57	111	50	83	171	305	269	26	17,4
G415342.5T	42,5	57	65	130	57	95	190	345	301	29	25,9
G415355T	55	65	70	145	65	105	203	376	330	32	35,3
G415385T	85	75	83	162	73	127	229	427	380	39	53,0
