Green Pin® Dee Shackle SC - Standard dee shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin® Dee Shackle SC is a dee shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long-term durability

Hire Me

1000KG Endless Roundslings

From: £4.95Ex. VAT

Hire from £2.70

Our endless roundslings provide a strong, flexible, and lightweight lifting solution designed for a wide range of lifting applications. Manufactured in the UK using high-tenacity polyester yarns enclosed within a durable woven sleeve, these slings offer excellent strength while maintaining exceptional flexibility and ease of handling.

- Capacity 1000Kg

- Manufactured to BS EN 1492-1:2000+A1

- Safety Factor 7 to 1

- Manufactured from high tenacity polyester fibre, protected by a durable polyester tubing.

Total: £0.00

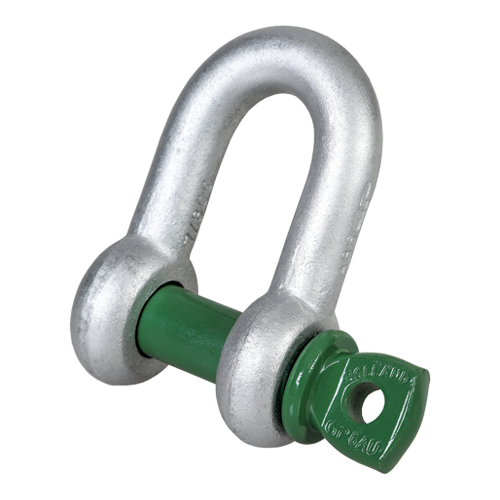

Green Pin® Dee Shackle SC

The Green Pin® Dee Shackle SC is a dee shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Due to the galvanization of the shackle its long-term durability is assured. Furthermore, the shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Dee Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle SC is suitable for one-leg lifting systems only and is available in a range with a working load limit from 0.33 up to 55 ton.

Material: bow and pin high tensile steel, Grade 6, quenched and tempered
Safety factor: MBL equals 6 x WLL
Finish: hot dipped galvanized
Temp. range-40°C up to +200°C
Certification: 2.12.23.1MTCaDNVGL-ST-0378CEABS PDAABS MA
Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26

Green_Pin_Shackles_Technical_Brochure_e835dc4e-2b47-47c7-8e25-54b99d696a9e.pdf

Article code	WLL (TON)	diameter bow (mm) - a	diameter pin (mm) - b	diameter eye (mm) - c	width eye (mm) - d	width inside (mm) - e	length inside (mm) - f	length (mm) - g	length bolt (mm) - h	Nett weight (kg)
G41510.33T	0,33	5	6	12	5	9,5	19	33	29,5	0,02
G41510.5T	0,5	7	8	16,5	7	12	22	41,5	38	0,05
G41510.75T	0,75	9	10	20	9	13,5	26	50	46,5	0,09
G41511T	1	10	11	22,5	10	17	32	59	54	0,14
G41511.5T	1,5	11	13	26,5	11	19	37	68	59,5	0,19
G41512T	2	13,5	16	34	13	22	43	81	73	0,32
G41513.5T	3,5	16	19	40	16	27	51	97	89	0,54
G41514.75T	4,75	19	22	46	19	31	59	112	103	0,87
G41516.5T	6,5	22	25	52	22	36	73	134	119	1,34
G41518.5T	8,5	25	28	59	25	43	85	154	137	2,08
G41519.5T	9,5	28	32	66	28	47	90	167	153	2,77
G415112T	12	32	35	72	32	51	94	180	170	3,72
G415113.5T	13,5	35	38	80	35	57	115	209	186	5,44
G415117T	17	38	42	88	38	60	127	230	203	6,85
G415125T	25	45	50	103	45	74	149	271	243	11,5
G415135T	35	50	57	111	50	83	171	305	272	16,9
G415142.5T	42,5	57	65	130	57	95	190	345	310	24,6
G415155T	55	65	70	145	65	105	203	376	344	32,7
