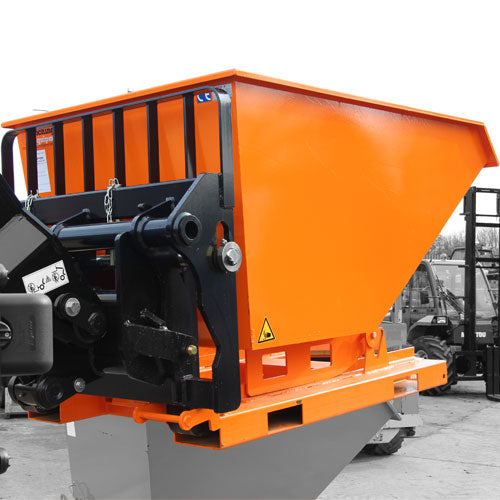

2013 Tipping Skip | Telehandler & Forklift
The 2013 Forklift Tipping Skip is a robust and reliable solution for safely moving and discharging waste around construction sites, warehouses, and factories.
Designed with four-way fork pocket entry, the skip can be positioned precisely where required, improving efficiency and site safety.
Built with health and safety at the forefront, each unit is supplied as standard with a fixed heel pin and a tear-drop safety catch, preventing accidental discharge during lifting or transit.
The rectangular, heavy-duty construction features a 3 mm sheet steel edge-profile surround with fully welded, oil-tight and water-tight seams, ensuring long service life even in demanding environments.
An integrated roller tipping system with automatic release allows the skip to be discharged from any position via a simple cable pull from the driver’s seat. A built-in safeguard prevents inadvertent slipping or tipping during operation.
Optional extra:
- with two fixed rollers and two steerable rollers (2 with locking brake)
- galvanised
- any special colour
- 4 crane lugs
(Please contact us for details).
| Product Code | SWL (kg) | Capacity (ltrs) | Height (mm) | Width (mm) | Length (mm) | Weight (mm) |
| 2013.8 | 1000 | 500 | 1060 | 1080 | 1370 | 220 |
| 2013.10 | 1000 | 750 | 1060 | 1180 | 1370 | 230 |
| 2013.12 | 1500 | 1200 | 1250 | 1200 | 1750 | 230 |
| 2013.14 | 1500 | 1500 | 1250 | 1560 | 1820 | 250 |
