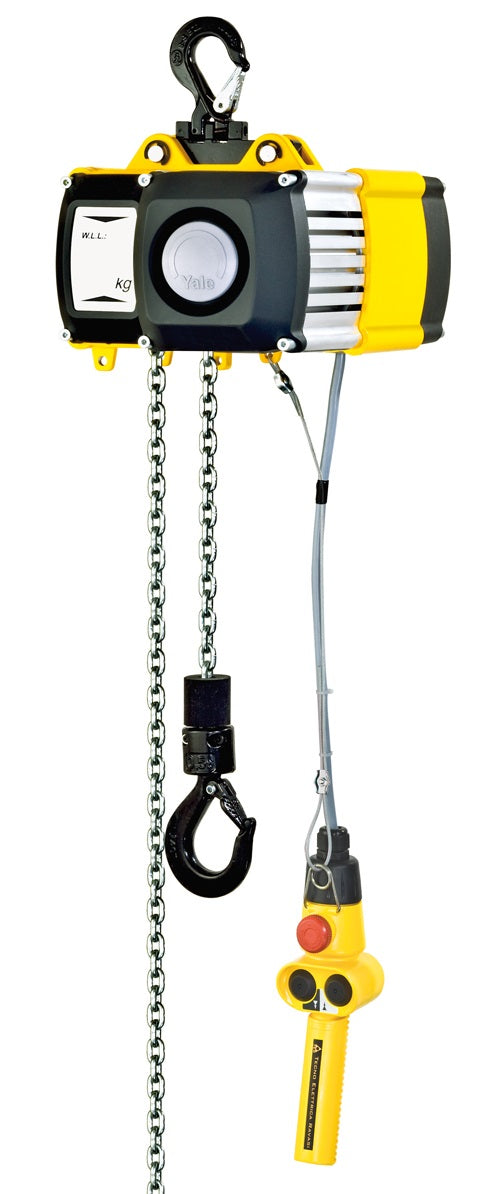

YALE CPV 400v Electric chain hoist

From: £1,423.21Ex. VAT ~~£1,674.37~~

The electric chain hoist CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.

Capacity 125 - 5000 kg

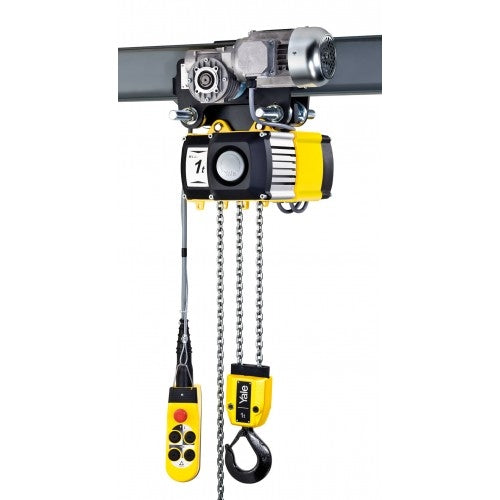

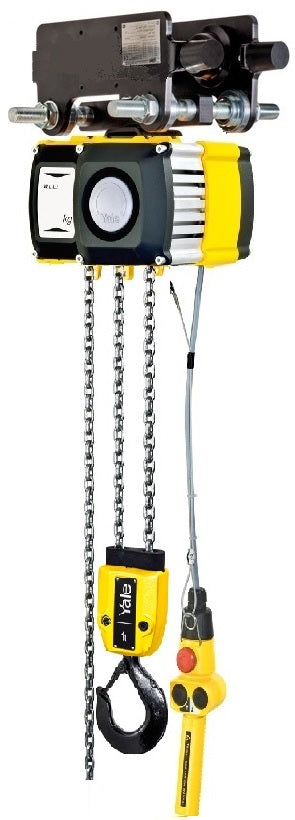

Available with top hook suspension, manual, geared, or electric trolley
Available with 1- or 2-speed lifting
2 Meter pendant length as standard

5.3 Tonne Yoke Grade 10 8mm Four Leg Chain Sling

On Sale

Hire Me

5.3 Tonne Yoke Grade 10 8mm Four Leg Chain Sling

From: £221.13Ex. VAT ~~£245.70~~

Yoke chain slings are high-performance lifting slings designed for heavy-duty lifting and rigging applications. Designed for demanding industrial environments such as construction, manufacturing, offshore, and logistics

- Chain Diameter: 8mm

- Number of Legs: 4

- Safe Working Load: 5.3 Tonne

- Supplied with Relevant Certificates

Total: £0.00

CPV Electric chain hoist

The electric chain hoist CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.

Quick Overview:

Up to 5,000kg Capacity
3 Meter height of lift as standard
2 Meter pendant length as standard
Single speed trolley at 18 m/min
Dual speed trolley at 18/4.5 m/min

Increased operating safety through 42V control voltage (low voltage control) and the main contactor.
The integrated limit switch for the highest and lowest hook position considerably extends the service life of the slip clutch, motor and gearbox.
Overload protection (slip clutch) in all CPV hoists is outside force flow to meet higher safety requirements.
Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
Different suspension types available such as top hook, lug or an integrated trolley. A retro-fit to another type of suspension is possible.
Any chain length (lifting height) as per customer order.
Oil bath gearbox (or semifluid grease with CPV/F 2-8 and 5-4 as well as CPV 2-4 and 5-2) with helical gearing for particularly smooth service and enhanced lifetime.
All-steel chain guide.
The chain guide of the smallest hoist CPV/F 2-8 and 5-4
as well as CPV 2-4 and 5-2 is a thermoplastic (POM)
chain guide that is integral with the housing.
CPV series are protected up to IP55.
Duty cycle 50% ED for single speed.
Operating temperature -10° to 40°C.

Options

Flexible chain containers.
Power supply cables, CEE plugs with phase changing switch.
Radio remote controls.
Pluggable control pendants.
Rotary limit switch as a back-up to standard limit switches.
Suspensions 90° turned.

Model	Capacity	Number of Chain Falls	Hoisting Speeds	Weight*- Lug/Top Hook Suspension	Weight*- Push Travel Trolley	Weight- Electric Travel Trolley*
CPV 2-8	250kg	1	8m/min	19kg	28kg	33kg
CPV/F 2-8	250kg	1	8 & 2m/min	19kg	28kg	33kg
CPV 5-4	500kg	2	4m/min	21kg	30kg	35kg
CPV/F 5-4	500kg	2	4 & 1m/min	21kg	30kg	35kg
CPV 5-8 (FAST)	500kg	1	8m/min	21kg	30kg	35kg
CPV/F 5-8 (FAST)	500kg	1	8 & 2m/min	27kg	42kg	50kg
CPV 10-4	1000kg	2	4m/min	28kg	43kg	51kg
CPV/F 10-4	1000kg	2	4 & 8m/min	29kg	44kg	52kg
CPV 10-8 (FAST)	1000kg	1	8m/min	58kg	77kg	84kg
CPV/F 10-8 (FAST)	1000kg	1	8 & 2m/min	59kg	78kg	85kg
CPV 20-4	2000kg	2	4m/min	63kg	82kg	89kg
CPV/F 20-4	2000kg	2	4 & 1m/min	64kg	83kg	90kg
CPV/F 25-8	2500kg	1	8 & 2m/min	85kg	147kg	161kg
CPV/F 50-4	5000kg	2	4 & 1m/min	On Request	On Request	On Request

*Above prices are based on a standard 3mtr HOL, with 2mtr pendant, excluding chain bag and are for range A trolleys where applicable.* Weight for standard 3mtr hol.

Hoist raincoats are available on request, please contact sales

Model	CPV/CPVF 2-8	CPV/CPVF 5-4	CPV/CPVF 5-8 / CPV/CPVF 2-20	CPV/CPVF 10-4	CPV/CPVF 10-8 / CPV/CPVF 5-20 / CPV/CPVF 6-16	CPV/CPVF 20-4
A, mm	357	393	357	430	431	528
A1, mm	196	196	196	196	234	234
A2 (Size I), mm	476	476	476	476	564	564
A2 (Size II), mm	526	526	526	526	644	644
A2 (Size III), mm	606	606	606	606	734	734
A2 (Size IV), mm	798	798	798	798	934	934
B, mm	22	22	22	29	29	37
B1, mm	15	15	15	15	20	20
C, mm	29	29	29	35	35	40
C1, mm	38	38	38	38	45	45
C2, mm	105	105	105	105	154	154
D, mm	15	15	15	21	21	26
D1, mm	15	15	15	15	15	15
E, mm	277	277	277	277	326	326
G, mm	120	144	120	144	140	173
G1 (Size I), mm	142	166	142	166	175	208
G1 (Size II), mm	162	186	162	186	175	208
G1 (Size III), mm	162	186	162	186	175	208
G1 (Size IV), mm	162	186	162	186	175	208
H, mm	157	133	157	133	186	154
H2, mm	158	158	158	158	186	186
K (CPV), mm	208	208	208	208	285	285
K (CPVF), mm	208	208	208	208	285	285
M (Size I), mm	162	162	162	162	209	209
M (Size II), mm	197	197	197	197	209	209
M (Size III), mm	197	197	197	197	209	209
M (Size IV), mm	197	197	197	197	209	209
N*, mm	219	219	219	219	274	274

Model	CPV/CPVF 2-8	CPV/CPVF 5-4	CPV/CPVF 5-8 / CPV/CPVF 2-20	CPV/CPVF 10-4	CPV/CPVF 10-8 / CPV/CPVF 5-20 / CPV/CPVF 6-16	CPV/CPVF 20-4
A3, mm	228	228	228	228	263	263
A4 (Size I), mm	508	508	508	508	593	593
A4 (Size II), mm	558	558	558	558	673	673
A4 (Size III), mm	638	638	638	638	768	768
A4 (Size IV), mm	830	830	830	830	968	968
A5, mm	389	425	389	462	460	558
b, mm	A = 58 - 180/ B = 180 - 300	A = 58 - 180/ B = 180 - 300	A = 58 - 180/ B = 180 - 300	A = 58 - 180/ B = 180 - 300	A = 58 - 180/ B = 180 - 300	A = 58 - 180/ B = 180 - 300
H1, mm	24	24	24	24	23	23
H3, mm	129	129	129	129	129	129
H4 (VTG), mm	95	95	95	95	95	95
H4 (VTE), mm	142	142	142	142	142	142
I (Pushed trolley), mm	72	72	72	72	96	96
I (Geared trolley), mm	77	77	77	77	98	98
L (VTP/VTG), mm	310	310	310	310	360	360
L1, mm	130	130	130	130	150	150
L2 (CPV), mm	255	255	255	255	255	255
L2 (CPVF), mm	263	263	263	263	263	263
L3, mm	155	155	155	155	180	180
L4, mm	136	161	173	161	203	203
O, mm	60	60	60	60	80	80
P, mm	180	180	180	180	180	180
P1, mm	246	246	246	246	246	246
S, mm	b + 50	b + 50	b + 50	b + 50	b + 54	b + 54
T, mm	94	94	94	94	94	94
tmax., mm	19	19	19	19	19	19
