Pfaff EGU 15E Li-ION Electric Pallet Truck

From: £3,284.39Ex. VAT ~~£3,649.32~~

The EGU 15 E is the new generation of electric pallet trucks. With its compact dimensions and new Lithium battery, it is an ideal alternative to the standard pallet truck and, with only 123 kg service weight the perfect driving device on a truck.

Capacity 1500 kg
Fork length 1200 mm
Fork width 540 mm

25mm Ratchet Strap - Endless - MBS 1.4 Tonne

From: £8.00Ex. VAT

Our Heavy Duty Ratchet Straps are designed for secure and reliable load restraint in demanding commercial and industrial applications.
- Webbing Width: 25mm

- Material: Webbing to BS EN 12195-2:2001

- Minimum Breaking Strength (MBS): 1.4 Tonne

Total: £0.00

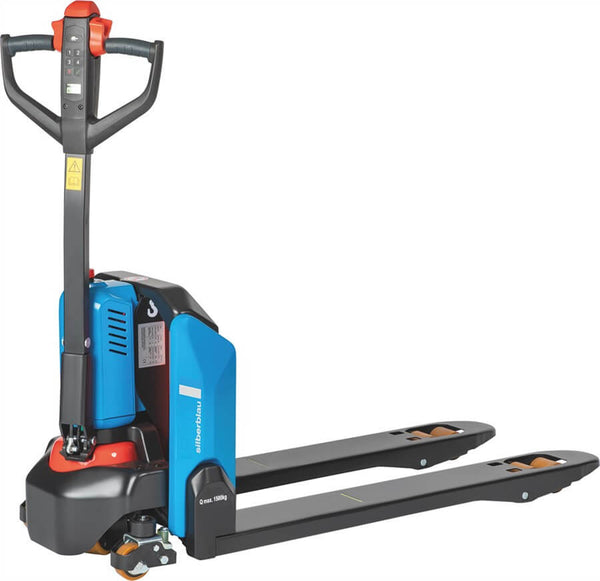

EGU 15E Li-ION Electric Pallet Truck

Lifting capacity 1500kg

Supplied as standard with a replaceable battery the discharged battery can be exchanged with a fully charged battery within seconds, minimising the amount of disruption to the work cycle. Charging time for the battery is only 2.5 hours.

Maintenance-free rechargeable Lithium battery.
Integrated Battery management system controls all important parameters and performance of the lithium battery.
Charging time of only 2.5 hours, intermediate charge is possible.
Integrated PIN code panel with LCD display.
Curtis-Controller and CAN-Bus technology.
Infinitely variable driving speed.
External battery charger for charging with a 230 V plug socket.
Battery charge indicator and operating hour counter.
Entry rollers ensure smooth entry into bottom-boarded pallets.

pfaff-materialhandling-egu15e-ds-en-ger-2021-10-18.pdf

Model	EGU 15E Li-Ion 20Ah	EGU 15E Li-Ion 36Ah
Art.-No.	N23315461	N23315463
Capacity, kg	1500	1500
Tyre type *	PUR/PUR	PUR/PUR
Steering rollers, mm	210x70	210x70
Load rollers, mm	80x93	80x93
Number of wheels/ load rollers (x=driven)	2+1x/4	2+1x/4
Stroke h3, mm	115	115
Load center c, mm	600	600
Fork height max., mm	195	195
Fork height lowered h13, mm	85	85
Heigth of control handle h14, mm	1160	1160
Overall length l1, mm	1530	1530
Overall width b1, mm	540	540
Fork dimensions s/e/l, mm	47x160x1150	47x160x1150
Outside dimension of forks b5, mm	540	540
Aisle width pallet Ast, mm	2000	2000
Turning circle radius Wa, mm	1330	1330
Actuation	electric	electric
Operation	pedestrian	pedestrian
Travel speed with/without load, km/h	4.6/4.8	4.6/4.8
Lifting speed with/without load, m/s	0.020/0.025	0.020/0.025
Lowering speed with/without load, m/s	0.05/0.04	0.05/0.04
Gradient with/without load, %	5/10	5/10
Drive motor rating, kW	0.65	0.65
Hoist motor rating, kW	0.5	0.5
Service brake	electric	electric
Battery	Li-ION	Li-ION
Battery voltage, V/Ah	24/20	24/20
Weight with battery, kg	123	123

1 - Polyurethane (PUR)
