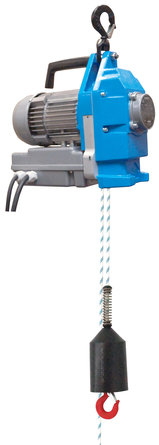

MINIFOR SY Series Electric Kernmantle Rope Hoists for Material Handling

MINIFOR SY Series Electric Kernmantle Rope Hoist Pendant Control

Frequently bought together

MINIFOR SY Series Electric Kernmantle Rope Hoist Pendant Control

From: £3,277.46Ex. VAT

The Minifor SY Series Electric Hoist delivers compact, high-performance lifting with unlimited height capability—ideal for maintenance, construction, and industrial applications requiring portable, efficient vertical handling.

125 kg working load limit (250 kg with sheaving kit)
Unlimited lifting height with continuous synthetic rope system
Up to 30 m/min lifting speed depending on power version

Hire Me

Crosby G-209 Alloy Bow Shackle

From: £6.23Ex. VAT

Hire from £2.20

The Crosby G-209 Screw Pin Anchor Shackle is a trusted choice for lifting, rigging and load-securing applications across construction, industrial, marine and transport environments.

- Sizes available 0.33t to 55t

- Hot-dip galvanized

- Forged, Quenched & Tempered, with alloy pins

Total: £0.00

MINIFOR SY Series

With a working load limit of 125 kg (250 kg when rigged) and a continuous drive system for synthetic rope, the TR125 SY model provides fast lifting speeds up to 30 m/min. The hoist is available in 115 V, 230 V (single-phase), and 400 V (three-phase) versions. Operators can choose between a plug-in pendant or radio remote control with up to 500 m range. It includes adjustable high/low limit stops, IP55 motor protection, and supports use with anti-rotating ropes and rigging kits.

Designed for e.g. windmill and long-lift applications, the TR125 SY is suited for façade work and general site operations. Its ergonomic handle, light weight (20–21 kg), and easy setup make it ideal for quick deployment across variable job sites, while compliance with the Machinery Directive 2006/42/EC ensures operational safety.

125 kg working load limit (250 kg with sheaving kit)
Unlimited lifting height with continuous synthetic rope system
Up to 30 m/min lifting speed depending on power version
Power supply: 115 V / 230 V (1-phase) and 400 V (3-phase)
Plug-in pendant or radio remote control (up to 500 m range)
Integrated thermal protection and IP55-rated motor
Adjustable high and low travel limit stops
CE-compliant and compatible with Minifor rigging accessories

Model	WLL (kg)	Lifting Speed (m/min)	Power (f / VAC / Hz / A)	Duty Cycle (%)	Weight (kg)	Code
TR125 SY	125	30	3 / 690 / 50 / 1.3	100	22	245199
TR125 SY	125	30	3 / 400 / 50 / 2.25	100	20	245189
TR125 SY	125	30	1 / 230 / 50 / 6.2	30	20	245169
TR125 SY	125	15	1 / 115 / 50 / 9	30	20	245179
TR125 SY	125	15	1 / 115 / 50 / 9	20	21	245159
TR125 SY	125	15	1 / 115 / 60 / 9	20	21	243999 \| on request

MINIFOR SY Series Electric Kernmantle Rope Hoist Pendant Control

From: £3,277.46Ex. VAT

Est. lead time to dispatch: 1 Day

125 kg working load limit (250 kg with sheaving kit)
Unlimited lifting height with continuous synthetic rope system
Up to 30 m/min lifting speed depending on power version
