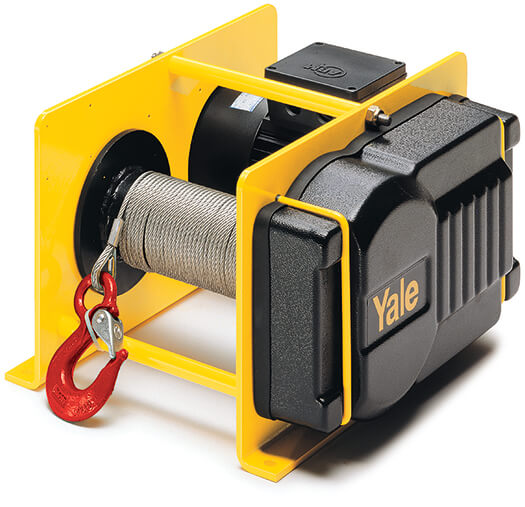

RPE electric winch

Capacities: 250 - 2000kg

Yale wire rope winches, RPE and RPA, are designed specifically for performance, efficiency, and safety, and offer many advantages and options.

Their extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position and this makes them powerful aids for lifting and pulling loads.

The units are supplied with a certificate of conformity showing the units serial number and an operating instruction manual, which contains our manufacturer’s CE declaration.

Compact dimensions due to internal brake motor.
Standard operating voltages of 400 V/230 V, 3-ph, 50 Hz or 230 V, 1-ph, 50 Hz.
Adjustable slip clutch to protect the winch from overloading standard for RPE 10-6 and RPE 20-6.
Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position.
Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure.
Plain rope drum standard. The rope is secured to the drum in a recess so that the rope can be wound onto the drum in several layers without damage.

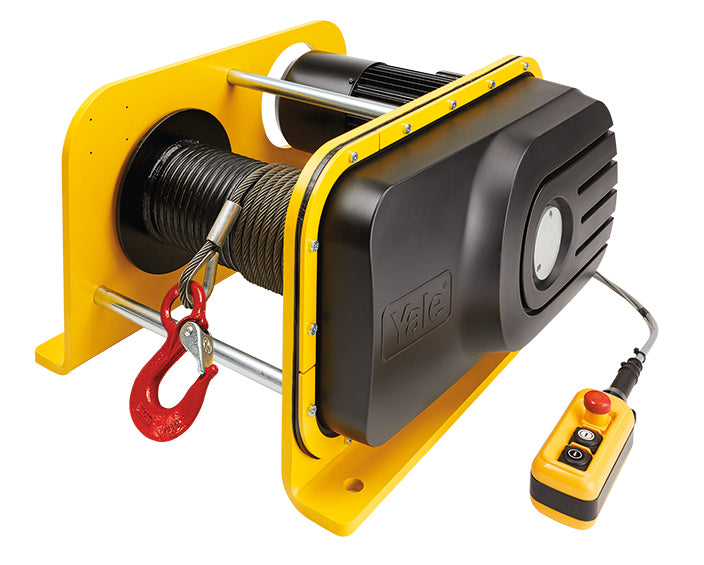

42 V low voltage control (includes push-button with emergency-stop and 2 m control cable) or without control.
Designed to DIN 15020, classification 1 Bm/M3 and the EC machinery directives.
Every winch is factory tested with overload.
Each unit is supplied with a test certificate showing the unit's serial-number and an operating instructions manual which contains a manufacturer's declaration.

OPTIONS:

Different drum designs (XL) extended to accommodate longer rope.
Machined grooved drums for better rope reeling.
Drums with separation web and extra rope outlets for working with two or more ropes.
Geared limit switches to limit rope motion in both directions (in combination with 42 V low voltage control).
Slack rope switch to automatically stop the winch when rope tension eases e.g. when the load touches down (in combination with 42 V low voltage control).
Frequency converter for stepless speed control.
Special design according to DGUV Vorschrift 17 (BGV C1) for theater stage applications on request.
Radio remote control only in combination with low voltage control.
Other operating voltages available.
Motor brakes with manual release.
Special coatings or zinc plated finish.

Plain drum rope capacity

Model	Capacity top layer kg	Drum size	Useable rope length max. m
Model	Capacity top layer kg	Drum size	1st Layer	2nd Layer	3rd Layer	4th Layer
RPE 2-13*	250	1*	11.1	24.5	39	54
RPE 5-6*	500	1*	7.4	16.9	27	38
RPE 10-6*	1000	1*	10.1	23	37	-
RPE 20-6	2000	1	13.2	30.3	49	-
RPE 2-13 L	250	2	16.8	36.4	57	80
RPE 5-6 L	500	2	11.3	25.2	40	57
RPE 5-12 L	500	2	11.3	25.2	40	57
RPE 10-6 L	1000	2	15.8	35.2	56	-
RPE 20-6 L	2000	2	20.6	46.1	74	-
RPE 2-13 XL	250	3	44.3	94.1	148	200
RPE 5-6 XL	500	3	30	65.5	105	149
RPE 5-12 XL	500	3	65	65.5	105	149
RPE 10-6 XL	1000	3	30.7	67	107	-
RPE 20-6 XL	2000	3	34.1	74.9	120	-

* available on request only!

Grooved drum rope capacity

Model	Capacity top layer kg	Drum size	Useable rope length max. m
Model	Capacity top layer kg	Drum size	1st Layer	max.
RPE 2-13 R*	250	1*	8.8	43
RPE 5-6 R*	500	1*	6.2	33
RPE 10-6 R*	1000	1*	8.2	30
RPE 20-6 R	2000	1	12	44
RPE 2-13 LR	250	2	13.3	64
RPE 5-6 LR	500	2	9.5	49
RPE 5-12 LR	500	2	9.5	49
RPE 10-6 LR	1000	2	12.9	47
RPE 20-6 LR	2000	2	16.8	61
RPE 2-13 XLR	250	3	35.3	165
RPE 5-6 XLR	500	3	25.7	128
RPE 5-12 XLR	500	3	25.7	128
RPE 10-6 XLR	1000	3	25.2	89
RPE 20-6 XLR	2000	3	27.9	99

* available on request only!

Model	RPE 2-13 L RPE 5-6 L RPE 5-12 L	RPE 2-13 XL RPE 5-6 XL RPE 5-12 XL	RPE 10-6 L	RPE 10-6 XL	RPE 20-6	RPE 20-6 L	RPE 20-6 XL
A, mm	405	405	525	525	670	670	670
B, mm	375	375	485	485	550	550	550
C, mm	18	18	25	25	36	36	36
Dtr, mm	76	76	108	108	146	146	146
D max, mm	118	118	148	148	224.4	224.4	224.4
DA, mm	150	150	180	180	245	245	245
E, mm	428	865	575	902	619	784	1084
F, mm	300	737	395	722	360	525	825
G, mm	350	787	470	797	480	645	945
H, mm	380	817	505	832	540	705	1005
I, mm	11	11	13	13	23	23	23
K, mm	250	250	340	340	401	401	401
L, mm	125	125	170	170	215	215	215
M, mm	6	6	10	10	15	15	15
N, mm	33	33	47.5	47.5	72.5	72.5	72.5
O, mm	284	721	375	702	335	500	800
P, mm	19	19	24	24	34	34	34
Q, mm	13	13	19	19	26	26	26
R, mm	125	125	170	170	135	135	135
S, mm	6	6	8	8	12	12	12
α 1, °	130	130	145	145	153	153	153
α 2, °	110	110	125	125	136	136	136
α 3, °	40	40	50	50	64	64	64
β 1, °	150	150	155	155	147	147	147
β 2, °	90	90	100	100	107	107	107
β 3, °	80	80	83	83	83	83	83
