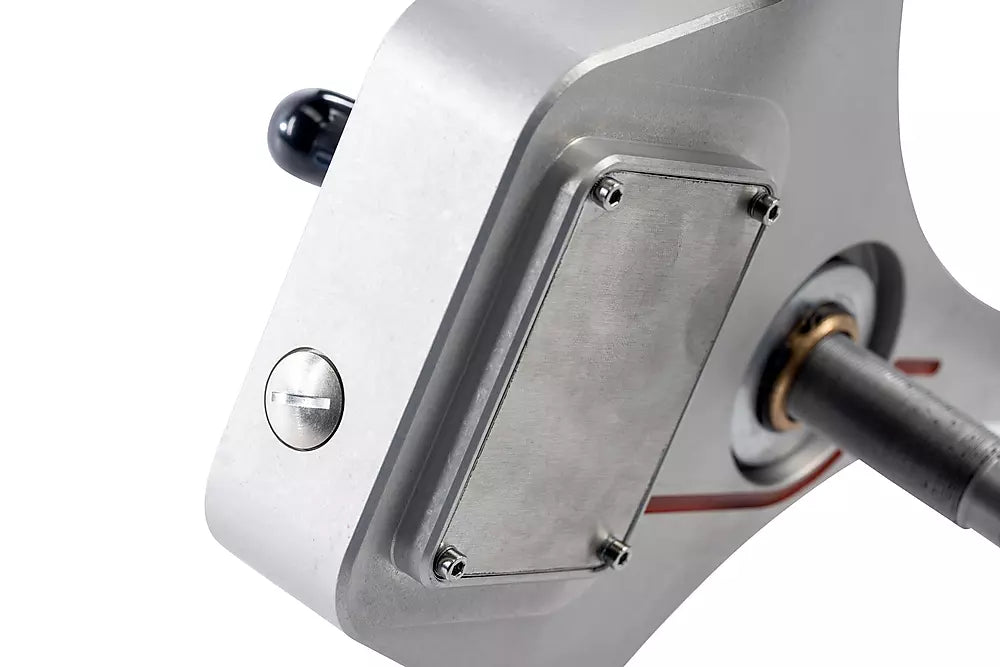

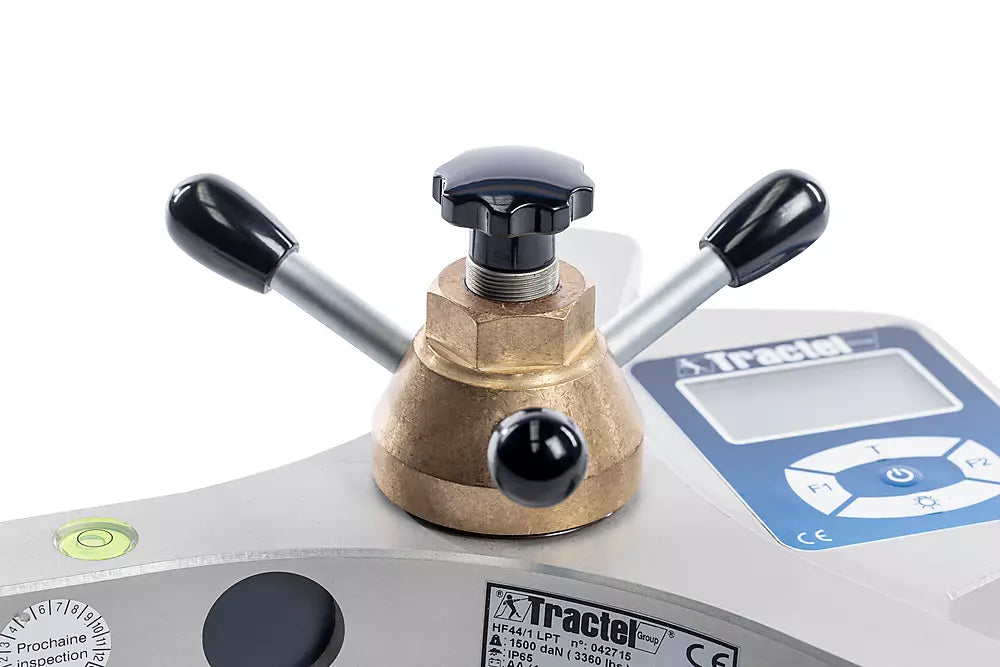

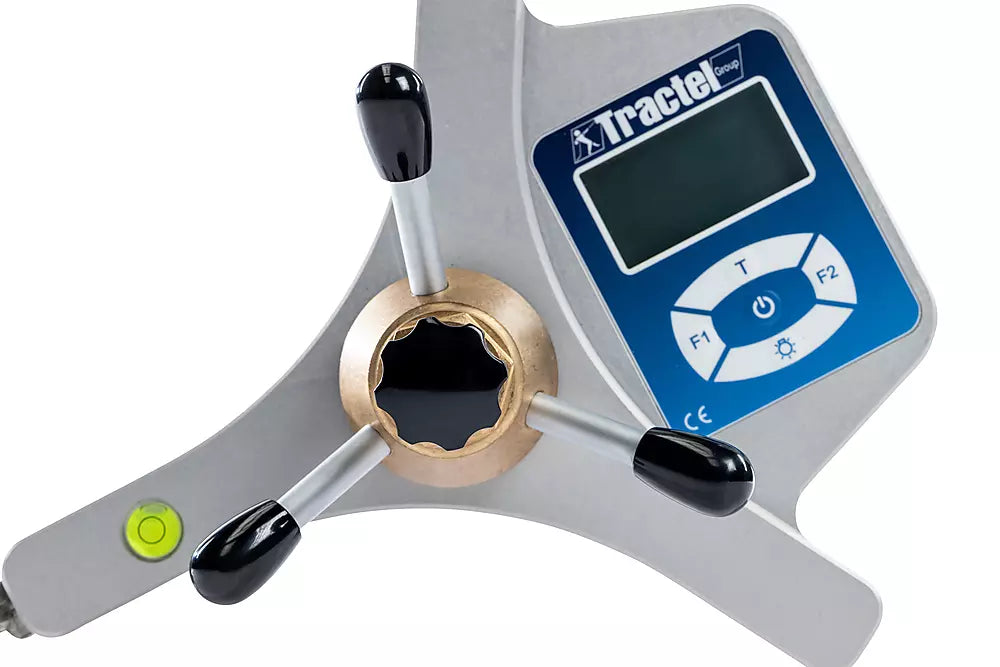

Dynaplug™ HF 44

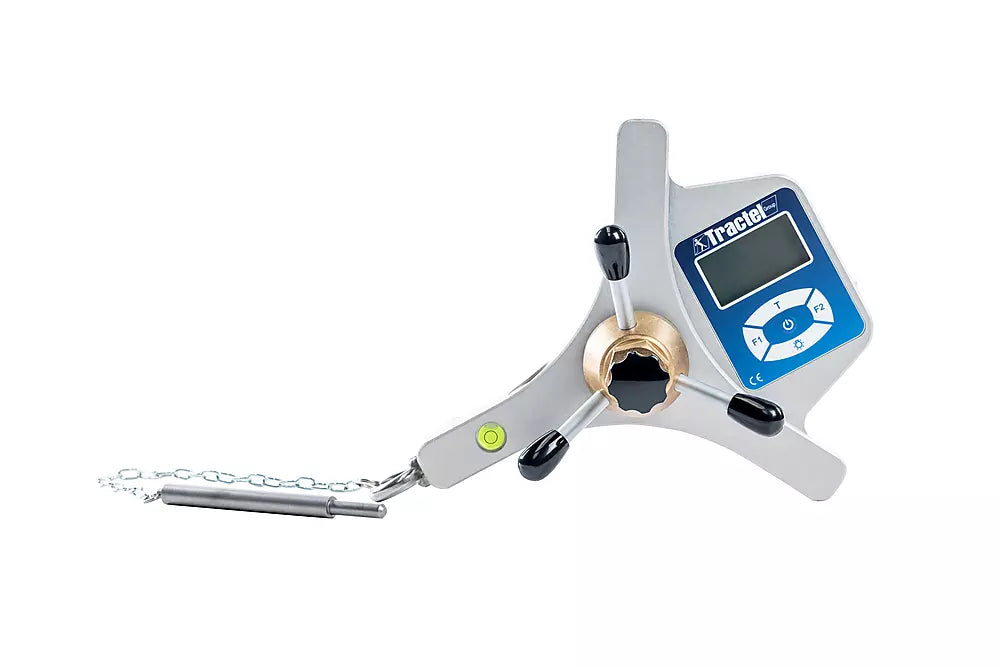

The dynaplug™ anchor tester is an electronic load cell designed to measure anchor strength in construction material.

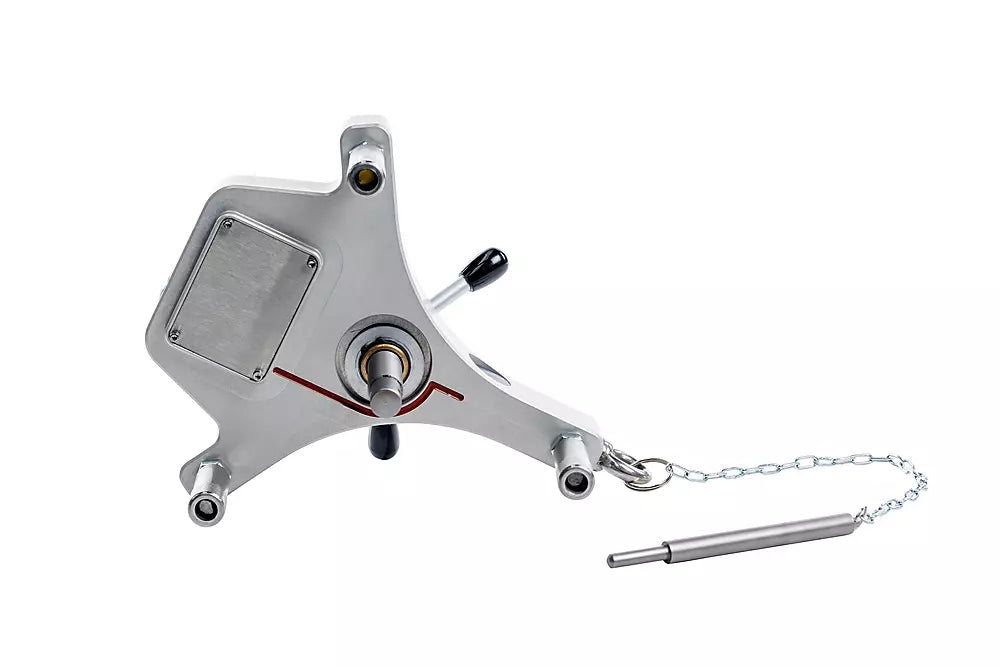

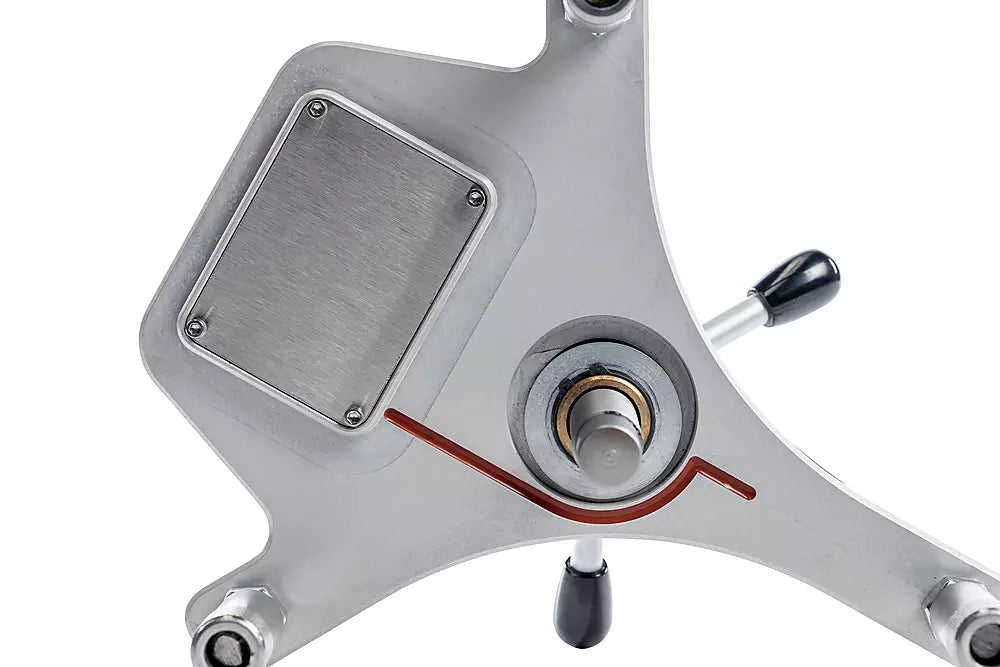

The tool measures traction forces up to 5000 daN. Its shape as a tripod has been especially designed to minimize its influence on the concrete around the fixing.
The three legs made in stainless steel can be adapted from 70 mm up to 190 mm high.

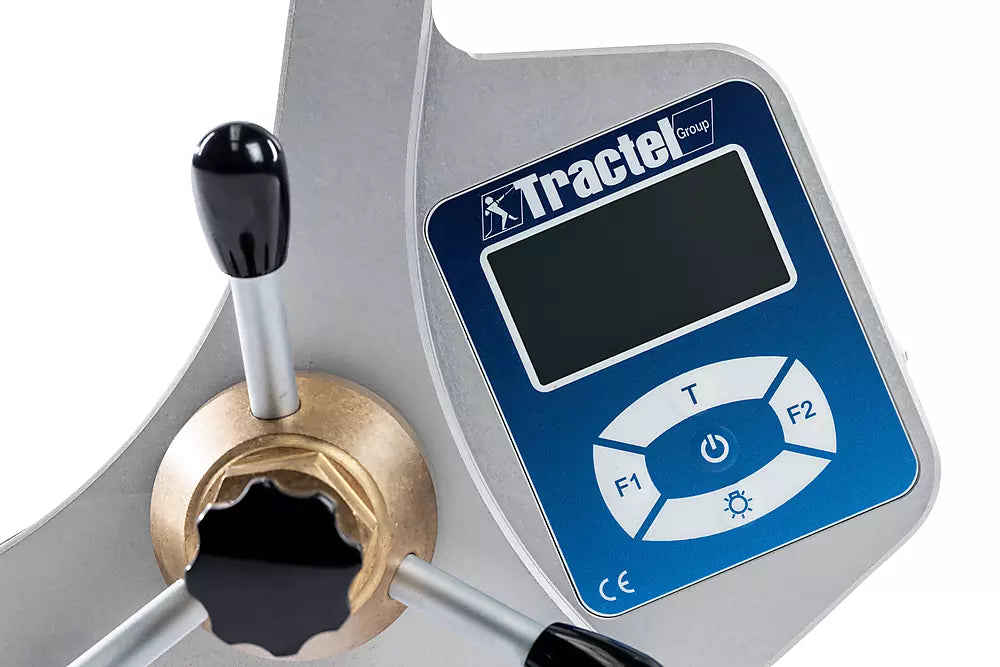

Two programs have been included into the electronics: Program n°1 applies a force of 500 daN on the fixing during 20 seconds.
Program n°2 applies a force between of 1000 daN on the fixing during 3 minutes.

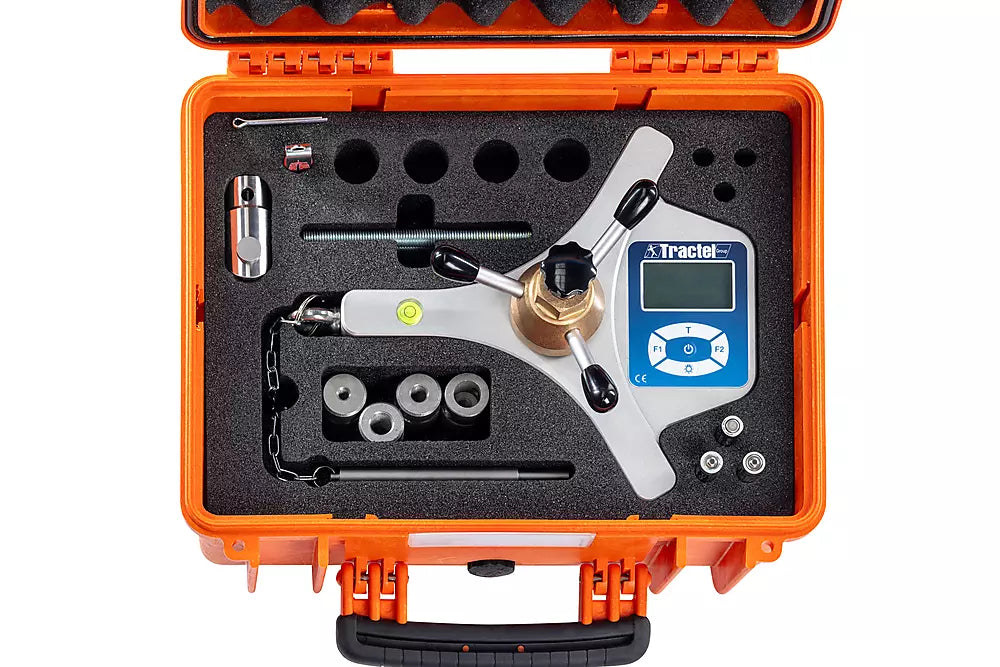

Standard content of delivery:
- Anchor tester Dynaplug™
- 4 Studs M10, M12, M14, M16 + 1 traction fork
- 3 threaded rods to adjust the height of the legs

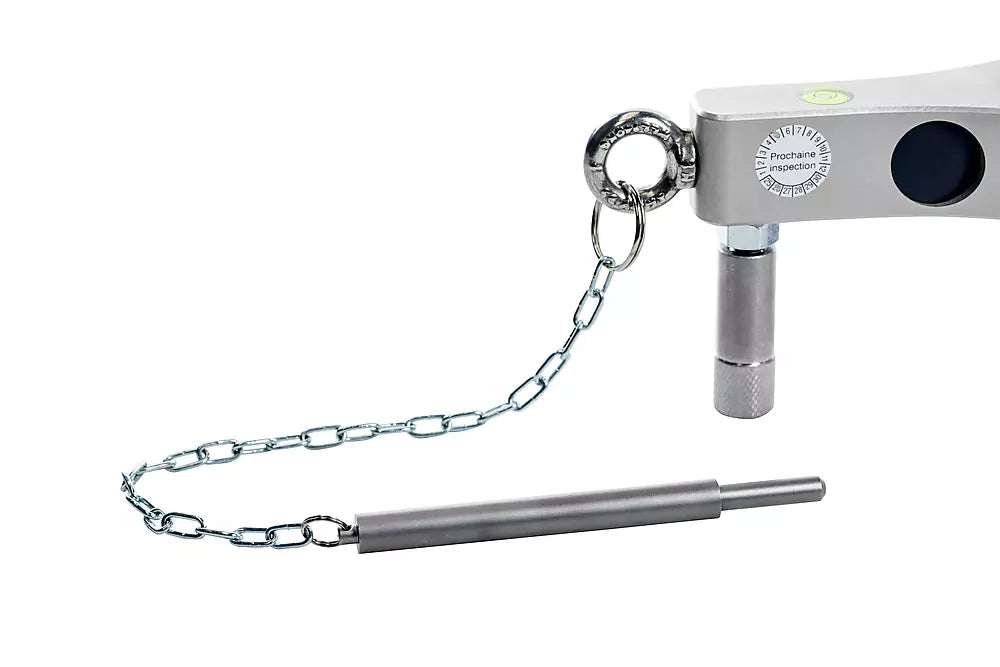

- 1 fixing tube with a chain
- CE certificate & calibration certificate
- User manual

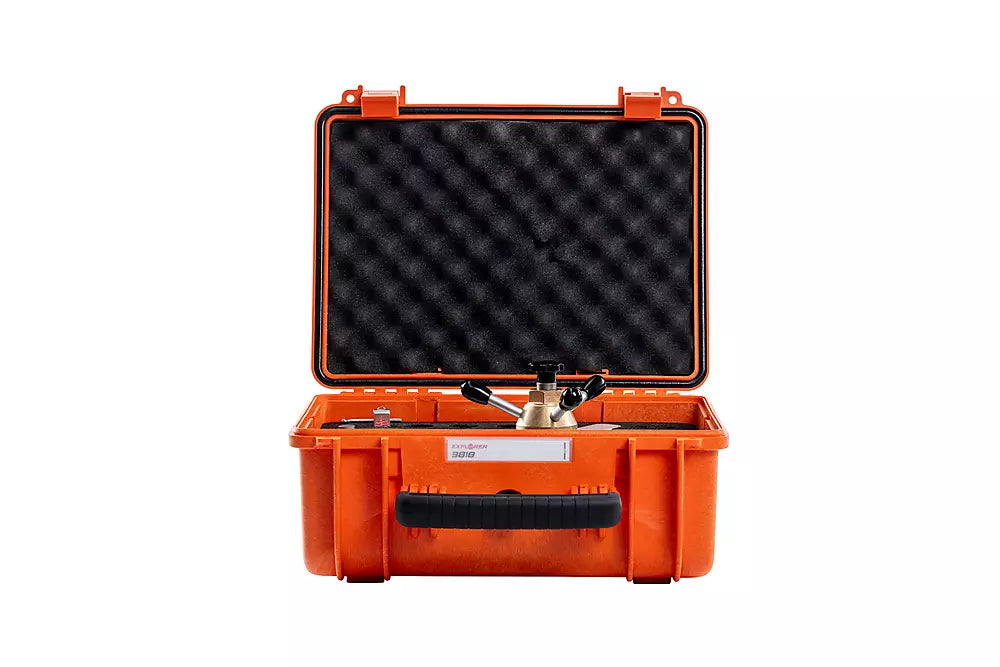

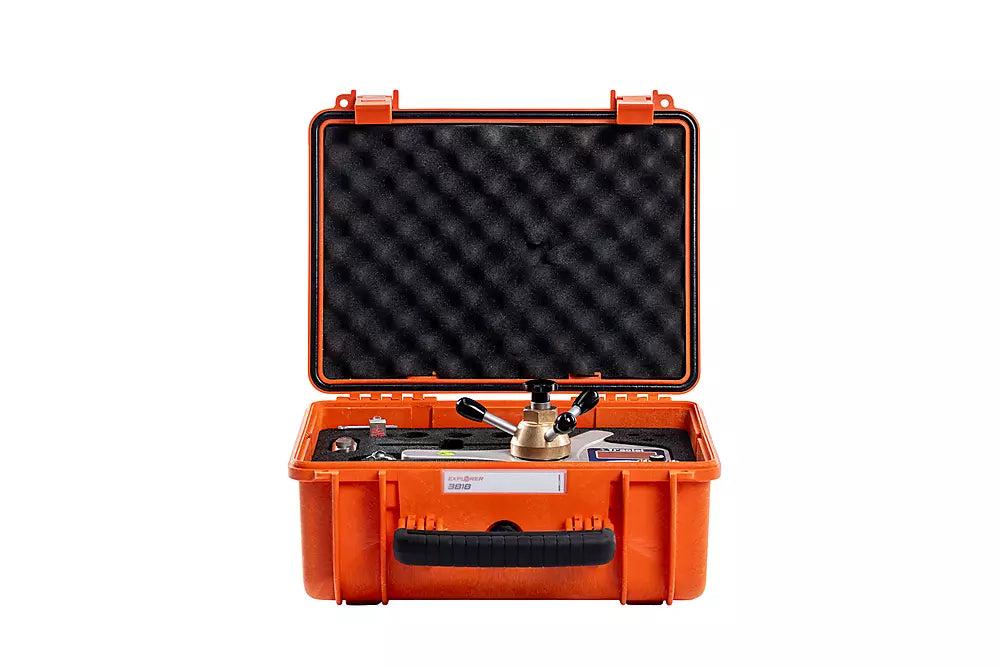

- Carrying box
| Model | Capacity | Max height of feet | Length | Width | Height | Net weight |
|---|---|---|---|---|---|---|

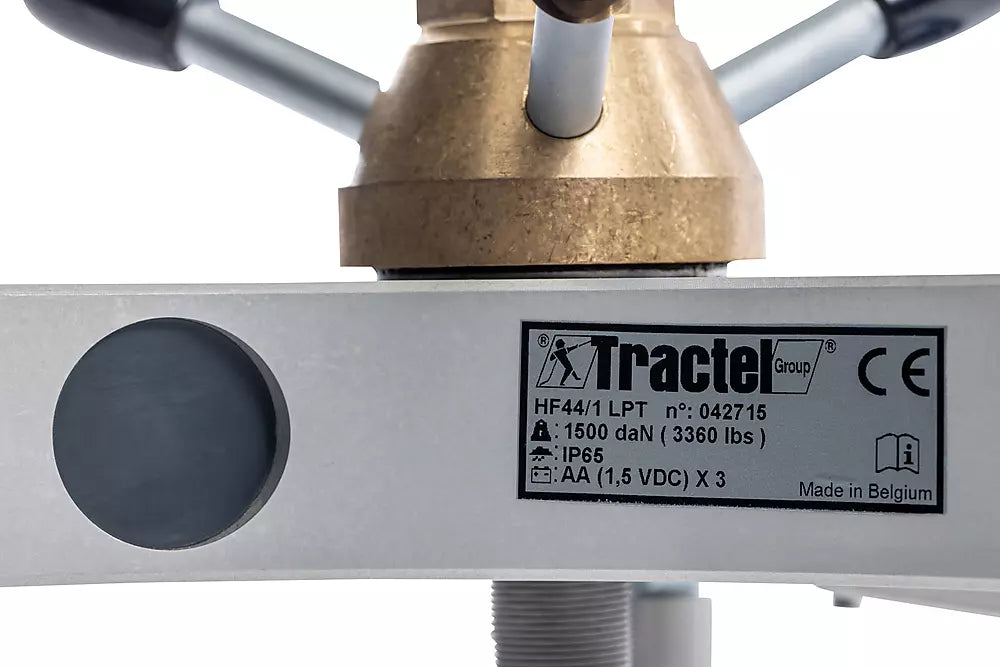

| HF 44/1/LPT | 1.500 daN | 190 mm | 268 mm | 246 mm | 210 mm | 4.5 kg |
| HF 44/2/LPT | 2.500 daN | 190 mm | 268 mm | 246 mm | 210 mm | 4.8 kg |
| HF 44/3/LPT | 5.000 daN | 250 mm | 300 mm | 286 mm | 372 mm | 7.2 kg |
