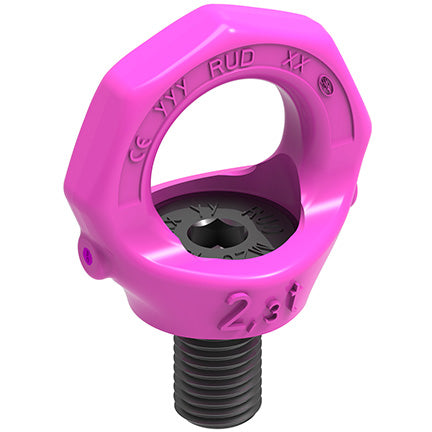

RUD Starpoint Eyebolts – High-Performance Rotating Lifting Points

The RUD Starpoint Eyebolt is a premium, high-strength lifting point designed for safe, efficient, and flexible load handling in demanding industrial applications. Engineered and manufactured in Germany, Starpoint eyebolts set the global benchmark for reliability, safety, and innovation in lifting technology.

Unlike conventional fixed eyebolts, the RUD Starpoint features a 360° rotating body combined with a pivoting ring that aligns itself perfectly with the direction of the load. This intelligent design minimizes side loading, reduces stress on the lifting point, and significantly improves operational safety—especially in complex or angular lifts.

Superior Strength & Safety

Manufactured from high-tensile, forged alloy steel, RUD Starpoint eyebolts offer an exceptional working load limit (WLL) relative to their size and weight. Each unit is clearly marked with the WLL, thread size, and RUD identification, ensuring easy inspection and compliance on-site.

The Starpoint range is tested and certified to international standards, including EN and DGUV guidelines, and is designed with a high safety factor for peace of mind during critical lifting operations. The patented design ensures consistent performance even under dynamic and multi-directional loads.

360° adjustable in force direction
several times higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly

Instruction_Handbook_b84317f0-8626-4cd1-8874-7b5f824cffda.pdf

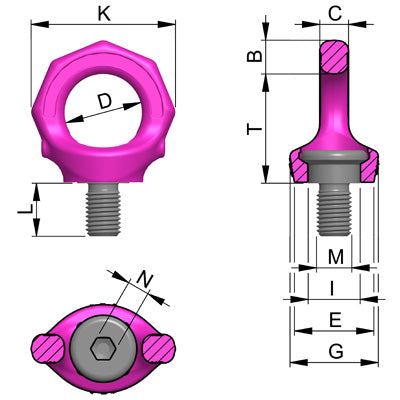

Type	WLL [t]	Weight VRS [kg/St.]	T [mm]	B [mm]	C [mm]	D [mm]	E [mm]	G [mm]	I [mm]	K [mm]	L [mm]	M	N [mm]	Torque. [Nm]	Best.-Nr. VRS
VRS-F-M6 / VRS-M6	0,1	0,07	28	9	7	20	23	28	13	37	9	M6	6	5	7900909
VRS-F-M8 / VRS-M8	0,3	0,1	35	11	9	25	25	30	16,3	47	12	M8	6	10	7100554
VRS-F-M10 / VRS-M10	0,4	0,1	35	11	9	25	25	30	16,3	47	15	M10	6	10	7100555
VRS-F-M12* / VRS-M12	0,75	0,2	42	13	10	30	30	34	19,8	56	18	M12	8	25	7100556
VRS-F-M14* / VRS-M14	0,75	0,2	42	13	10	30	30	34	19,8	56	18	M14	8	30	7100557
VRS-F-M16* / VRS-M16	1,5	0,33	49	15	13	35	36	40	23,5	65	24	M16	10	60	7100558
VRS-F-M16-SL35*	1,5	–	49	15	13	35	36	40	23,5	65	35	M16	10	60	–
VRS-F-M18* / VRS-M18	1,5	0,3	49	15	13	35	36	40	23,5	65	24	M18	10	60	7992219
VRS-F-M20 / VRS-M20	2,3	0,5	58	17	16	40	41	50	29,3	76	30	M20	12	115	7100559
VRS-F-M22 / VRS-M22	2,3	0,61	58	17	16	40	41	50	29,3	76	30	M22	12	125	7904625
VRS-F-M24 / VRS-M24	3,2	0,86	70	20	19	49	51	60	35	92	36	M24	14	190	7100560
VRS-M24-SL48	3,2	1	70	20	19	49	51	60	35	92	48	M24	14	190	7990615
VRS-F-M27 / VRS-M27	3,2	0,94	70	20	19	49	51	60	35	92	36	M27	14	250	7904626
VRS-F-M30 / VRS-M30	4,5	1,5	87	26	24	60	66	75	44	114	45	M30	17	330	7100561
VRS-F-M33 / VRS-M33	4,5	1,66	87	26	24	60	66	75	44	114	45	M33	17	350	7904627
VRS-F-M36 / VRS-M36	7	3,5	104	32	29	73	76	98	53	135	54	M36	22	590	7984198
VRS-M36-SL72	7	3,3	104	32	29	73	76	98	53	135	72	M36	22	590	7991247
VRS-F-M42 / VRS-M42	9	4,6	122	36	34	85	86	109	62	157	63	M42	24	925	7984199
VRS-F-M48 / VRS-M48	12	7,44	138	42	38	96	101	128	70	179	72	M48	27	1400	7984200
VRS-M56	16	12	161	50	44	110	112	145	82	210	84	M56	32	1400	7907508
VRS-M64	20	16,4	177	55	49	120	122	158	90	229	96	M64	36	1400	7907509

Videos

On Sale

RUD VRS STARPOINT, Metric thread

Name: RUD VRS STARPOINT, Metric thread
Brand: Rud
SKU: 8600270-1-20
Price: 40.6 GBP
Availability: InStock

From: £34.54Ex. VAT ~~£38.38~~

Est. lead time to dispatch: 1-2 days

The RUD Starpoint Eyebolt is a premium, high-strength lifting point designed for safe, efficient, and flexible load handling in demanding industrial applications.
- Star-shaped design

- 4:1 Safety factor.

- Capacity ranges from 100kg to 12,000kg.

- Full working load in all directions.

METRIC | CAPACITY | CODE
