RUD VWBG-V Load ring, metric thread

From: £81.73Ex. VAT ~~£90.81~~

- Rotating 360˚, Pivoting 230˚

- Ball Bearings

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

VWBG-V Load ring, metric thread

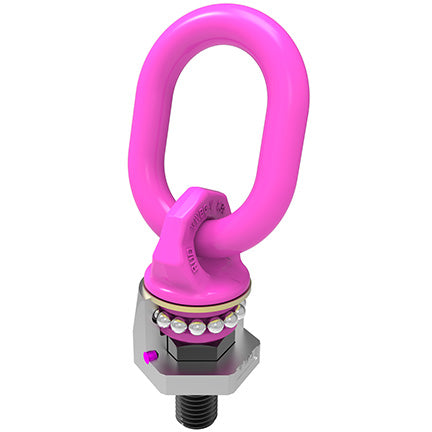

The RUD VWBG-V Load Ring, With Metric Thread, has a safety factor of 4:1 and comes fully tested and approved by DGUV. Thanks to the integrated ball bearings the load ring is able to rotate a full 360˚ this ensures a perfect connection every time. The load ring has optical markings for easy determination for withdrawal of service. In true RUD fashion, all the load rings are finished in a gloss pink.

Suitable for all loads which swivel and tilt
Can be loaded in all directions with a 4:1 design factor
Swiveling under full load is permissible provided the inclination angle is not perpendicular to the screw – in direction
Not suitable for permanent swiveling under full load
Can also be supplied with variable (vario) thread lengths
Easy assembly due to the single threaded tapping
High tensile, inspected suspension ring

Instruction_Handbook_433a11c8-4ab2-4b3d-a332-60a78592cbf9.pdf

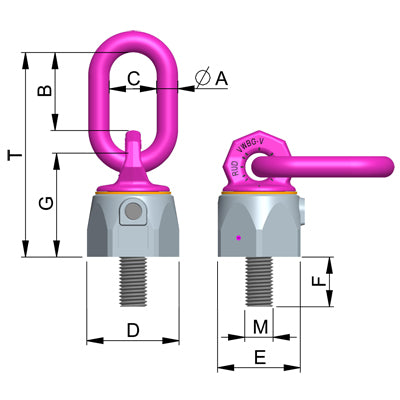

Model	Product Code	Weight (kg)	Nominal WLL (kg)	T (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	M (mm)
VWBG-V 0.3t-M8	7103720	0.18	300kg	76	8	31	29	30	28	13	36	M8
VWBG-V 0.45t-M10	7103715	0.29	450kg	78	8	31	29	33.5	30	17	38	M10
VWBG-V 0.6t- M12	7100180	0.41	600kg	107	10	49	35	42	36	21	47	M12
VWBG-V 1t - M14	8600337	0.63	1000kg	114	13	46	38	48	41	21	56	M14
VWBG-V 1.3t- M16	7100430	0.69	1300kg	114	13	46	38	48	41	25	56	M16
VWBG-V 1.8t-M18	8600338	1.18	1800kg	137	13	54	35	62	55	27	67	M18
VWBG-V 2t - M20	7100800	1.42	2000kg	137	13	54	35	62	55	33	67	M20
VWBG-V 2t - M22	8600334	1.45	2000kg	137	13	54	35	62	55	33	67	M22
VWBG-V 3.5t- M24	7100640	2.63	3500kg	173	18	66	40	81	70	40	88	M24
VWBG-V 3.5t M27	8600335	2.65	3500kg	173	18	66	40	81	70	41	88	M27
VWBG-V 5t - M30	7100650	5.09	5000kg	221	22	90	50	99	85	50	106	M30
