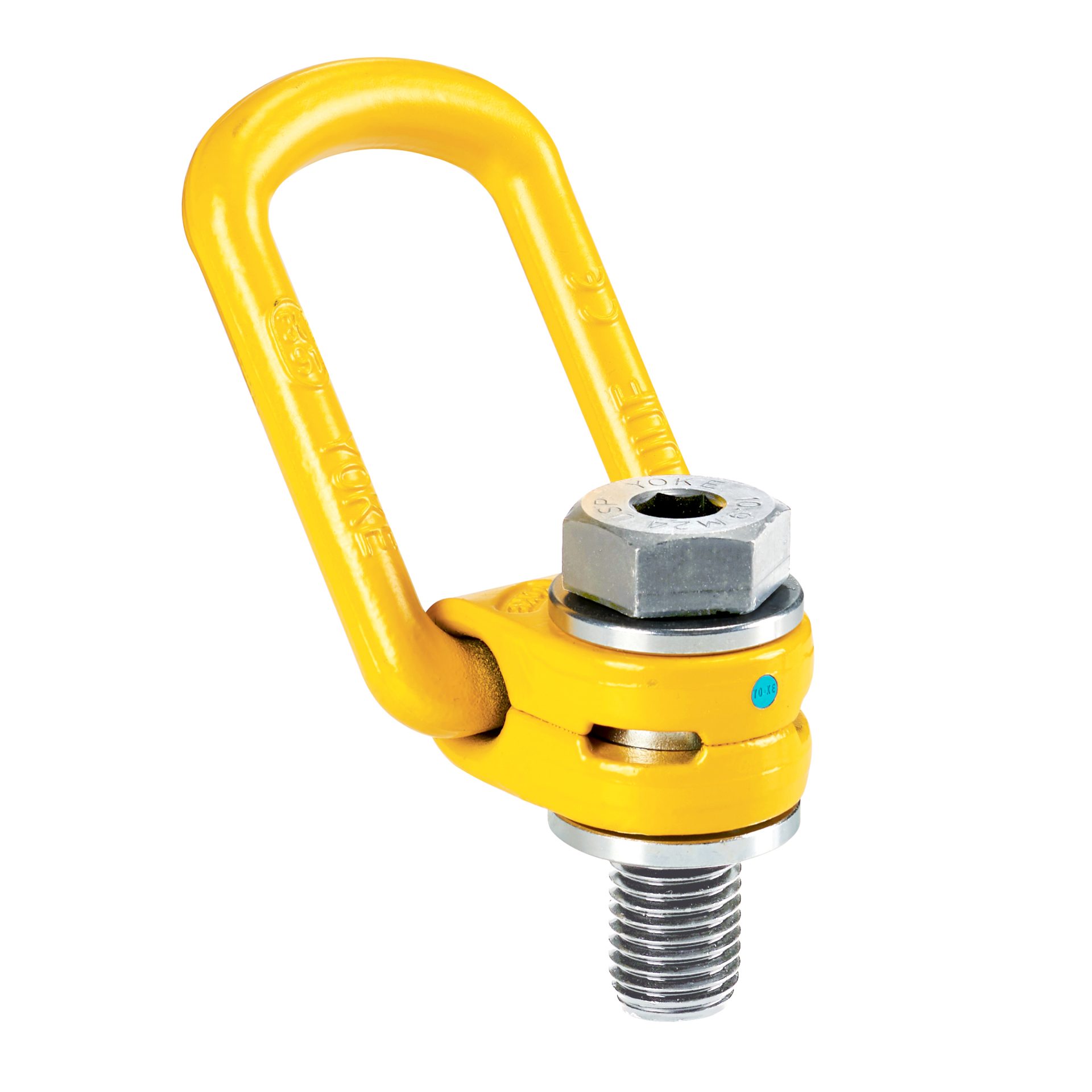

Yoke Swivel Lifting Point UNC Thread

The Yoke eye bolt range starts with an 1/2" thread, with other common standard sizes increasing up to 1-1/2".They are available with both standard-length and extended-length bolts, with the longer bolt versions also being cut to a specific length, if required.

Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
Manufactured from alloy steel, quenched and tempered.
Manufactured and tested in accordance with EN1677-1.
Load rated parts forged are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are Metric thread 10.9.
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
Design Factor 4:1.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Quick and simple assembly, just a tapped hole is required.
heavy duty flexible attachment points.
Mold and die handling.
Pump and valve handling

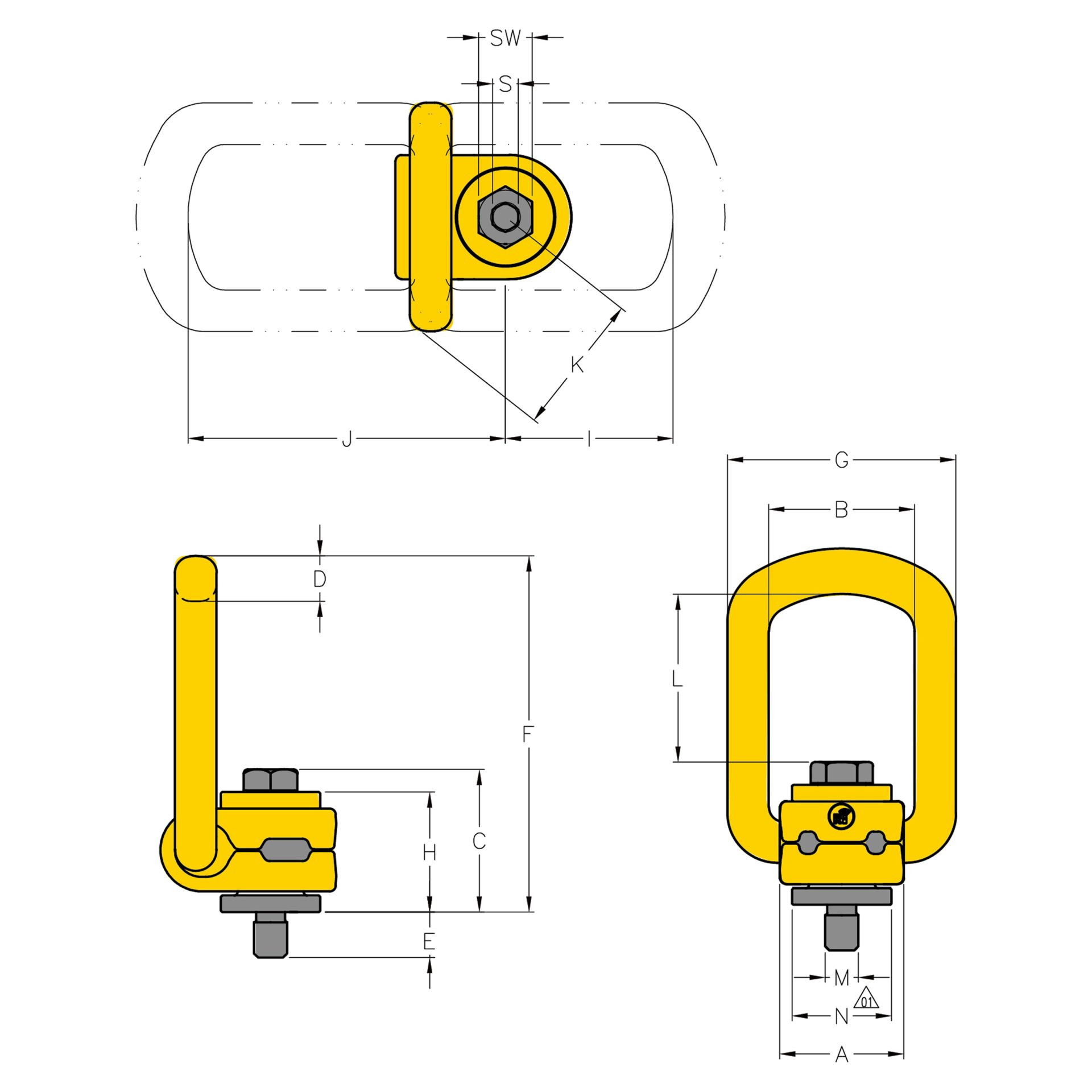

Product Code	Capacity (tonne)	Thread version		TPI	Dimensions (inch)														Torque in (Nm)	Net Weight (lbs)
Product Code	Capacity (tonne)	M (inch)	E (inch)	TPI	A	B	C	D	F	G	H	S	SW	I	J	K	L	N	Torque in (Nm)	Net Weight (lbs)
8-212-010	1.0	1/2	0.94	13.0UNC	1.30	1.48	1.73	0.53	3.90	2.24	1.42	5/16	3/4	1.74	3.49	1.49	1.62	1.22	100	1
8-212-015	1.5	5/8	1.14	11.0UNC	1.30	1.48	1.81	0.53	3.90	2.24	1.42	3/8	15/16	1.76	3.49	1.47	1.56	1.22	150	1.3
8-212-020	2.5	3/4	1.46	10.0UNC	1.97	2.12	2.16	0.65	5.58	3.22	1.69	1/2	1 1/8	2.90	5.23	2.07	2.77	1.93	200	2.9
8-212-025	2.5	7/8	1.46	9.0UNC	1.97	2.12	2.24	0.65	5.58	3.22	1.69	5/8	1 5/16	2.90	5.23	2.07	2.69	1.93	250	2.8
8-212-040	4.0	1	1.61	8.0UNC	1.91	2.13	2.34	0.65	5.62	3.22	1.73	5/8	1 1/2	2.87	5.26	2.09	2.63	1.77	400	4.3
8-212-050	5.0	1 1/4	2.11	7.0UNC	2.36	2.56	3.21	0.89	6.70	3.90	2.42	7/8	1 7/8	3.14	6.00	2.53	2.60	2.32	500	6.8
8-212-080	8.0	1 1/2	2.44	6.0UNC	3.03	3.35	4.01	1.04	8.85	4.88	3.07	1	2 1/4	4.42	8.04	3.15	3.80	2.72	800	12.9

Kind of attachment
Number of legs	1	2	1	2	2	2	2	3-4	3-4	3-4
Load direction	0°	0°	90°	90°	0-45°	45°-60°	unsymm.	0-45°	45°-60°	unsymm.
Product Code	WLL (t)
8-212-010	1.0	2	1.0	2	1.4	1.0	1.0	2.10	1.50	1.0
8-212-015	1.5	3	1.5	3	2.1	1.5	1.5	3.15	2.25	1.5
8-212-020	2.5	5	2.5	5	3.5	2.5	2.5	5.25	3.75	2.5
8-212-025	2.5	5	2.5	5	3.5	2.5	2.5	5.25	3.75	2.5
8-212-040	4.0	8	4.0	8	5.6	4.0	4.0	8.40	6.00	4.0
8-212-050	5.0	10	5.0	10	7.0	5.0	5.0	10.5	7.50	5.0
8-212-080	8.0	16	8.0	16	11.2	8.0	8.0	16.8	12.0	8.0

On Sale

Yoke 8-212 Lifting Point UNC Thread

From: £50.40Ex. VAT ~~£56.00~~

Est. lead time to dispatch: 1-2 days

Heavy-duty forged anchor point. it delivers high strength, smooth operation, and reliable performance in demanding lifting and rigging applications.

- Capacity: 1t to 8t

- Thread diameter: 1/2" to 1-1/2"

- Safety factor: 4:1

CODE | CAPACITY | THREAD SIZE
