Yoke Type 231L Swivel Hoist Ring Long Shank Metric

From: £73.80Ex. VAT ~~£82.00~~

Heavy-duty forged anchor point. it delivers high strength, smooth operation, and reliable performance in demanding lifting and rigging applications.

- Capacity: 0.5t to 20t

- Thread diameter: M8 to M48

- Safety factor: 4:1

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

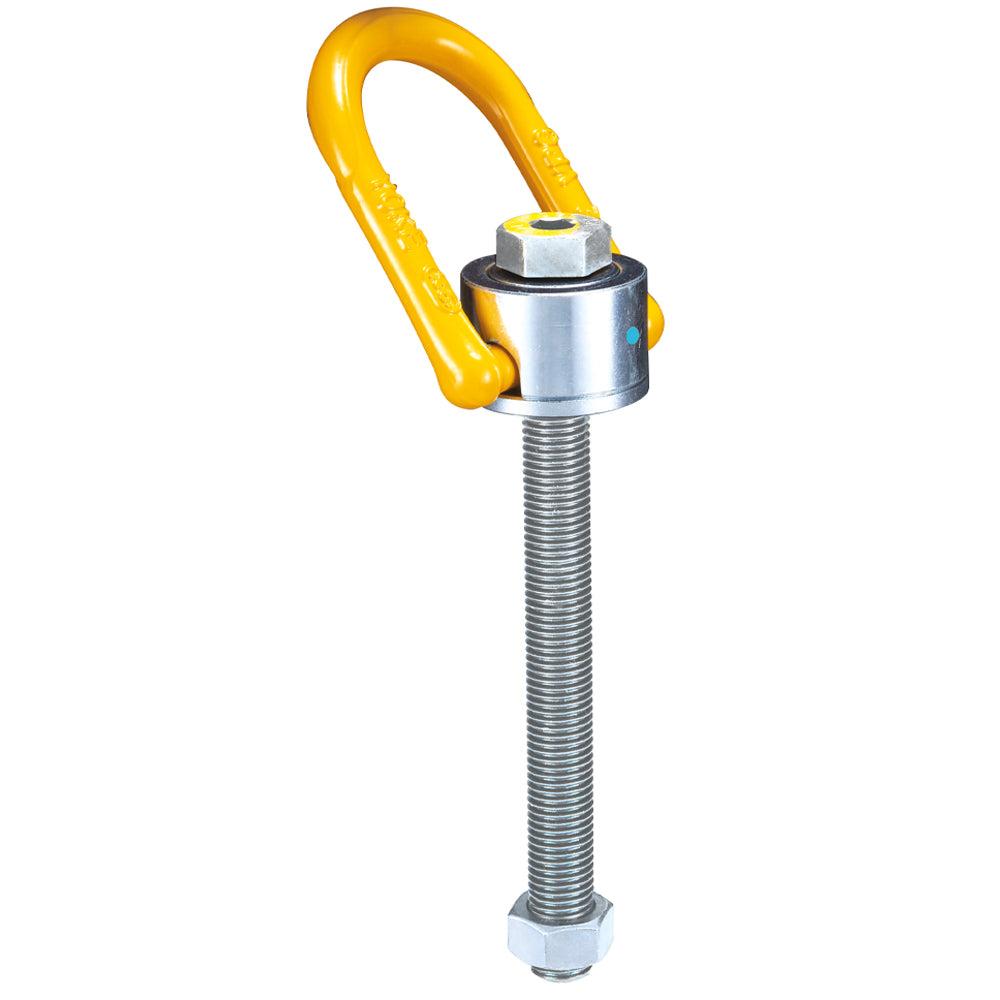

Yoke Swivel Hoist Ring Long Shank Metric Thread

The Yoke eye bolt range starts with an M8 thread, with other common standard sizes (M10, M12, M16, M20, M24, M30, M36, etc.) increasing up to M64.They are available with both standard-length and extended-length bolts, with the longer bolt versions also being cut to a specific length, if required.

Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are Metric thread
Proof tested to 2.5 times the WLL
Fatigue rated to 20,000 cycles at 1.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Quick and simple assembly, just a tapped hole is required

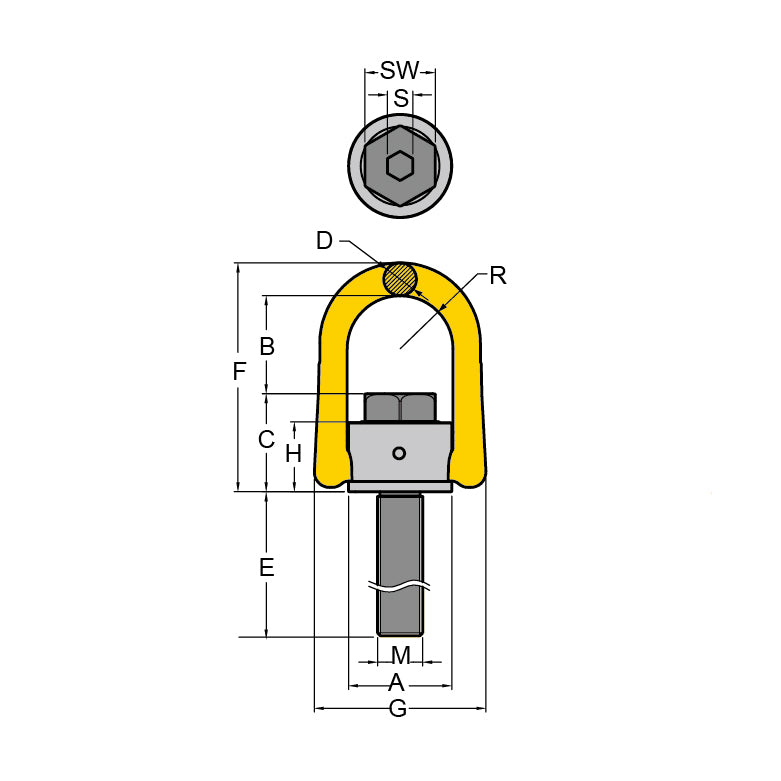

Product Code	Capacity (tonne)	Thread version		Pitch	Dimensions (mm)											Torque in (Nm)	Net Weight (kg)
Product Code	Capacity (tonne)	M (mm)	E (mm)	DIN13	A	B	C	D	F	G	H	R	S	SW	I	Torque in (Nm)	Net Weight (kg)
8-231-005/105L	0.5	M8	83	1.25	33	42	28	11	80	58	23	17	6	13	44	30	0.3
8-231-007/125L	0.7	M10	103	1.50	33	41	29	11	80	58	23	17	6	17	44	60	0.3
8-231-010/150L	1.0	M12	128	1.75	33	39	31	11	80	58	23	17	8	19	44	100	0.4
8-231-020/185L	2.0	M16	149	2.00	50	54	46	17	116	90	36	27	10	24	63	150	1.0
8-231-030/230L	3.0	M20	194	2.50	51	52	49	17	116	90	37	27	12	30	63	250	2.0
8-231-050/265L	5.0	M24	222	3.00	72	81	59	25	163	126	45	37	14	36	88	400	2.8
8-231-078/340L	7.8	M30	278	3.50	87	94	81	30	204	148	62	46	17	46	110	500	4.8
8-231-125/300L	12.5	M36	226	4.00	109	112	98	36	248	188	75	57	22	55	128	1000	10.6
8-231-156/350L	15.6	M42	268	4.50	110	101	108	36	248	188	82	57	24	65	128	1500	11.3
8-231-200/385L	20.0	M48	303	5.00	110	97	112	36	248	188	82	57	27	75	128	2000	13.3

Kind of attachment
Number of legs	1	2	1	2	2	2	2	3-4	3-4	3-4
Load direction	0°	0°	90°	90°	0-45°	45°-60°	unsymm.	0-45°	45°-60°	unsymm.
Product Code	WLL (t)
8-231-005/105L	0.8	1.6	0.5	1.0	0.7	0.5	0.5	1.10	0.80	0.5
8-231-007/125L	1.2	2.4	0.7	1.4	1.0	0.7	0.7	1.50	1.10	0.7
8-231-010/150L	1.5	3.0	1.0	2.0	1.4	1.0	1.0	2.10	1.50	1.0
8-231-020/185L	3.2	6.4	2.0	4.0	2.8	2.0	2.0	4.20	3.00	2.0
8-231-030/230L	4.5	9.0	3.0	6.0	4.2	3.0	3.0	6.30	4.50	3.0
8-231-050/265L	9.0	18.0	5.0	10.0	7.0	5.0	5.0	10.50	7.50	5.0
8-231-078/340L	12.0	24.0	7.8	15.6	10.9	7.8	7.8	16.40	11.70	7.8
8-231-125/300L	14.0	28.0	12.5	25.0	17.5	12.5	12.5	26.30	18.80	12.5
8-231-156/350L	16.0	32.0	15.6	31.2	21.8	15.6	15.6	32.80	23.40	15.6
8-231-200/385L	20.0	40.0	20.0	40.0	28.0	20.0	20.0	42.00	30.00	20.0

On Sale

Yoke Type 231L Swivel Hoist Ring Long Shank Metric

From: £73.80Ex. VAT ~~£82.00~~

Est. lead time to dispatch: 1 Day

Heavy-duty forged anchor point. it delivers high strength, smooth operation, and reliable performance in demanding lifting and rigging applications.

- Capacity: 0.5t to 20t

- Thread diameter: M8 to M48

- Safety factor: 4:1
