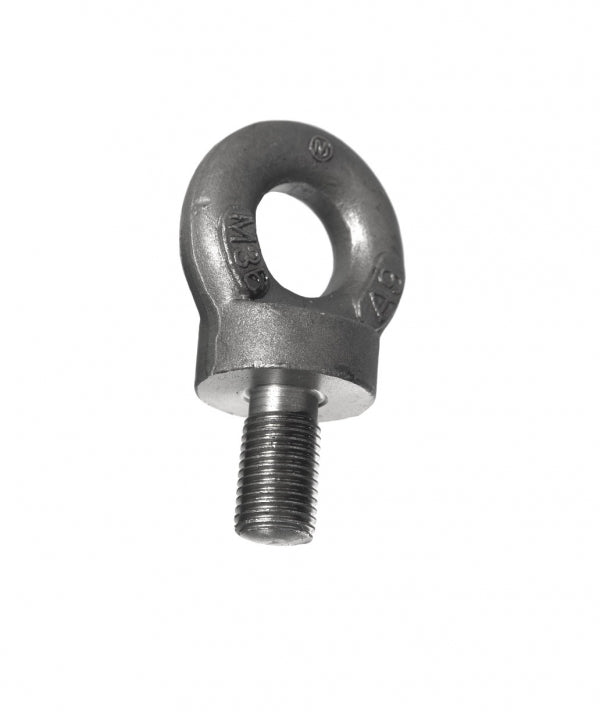

BS Metric Collar Eyebolts Standard Shank

Frequently bought together

BS Metric Collar Eyebolts Standard Shank

From: £3.10Ex. VAT

British Standard collar eyebolts manufactured with a standard shank, designed for safe and reliable lifting operations.
- M8 to M36

- Specification: BS 4278: Table 1 1984

- Hardened & Tempered

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

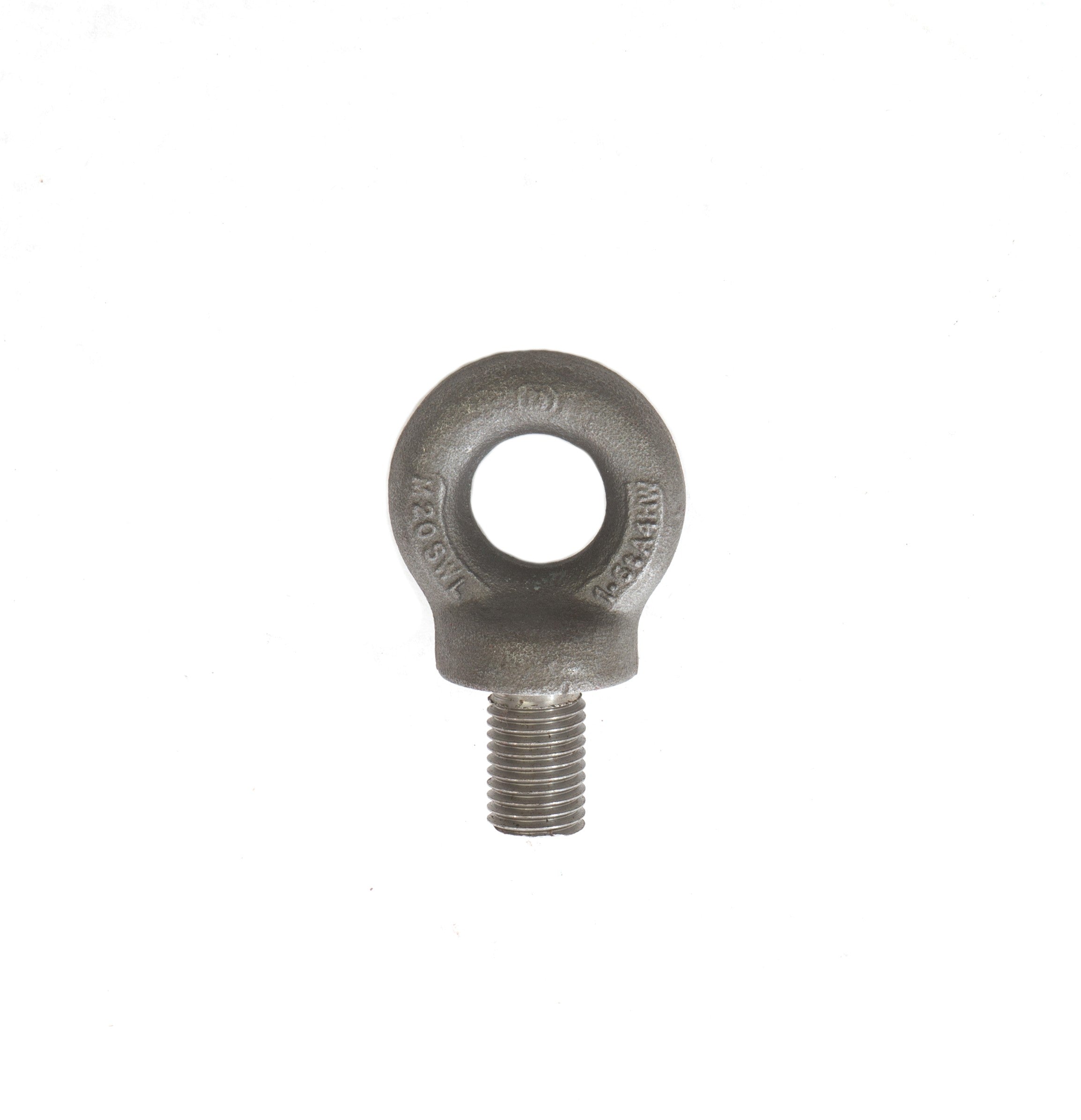

BS Collar Eyebolts STD Shank

British Standard collar eyebolts manufactured with a standard shank, designed for safe and reliable lifting operations. Produced from hardened and tempered steel in accordance with BS 4278, these eyebolts offer high strength and durability for demanding lifting applications.

The stated working load limit (WLL) is based on a 0° vertical lift, as specified in BS 4278:1984, Table 1. Supplied complete with the relevant certification, ensuring full compliance and traceability for safety-critical use.

Material: As Specified by BS 4278 Hardened & Tempered
WLL: shown at 0o (Vetical) angle of lift
Specification: BS 4278: Table 1 1984
Certificates: Supplied with relevant certificates.

WWL (tonnes)	Thread Size	Weight Each (kgs)
0.15	M8	0.06
0.25	M10	0.06
0.4	M12	0.07
0.8	M16	0.16
1.6	M20	0.44
1.6	M22	0.80
2.5	M24	0.85
4	M30	1.66
6.3	M36	3.17
10	M48	9
12.5	M52	9
16	M56	13
20	M64	17.5
25	M72	31

WWL (tonnes)	B(mm)	E(mm)	F(mm)	G(mm)	H(mm)
0.15	22	15	9	20	18
0.25	22	15	9	20	18
0.4	22	15	9	20	18
0.8	29	20	12	26	23
1.6	40	27	16	36	32
2.5	52	35	21	46	40
4	65	44	26	58	51
6.3	81	54	32	72	63
10	101	68	40	90	79
12.5	115	76	46	102	89
16	128	86	51	114	100
20	144	96	58	128	112
25	162	108	65	144	126

SAFETY NOTE: EYEBOLTS UNDER M12 ARE NOT RECOMMENDED FOR LIFTING

BS Metric Collar Eyebolts Standard Shank

Name: BS Metric Collar Eyebolts Standard Shank
Brand: Rope & Marine Services
SKU: EBM-1-10
Price: 3.1 GBP
Availability: InStock

From: £3.10Ex. VAT

Est. lead time to dispatch: Same Day Before 1pm

British Standard collar eyebolts manufactured with a standard shank, designed for safe and reliable lifting operations.
- M8 to M36

- Specification: BS 4278: Table 1 1984

- Hardened & Tempered

THREAD SIZE | CAPACITY
