Globestock G.Guard 300kg Load Arrestor GSE300

Frequently bought together

On Sale

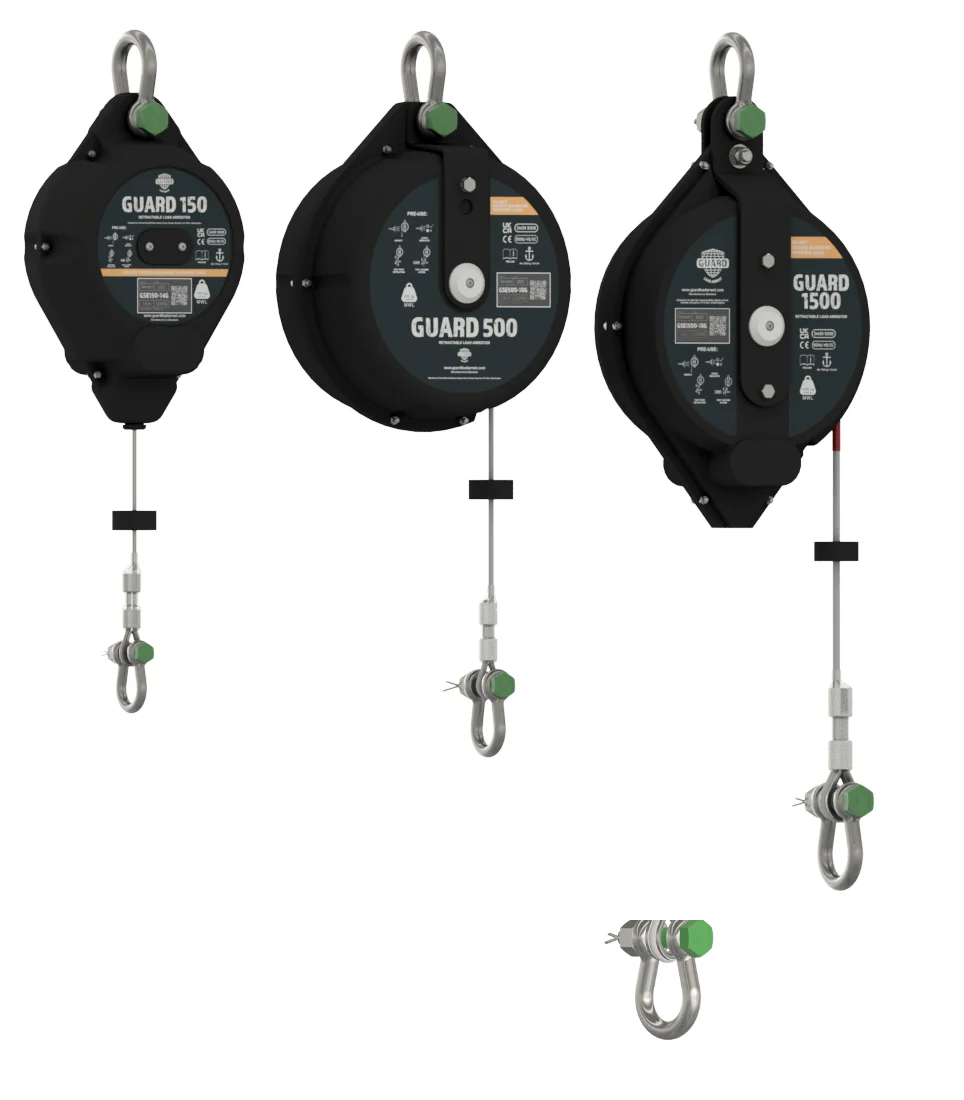

Globestock GUARD Load Arrestor

From: £474.05Ex. VAT ~~£499.00~~

GUARD load arrestor devices are heavy duty fall arrest blocks for protecting equipment that is suspended at height. A high strength, retractable rope, enables them to protect both mobile and static loads.

Options available to protect loads from 150 kg to 1,500 kg
Rope lengths up to 25 m (82 ft)
Shock absorbing brake protects loads during arrest

Green Pin® Bow Shackle BN - Standard bow shackle with safety bolt

From: £4.10Ex. VAT

The Green Pin®Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin.

- Capacity 0.5t to 85t

- Double safety (cotter pin & safety bolt)

- Galvanization assures long-term durability

Total: £0.00

GUARD Load Arrestor Range

Globestock’s Guard series of load arrestors is a reliable system for automatically stopping the fall of an overhead load, protecting the load whilst at the same time reducing the chance of injury to anyone nearby. If the load enters into free-fall, the cable is pulled out at an accelerating rate; when the activation speed is reached, the braking system engages, bringing the load to a smooth and cushioned stop.

The Guard is a retractable, tensioned safety line for protection of machinery, high value and sensitive loads. Load arrestors provide a backup safety system to protect a load at height and automatically stop its fall, should the primary means of support fail. This helps to reduce hazards in the area below the load.

The fall protection brake can be activated by quickly extracting the safety line from within the arrestor housing. This happens when a fall occurs. The fall protection brake includes a shock-absorbing element to minimise the forces encountered when stopping a falling load.

Guard load arresters are suitable for protecting both static and moving loads in a wide variety of applications. They offer an off-the-shelf solution for stopping moving loads.

Guard load arrestors are used extensively in industry, car production lines, material handling & lifting, pillar lifts, theatres, stage production, nuclear power stations, sound systems, chandelier fitting, sports halls, and many more applications. Galvanised steel cable comes as standard, with the option to upgrade to a stainless steel cable.

Options available to protect loads from 150 kg (330 lbs) to 1,500 kg (3,300 lbs)
Rope lengths up to 25 m (82 ft)
Shock absorbing brake protects loads during arrest
Fall indicator lens for easy monitoring
Galvanised or stainless steel rope options
Self retracting rope

Name	ITEM CODE	Max. Working Load		Min. Working Load		Rope Length		Wire Rope Material	Minimum Anchor Strength		Maximum Running Speed
Name	ITEM CODE	kg	lbs	kg	lbs	m	ft	Wire Rope Material	kN	lbf	m s-1	ft s-1
GUARD150	GUARD150-14G	150	330	10	22	14	46	Galvanised Steel	7.4	1,663	1	3.280
GUARD150	GUARD150-14S	150	330	10	22	14	46	Stainless Steel	7.4	1,663	1	3.280
GUARD300	GUARD300-10G	300	660	50	110	10	33	Galvanised Steel	14.1	3,169	0.7	2.297
	GUARD300-10S	300	660	50	110	10	33	Stainless Steel	14.1	3,169	0.7	2.297
	GUARD300-25G	300	660	50	110	25	82	Galvanised Steel	14.1	3,169	0.7	2.297
	GUARD300-25S	300	660	50	110	25	82	Stainless Steel	14.1	3,169	0.7	2.297
GUARD500	GUARD500-10S	500	1,100	100	220	10	33	Stainless Steel	20.6	4,631	0.7	2.297
	GUARD500-24S	500	1,100	100	220	24	79	Stainless Steel	20.6	4,631	0.7	2.297
	GUARD500-10G	500	1,100	100	220	10	33	Galvanised Steel	20.6	4,631	0.7	2.297
	GUARD500-24G	500	1,100	100	220	24	79	Galvanised Steel	20.6	4,631	0.7	2.297
GUARD800	GUARD800-10S	800	1,760	150	330	10	33	Stainless Steel	45.1	10,123	0.6	1.969

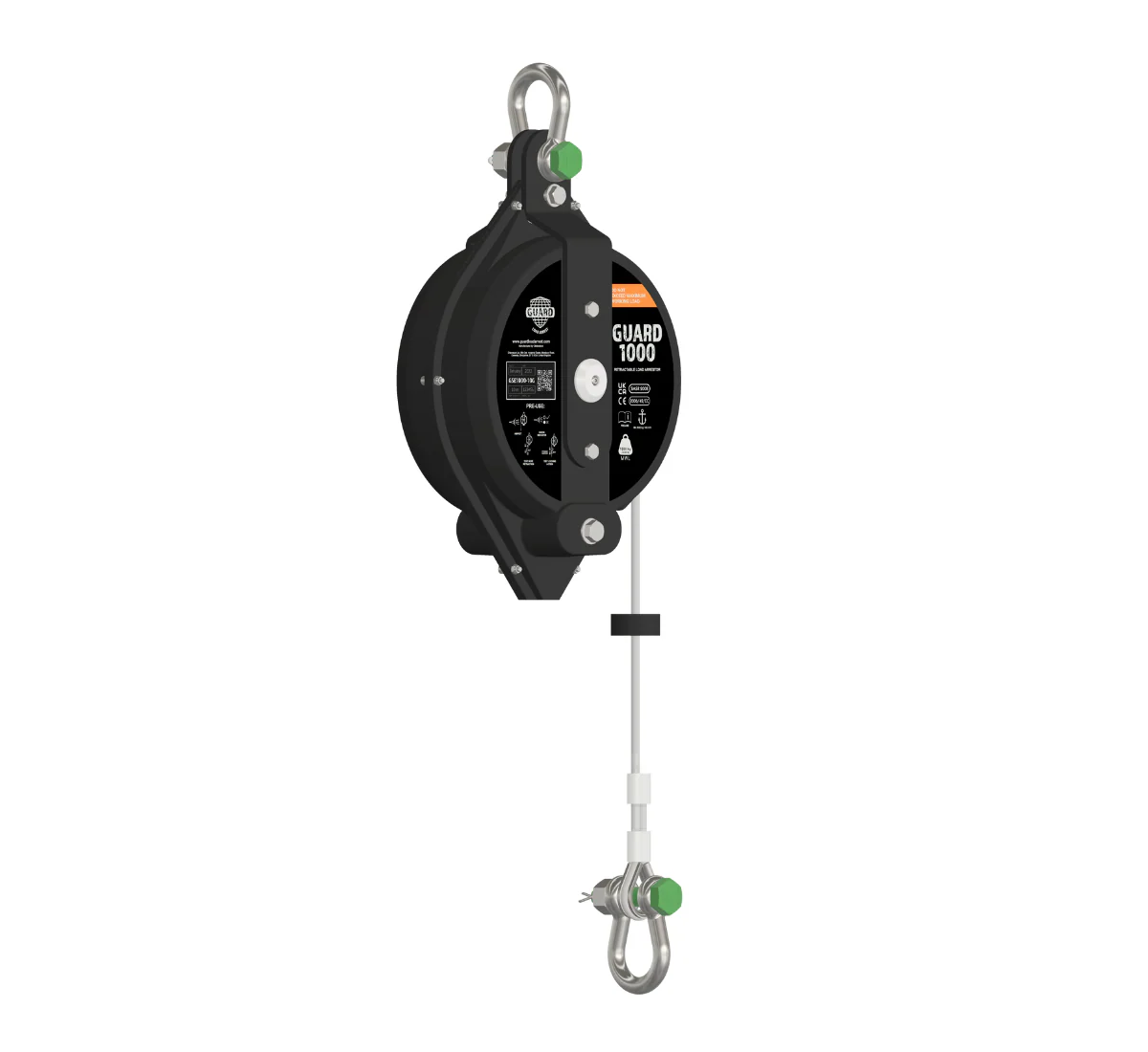

GUARD1000	GUARD1000-10G	1000	2,200	150	330	10	33	Galvanised Steel	45.1	10,123	0.6	1.969
GUARD1500	GUARD1500-10G	1500	3,300	200	440	10	33	Galvanised Steel	63.3	14,230	0.6	1.969
