LB wire rope winches

Capacities: 150 - 1200kg (up to 900kg in stainless steel)

Originally developed as an off-road winch, the console-mounted winch model LB is used today for a variety of lifting and pulling applications. The LB is our best-selling range of winches designed for maximum versatility & efficiency.

Options:

free-wheeling device for a quick manual unrolling of the unloaded rope.
variable cranks

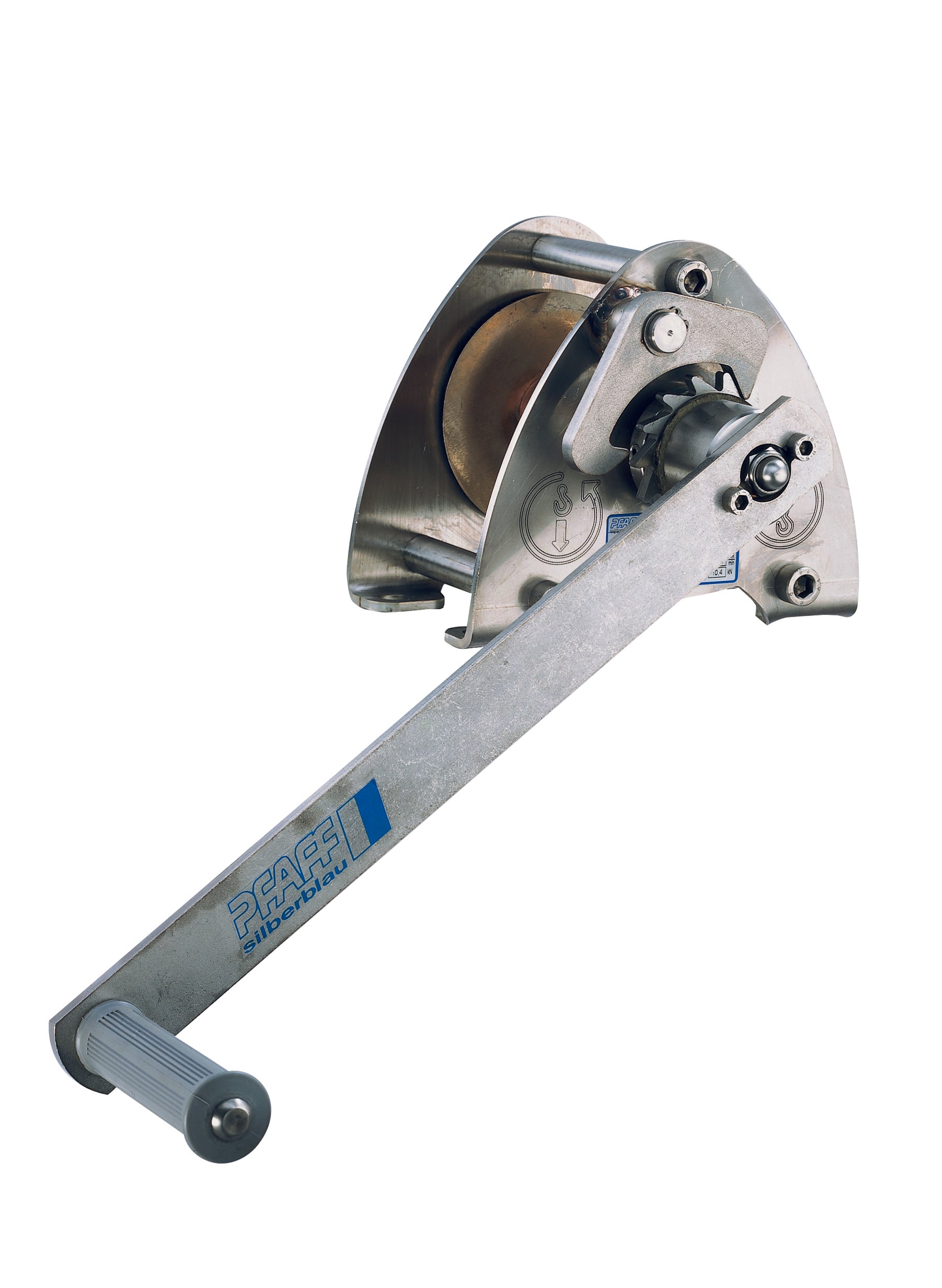

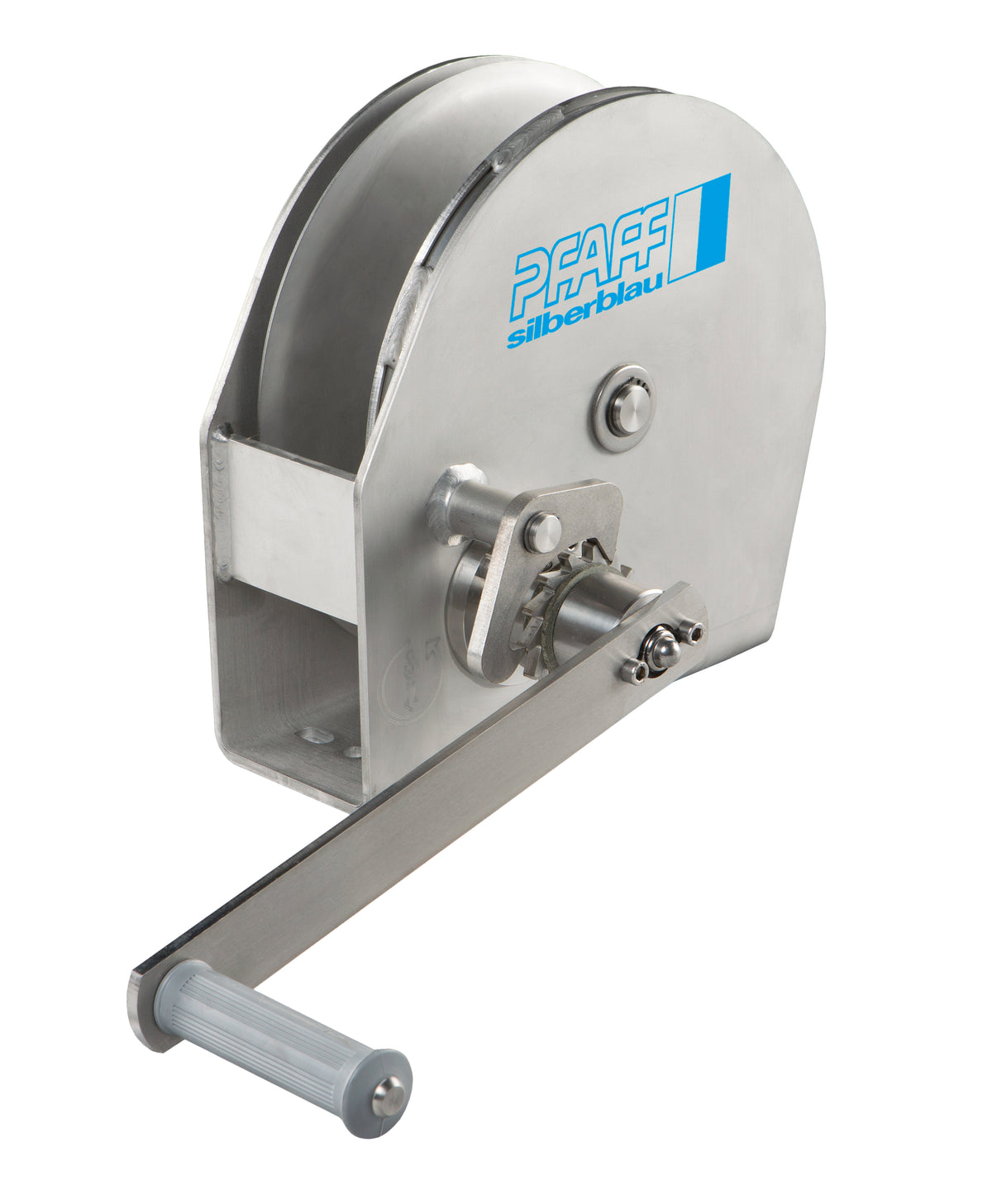

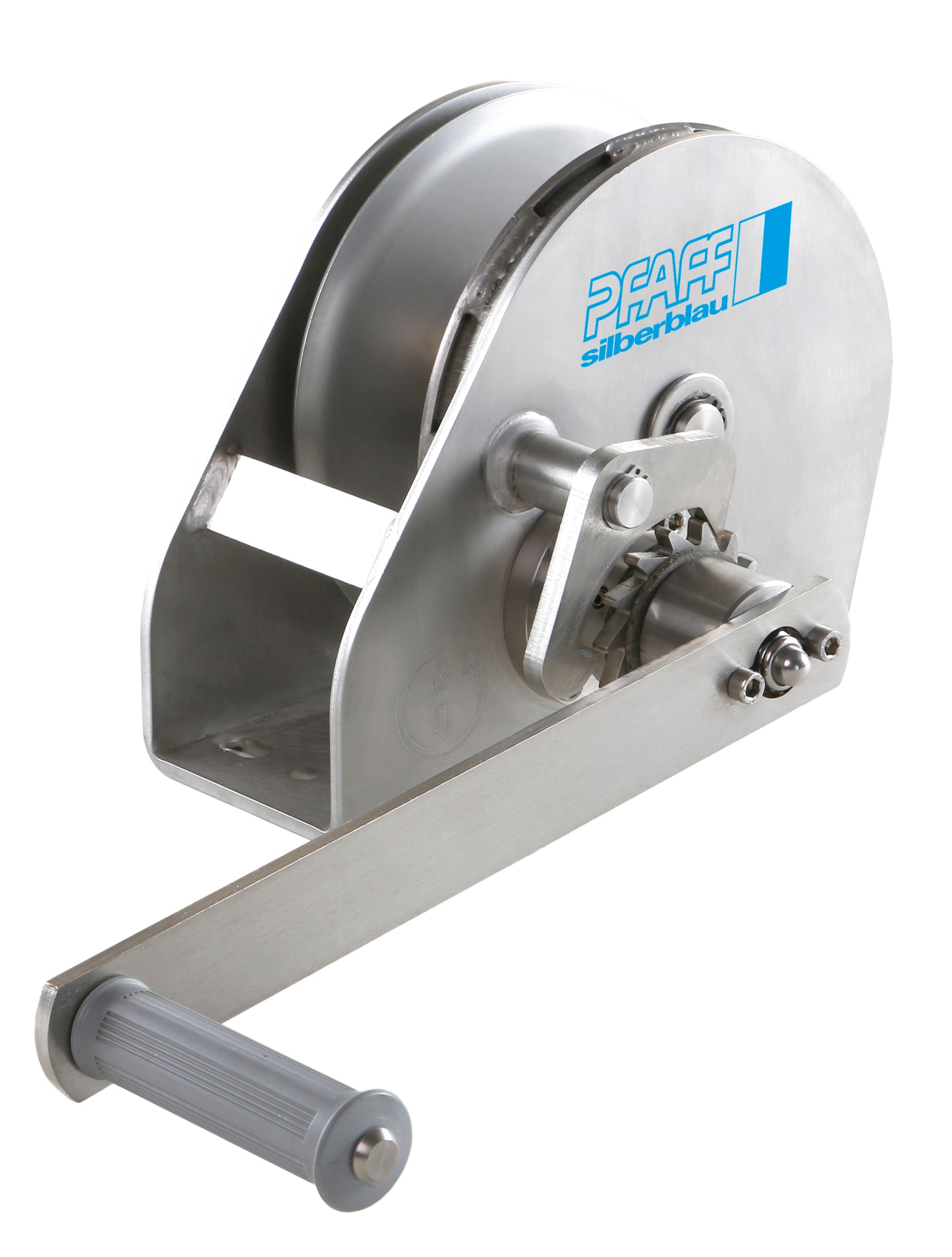

stainless steel version for increased corrosion protection.
Very lightweight design.
Fitted with load pressure brake to prevent unintentional lowering of load.
High efficiency obtained by spur gears.
Column or base-mounting.

Light weight robust stamped steel housing.
Spur Gear Drive provides optimal efficiency and comfortable handling.
Automatic Load Pressure Brake Safely holds load in any position and prevents unintentional brake release is.

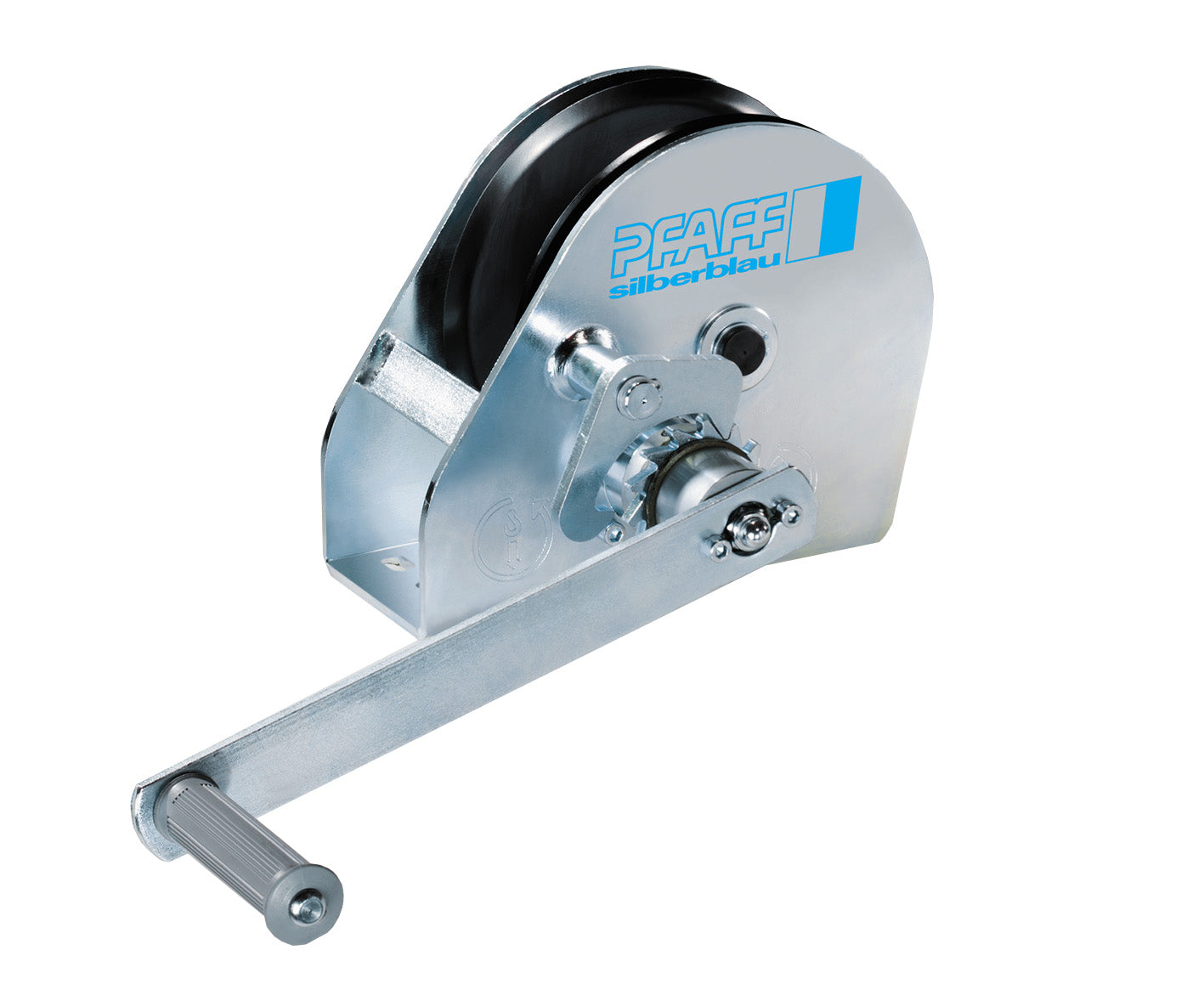

Corrosion Prevention all parts are zinc-plated for increased corrosion protection, and the drum also has special coating. Optional stainless steel versions are available.
Easy Installation, easy and quick mounting to consoles, even under lifting conditions.

Model	Art.-No.	Capacity 1st Layer kg	Capacity top layer kg	Rope diameter mm	Useable rope length 1st layer m	Useable rope length top layerm	Lift per crank rotation mm	Required crank effort daN	Weight without rope kg
LB 150 VZ	30239016	150	75	4	0.8	11	125	17	4.2
LB 350 VZ	30239015	350	170	4	1.8	20	125	25	4.8
LB 650 VZ	41238004	650	290	6	1	20	55	22	7.3
LB 900 VZ	41239006	900	400	7	0.8	14	58	24	10
LB 1200 VZ	42239008	1200	430	7	1	26	45	24	12.1
LB 250 VA	32239017	250	125	4	1.8	19.5	125	20	4.8
LB 650 VA	42239012	650	290	6	1	20	55	22	7.6
LB 900 VA	32239013	900	320	7	1	26	45	24	12.1

Model	LB 150 VZ	LB 350 VZ	LB 650 VZ	LB 900 VZ	LB 1200 VZ	LB 250 VA	LB 650 VA	LB 900 VA
A, mm	–	–	232	232	273	–	232	273
B, mm	155	155	192	192	266	155	192	266
C, mm	175	175	210	210	240	175	210	240
Ø D, mm	36	36	63.5	63.5	63.5	36	63.5	63.5
Ø E, mm	100	100	183	183	255	100	183	255
F, mm	–	–	100	100	78	–	100	78
G, mm	75	75	58	58	75	75	58	75
H, mm	–	–	100	100	138	–	100	138
K, mm	159	189	192	192/226*	192/226*	191.5	190	190
L, mm	–	–	25	25	35	–	25	35
M, mm	45	75	38	38	30	75	38	30
N, mm	–	–	–	–	53	–	–	53
O, mm	200	320	250	320	320	320	250	250
P, mm	260	290	293	293/303*	293/303*	292.5	291	291
Q, mm	81	111	95	95	95	111	95	95
R, mm	50	80	50	50	50	80	50	50
S, mm	48	63	55	55	55	65.5	55	55
