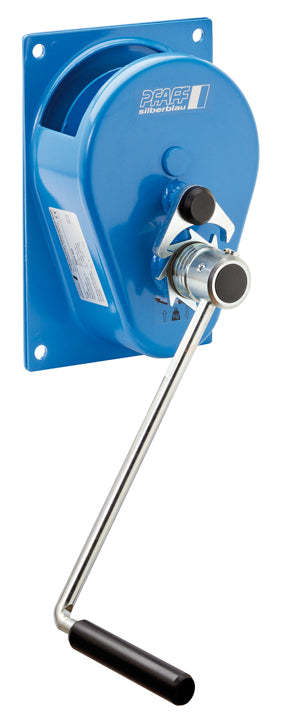

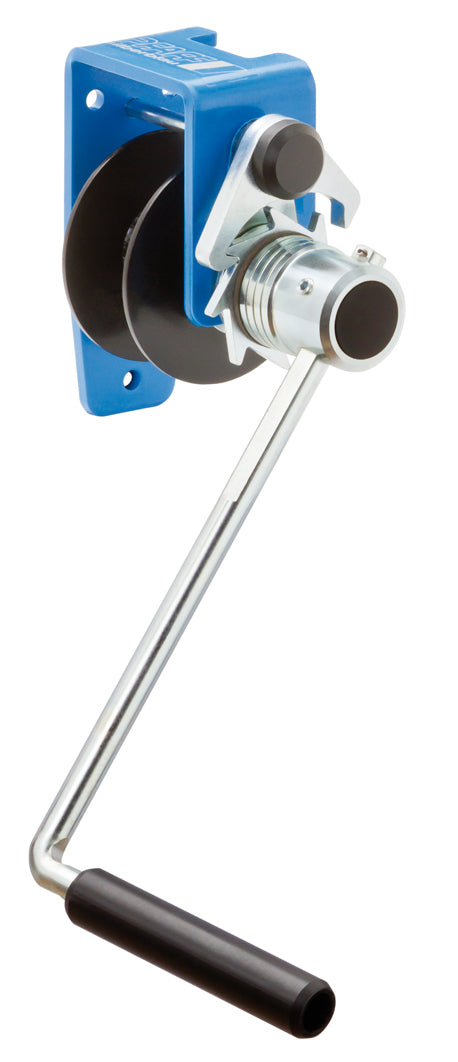

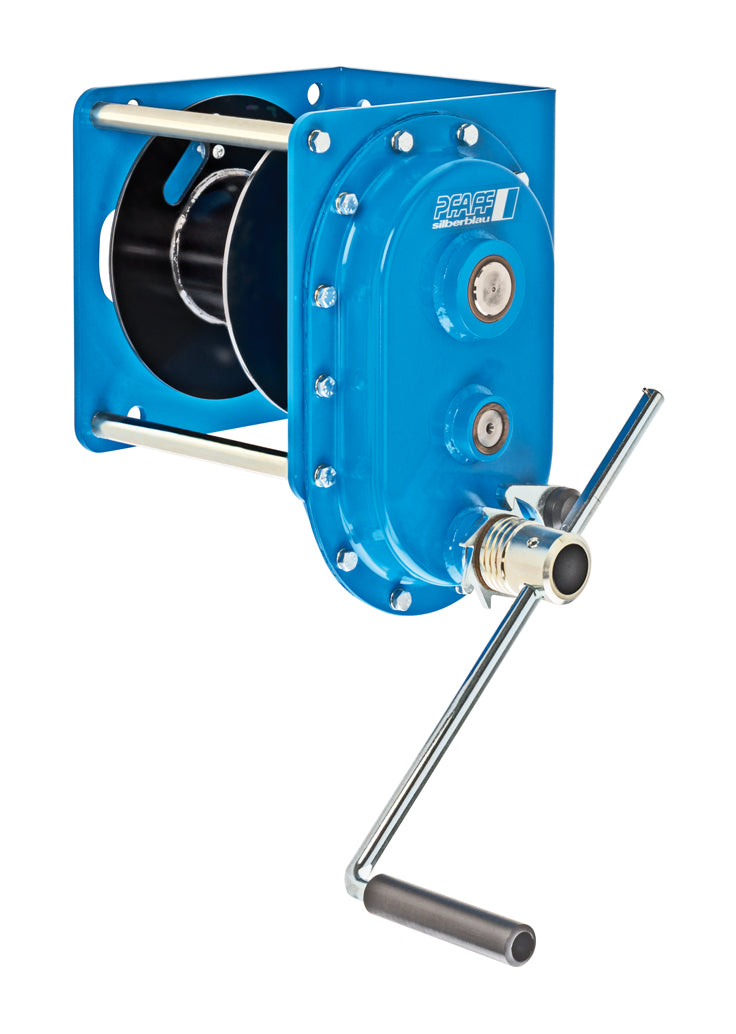

MWS, Manual winch with spur gear drive

Capacities: 150 - 1500kg

For the operation where no electricity is available or in a dirty environment.

Recommended rope diameter according to EN 12385 FE-znk 1770 sZ-spa. The rope is not included in the delivery

Enclosed gear drive for protection of internal parts, even under tough working conditions.
Spur gears on roller bearings, rope drum on plain bearings.
Compact design.
Easy and quick mounting onto walls, poles etc.
They have a self-locking, anti-kickback and adjustable crank
handle for fast lifting of smaller loads, resulting in lowest
possible handle effort and rapid winding of the rope.
Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake
release is prevented even with swinging loads.
They are suitable for operation in ambient temperatures of
-20°C up to +40°C.

Model	Art.-No.	Capacity 1st Layer kg	Capacity top layer kg	Required crank effort daN	Lift per crank rotation mm	Rope diameter mm	Useable rope length 1st layer m	Useable rope length top layer	Number of layers max.	Weight without rope kg
MWS 150	N02800013	150	67	11	122	4	0.8	13	8	4
MWS 300	N02800014	300	172	6	32	4	1.8	35	7	10
MWS 600	N02800015	600	366	10	28	6	1.2	12	6	11
MWS 1000	41239006	900	400	11	20	8	3	33	5	27
MWS 1500	42239008	1200	430	12	14	10	2.7	21	5	27.5

Dimensions	MWS 150	MWS 300	MWS 600	MWS 1000	MWS 1500
A, mm	65	200	200	219	219
B, mm	168	300	300	250	250
C, mm	128	268	268	212	212
D, mm	40	168	168	150	150
E, mm	303	318	318	484	484
F, mm	-	-	-	250	250
G, mm	26	-	-	30	30
H, mm	41	55	55	113	113
I, mm	-	-	-	170	170
Ø J, mm	35	70	60	102	102
K, mm	9	12	12	17	17
Ø L, mm	102	145	145	212	212
M, mm	168	182	182	130	130
N, mm	89	199	199	338	338
O, mm	92	96	96	44	44
P, mm	-	-	-	104	104
Q, mm	-	-	-	190	190
S, mm	129	129	129	129	129
