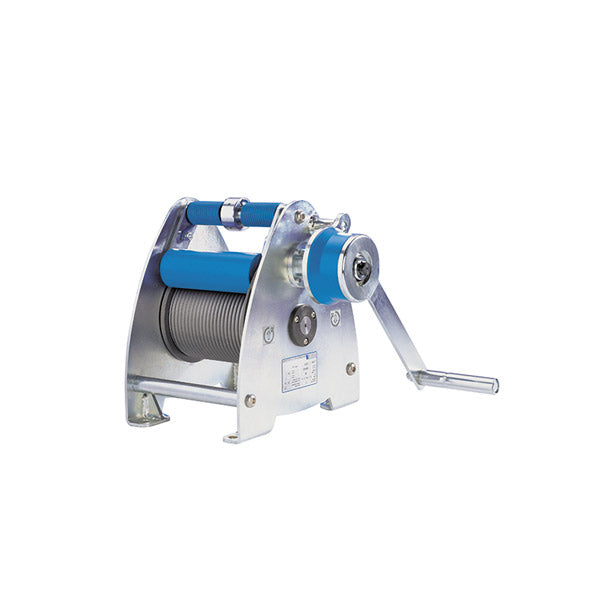

SW-K LAMBDA Wire Rope Winches

Capacity: 300kg

Strong, durable winch designed specially for safely moving loads above people. Conforms to German Safety Standard BGV C1 and is ideal for use in theatres, studios and warehouses.

Compact Aluminium Housing and Enclosed Sprocket Wheel Drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
Spur Gear Drive provides optimal efficiency and comfortable handling.
Enclosed Gear for protection of parts inside, also for arduous applications.
Low-Friction Shaft Sliding Bearings provide improved rope lead-off and a longer service life of the winch.
Wide Rope Drum for a large rope capacity with two rope attachment points.
Integrated Safety Spring Brake System and Removable Crank
Easy and Quick Mounting.

Technical_specification_SW-K-LAMBDA.pdf

Article no.	Lifting Capacity kg	Max. wire rope cap. in 1 layer m	Wire Rope Ø mm	Lift per crank rotation mm	Weight kg
030272015	300	10	6*	50	30
030272017	300	15	6*	50	36

*recommended steel rope: 6 DIN 3069 SE-znk 1960 sZ-spa, (breaking load of the rope min. 30.4 kN)

Article no.	030272015	030272017
A, mm	379	469
B, mm	310	310
C, mm	340	340
Ø D, mm	139.4	139.4
E, mm	180	270
F, mm	280	280
G, mm	175	265
Ø H, mm	13	13
J, mm	250	250
K, mm	130	130
