Hi-force HHR Double Acting Hollow Piston Cylinder | 33 to 247 tonnes

Frequently bought together

Hi-force HHR Double Acting Hollow Piston Cylinder | 33 to 247 tonnes

From: £1,172.00Ex. VAT

Capacities from 33 to 247 tonnes
Stroke lengths from 51 to 305 mm
Working pressure 700 bar

Hi-Force HP Range - Steel Hydraulic Pump

From: £275.00Ex. VAT

The HP manually operated pump range offers a choice of single or two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 700 bar and the range includes pump models suitable for use with either single acting cylinders or tools. The HP range offers the ideal solution for applications where completely independent, portable hydraulic power is required. With low handle effort characteristics for easy operation, all models are of strong durable construction. Hi-Force HP manually operated pumps have a proven track record industry wide and offer excellent value for money in portable hydraulic power. A full range of system components suitable for use with HP manually operated pumps are available.

Single or two speed operation
Durable steel construction
Working pressure 700 bar

Total: £0.00

HHR

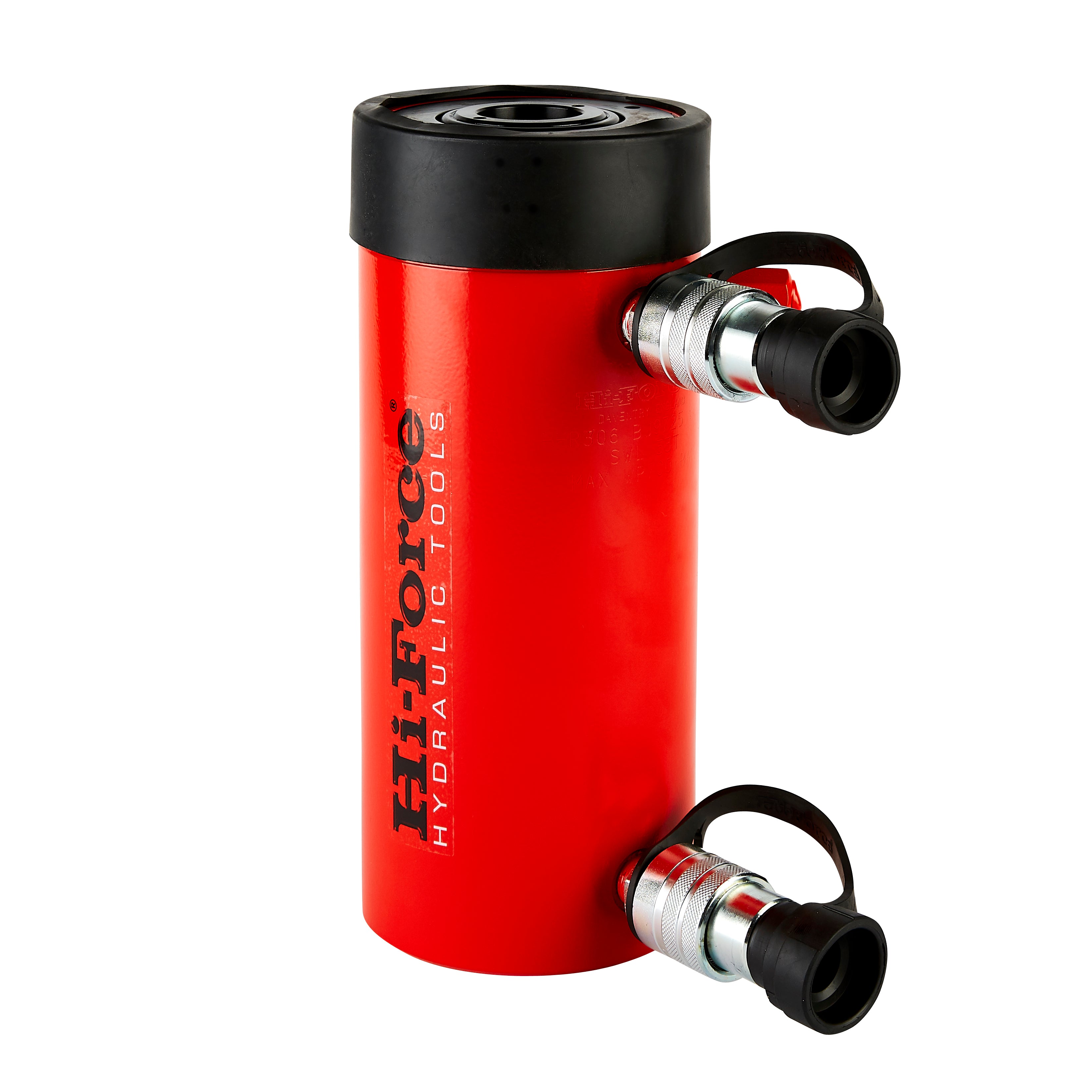

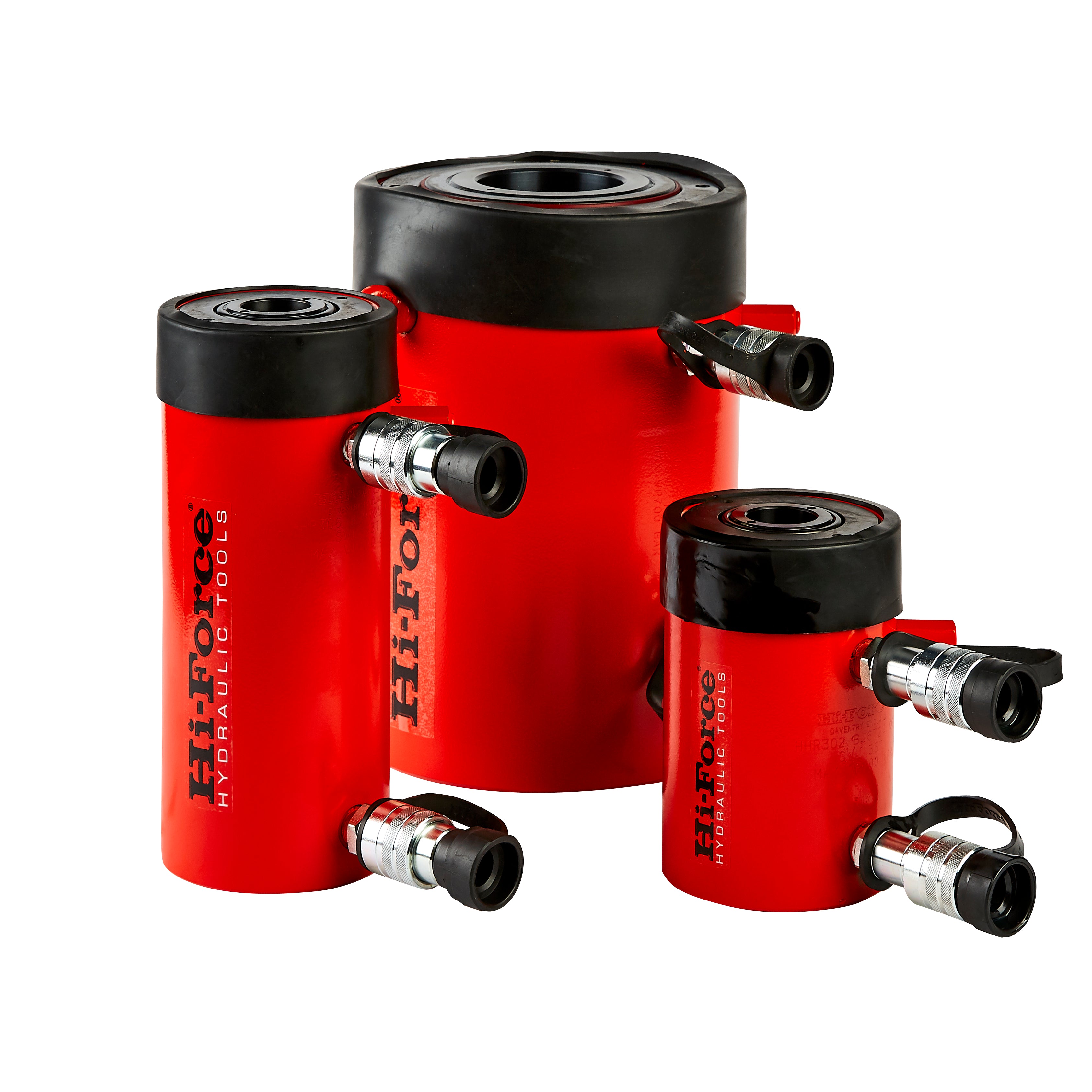

The HHR double acting hollow piston cylinder range incorporates all of the design features of the HHS range with the added benefit of double acting design, which greatly enhances speed of operation and performance particularly in the longer length stroke options. Additionally a substantial hydraulic pulling force is available in the piston retraction mode of operation. Standard range models are featured here, however other stroke and tonnage options are available on request.

Capacities from 33 to 247 tonnes
Stroke lengths from 51 to 305 mm
Working pressure 700 bar
Hollow piston design for tooling, maintenance and tensioning applications
Nitrocarburised piston rod
Annular area overload protection valve
Low friction bearing surfaces

Page_012_HHR.pdf

Model number	Push capacity (tonnes)	Pull capacity (tonnes)	Stroke (mm)	Oil capacity (cm³)	Cylinder eff. area (cm²)	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E	F (mm)	G	H (mm)	I (mm)	J (mm)
HHR302	33	24	51	238	46.7	12.2	180	115	60.3	35	4 ½"-12 UN	40	M8	92	28	119
HHR306	33	24	150	701	46.7	17.6	279	115	60.3	35	4 ½"-12 UN	40	M8	92	28	218
HHR3012	33	24	305	1424	46.7	25.7	434	115	60.3	35	4 ½"-12 UN	40	M8	92	28	373
HHR603	61	38	76	652	85.7	30.6	239	160	92	55	6 ¼"-12 UN	45	M12	130	31	166
HHR606	61	38	152	1304	85.7	41.6	315	160	92	55	6 ¼"-12 UN	45	M12	130	31	242
HHR6010	61	38	254	2179	85.7	52.5	417	160	92	55	6 ¼"-12 UN	45	M12	130	31	344
HHR1003	102	43	76	1087	143.1	68.5	310	213	140	80	8 ⅜"-12 UN	40	M16	178	82	234
HHR1006	102	43	152	2174	143.1	90.0	386	213	140	80	8 ⅜"-12 UN	40	M16	178	82	310
HHR1508	152	71	203	4320	212.8	170.0	503	270	184	102	n/a	n/a	n/a	n/a	98	389
HHR2508	247	76	203	7039	346.5	269.0	505	350	254	150	n/a	n/a	n/a	n/a	98	389
