Hi -force Controlled Manifold Assemblies

Frequently bought together

Hi -force Controlled Manifold Assemblies

From: £900.00Ex. VAT

Hi-Force controlled manifold units are designed specifically to allow easy control of the direction of flow of the hydraulic fluid, within a single acting or double acting system. These controlled manifold units are mounted in a sturdy framework and are available as 2-outlet or 4-outlet options and are supplied with pressure gauges, reading 0-700 bar, fitted to each outlet port. All models are fitted with quick connect couplings on all inlet and outlet ports, including the 2-Way and 4-Way open manifold return flow lines on double acting versions.

Working pressure 700 bar
Up to 4 outlets with individual control on each
Designed for single or double acting systems

Hi -force HLS Range Hydraulic Cylinder

From: £324.00Ex. VAT

The HLS low height cylinder range is the most widely used Hi-Force cylinder design in the world today. All models have spring assisted return pistons and combine low closed height with optimum stroke lengths. Offering a compact, powerful force for a wide variety of applications in many industries including power generation, ship building & repair, construction, railways, mining, steel works, oil & gas and many others. The HLS range offers a compact, portable option in an inexpensive package.

Capacities from 10 to 147 tonnes
Stroke lengths from 25 to 60 mm
Working pressure 700 bar

Total: £0.00

Working pressure 700 bar
Up to 4 outlets with individual control on each
Designed for single or double acting systems

Page_063_Controlled_Manifold_Assemblies.pdf

Model Number	Type	Weight kg	Dimensions in mm
Model Number	Type	Weight kg	A	B	C	D
HM2C-SU	2-Way controlled manifold unit, suitable for single acting systems	2.0	150	148	228	100

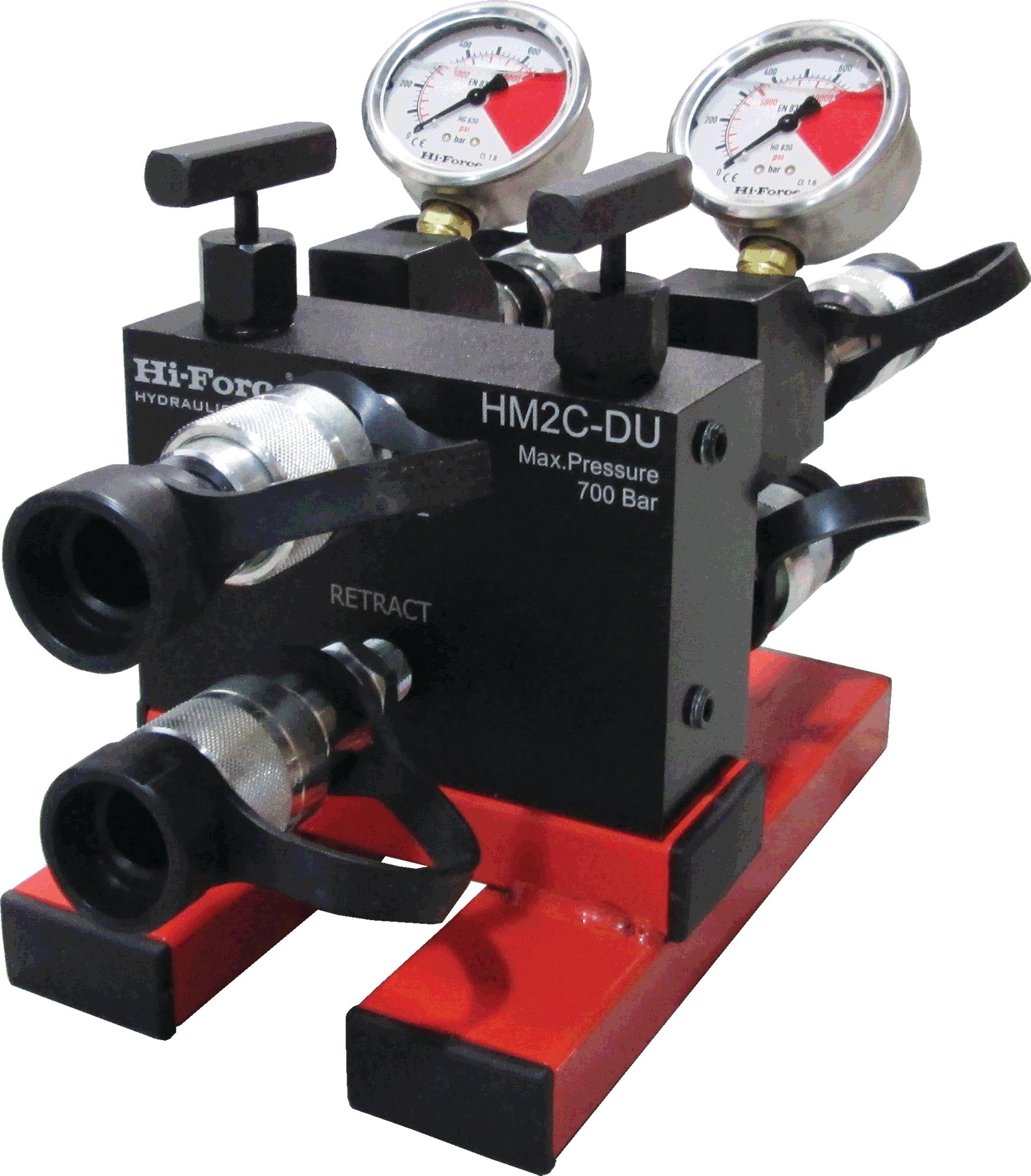

HM2C-DU	2-Way controlled manifold unit, suitable for double acting systems	3.0	150	198	228	100

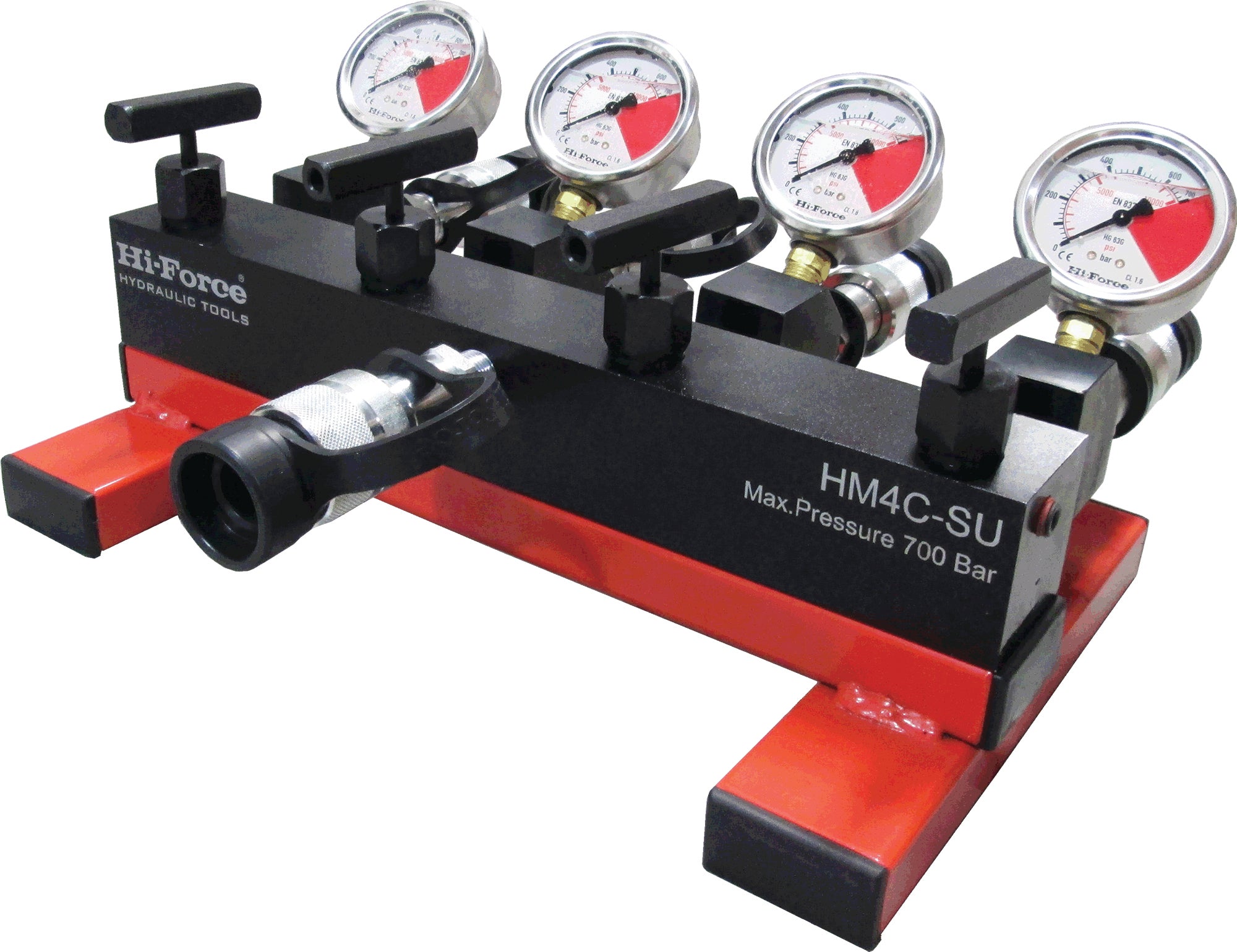

HM4C-SU	4-Way controlled manifold unit, suitable for single acting systems	3.5	350	148	228	100
HM4C-DU	4-Way controlled manifold unit, suitable for double acting systems	6.0	350	198	228	100

Hi -force Controlled Manifold Assemblies

From: £900.00Ex. VAT

Est. lead time to dispatch: 1-2 Days

Working pressure 700 bar
Up to 4 outlets with individual control on each
Designed for single or double acting systems
