Camlok ACH Adjustable horizontal plate clamp

ACH 'Adjustable' Horizontal Plate Clamps

Frequently bought together

On Sale

Camlok ACH Adjustable horizontal plate clamp

From: £937.84Ex. VAT ~~£1,042.04~~

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening.

Capacities from 1300 to 10000 kg
Jaw capacities from 0 to 300 mm
Adjustable jaw to fit a wide range of plate thicknesses

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

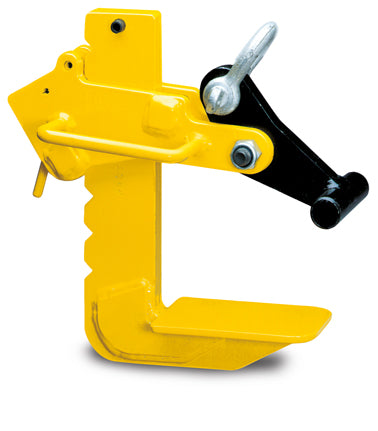

ACH Adjustable horizontal plate clamp

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple ratchet mechanism.

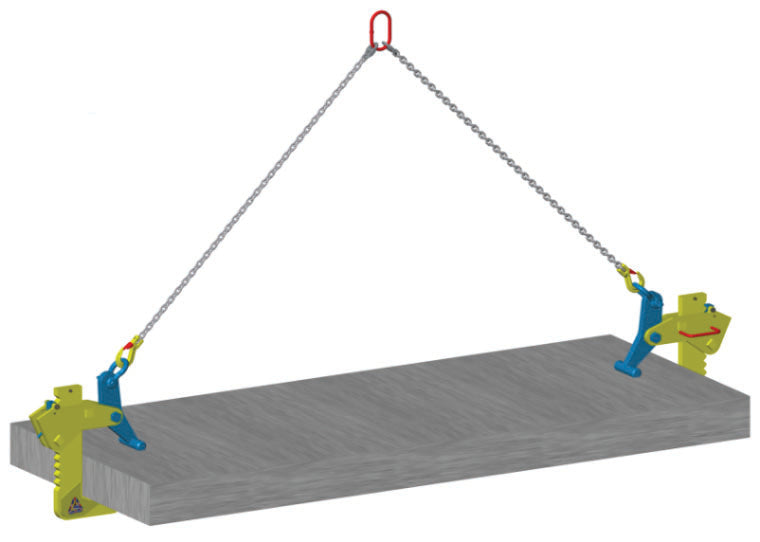

These clamps are to be used in Pairs and are especially suited to the transportation of large plate bundles.

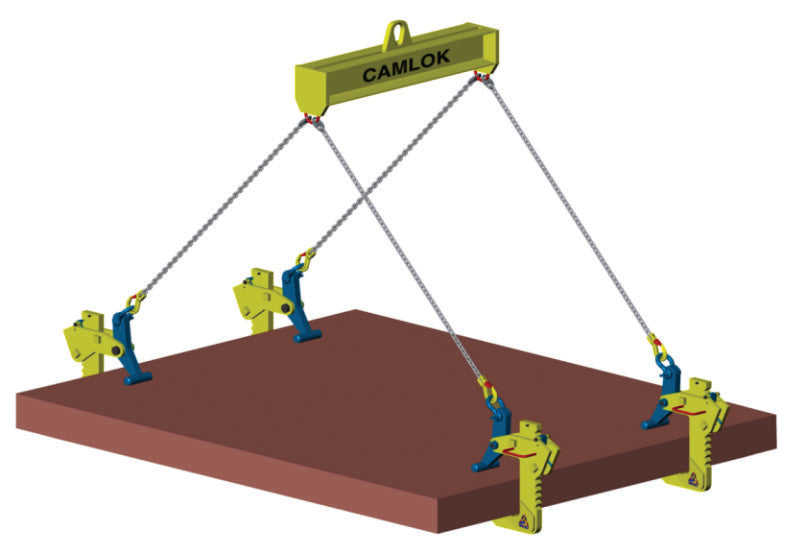

It is recommended that the clamps are used in conjunction with a chain sling or wire rope sling, and it is recommended that you use a spreader beam for larger plates.

Catalogue_4856bd24-a64c-4a67-b80c-d2ac3e77ef7b.pdf

Model	WLL (kg)*	Jaw Capacity (mm)	Weight (kg)*
ACH1.3L	1300	0-250	17
ACH3.3L	3300	0-250	28
ACH6.6L	6650	0-250	64
ACH10.0	10,000	50-300	90

*Per pair of clamps without chains up to an angle of 45° from the vertical.

Model	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)
ACH1.3L	298	20	41	160	80	20	18
ACH3.3L	321	23	50	160	80	25	20
ACH6.6L	405	30	82	210	100	30	28
ACH10.0	495	30	82	210	100	30	28

On Sale

Camlok ACH Adjustable horizontal plate clamp

Name: Camlok ACH Adjustable horizontal plate clamp
Brand: Camlok
SKU: ACH 1300-1-3
Price: 937.84 GBP
Availability: InStock

From: £937.84Ex. VAT ~~£1,042.04~~

Est. lead time to dispatch: 1 Day

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening.

Capacities from 1300 to 10000 kg
Jaw capacities from 0 to 300 mm
Adjustable jaw to fit a wide range of plate thicknesses
