RH/WH Horizontal plate clamps

This range of horizontal plate clamps have been designed, to be used in pairs, for the horizontal transportation of individual, and bundled plate.

Always use with a two-legged chain sling (not supplied).

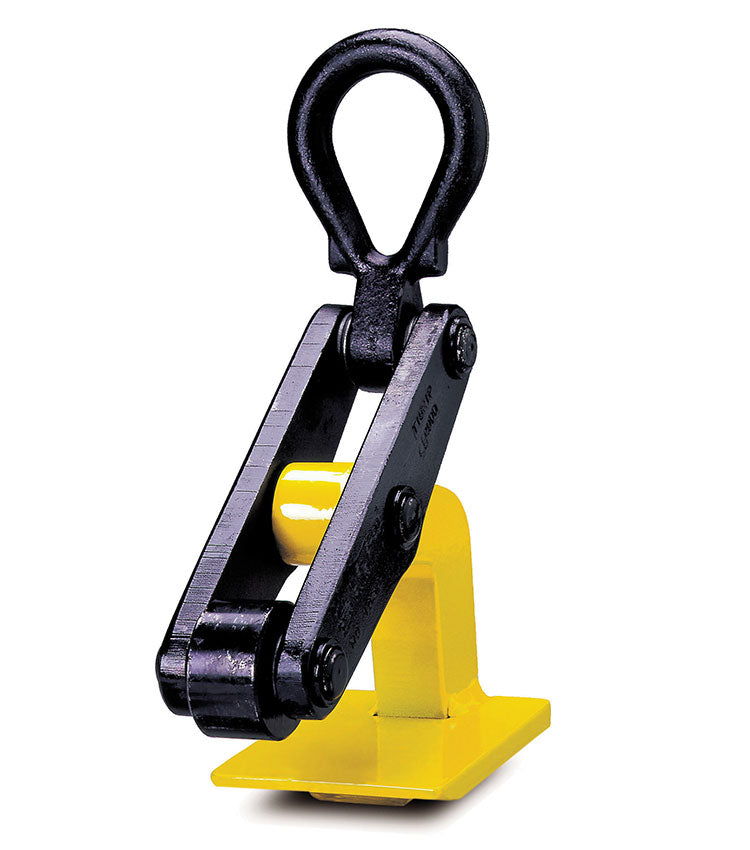

The RH clamps are fitted, as standard, with a steel roller
to reduce any potential marking of the plate.

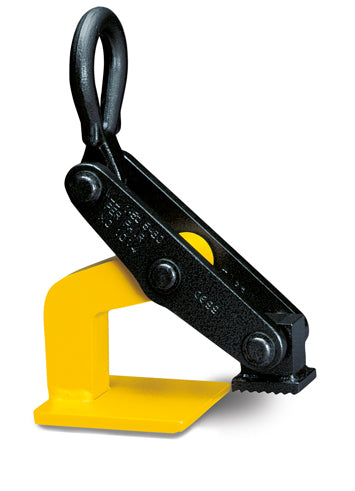

The WH model is fitted with a serrated steel plate.
These clamps are sold and must be used in pairs. They
should always be used with a two legged chain sling (not
supplied).

rh-wh-ma-en.pdf

Model	WLL kg*	Jaw capacity mm	Weight**
RH1500	1500	5 - 60	5.6
RH2500	2500	10 - 70	10.3
RH3500	3500	10 - 80	13.4
RH5000	5000	10 - 102	27.7
WH1500	1500	5 - 60	5.7
WH3500	3500	10 - 80	13.5

*Per Pair, angle from vertical max 45. **Weight per pair of clamps without chains

Model	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	J mm	K mm	L mm	M mm	N mm	P mm	R mm	S mm	T mm
RH1500	5	60	60	105	250	200	22	30	12	50	73	18	36	65	120	100	10
RH2500	10	70	75	130	135	275	38	30	12	64	92	25	58	77	150	100	10
RH3500	10	80	90	162	345	292	48	30	15	64	92	25	65	105	185	100	10
RH5000	10	102	110	170	425	345	45	45	20	89	130	35	80	120	210	120	12
WH1500	5	60	60	105	250	200	22	30	12	50	73	18	36	65	120	100	10
WH3500	10	80	90	162	345	292	48	30	15	64	92	25	65	105	185	100	10
