Camlok THS Loading Horizontal Plate Clamps

From: £440.88Ex. VAT ~~£489.87~~

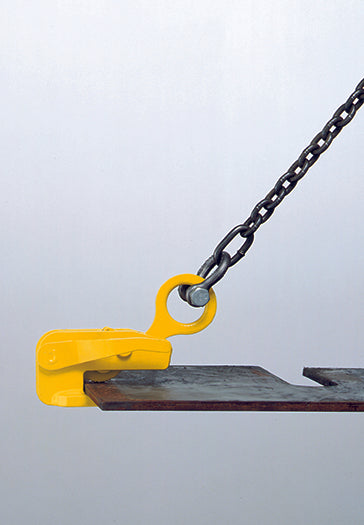

The THS horizontal plate clamps are specifically designed to be used when loading plate horizontally into presses, shears, guillotines and other industrial machines or where the CH clamps are not suitable

Capacities from 750 to 1500 kg
Jaw capacities from 0 to 20 mm
Spring-loaded safety lock ensures the clamp remains on the plate

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

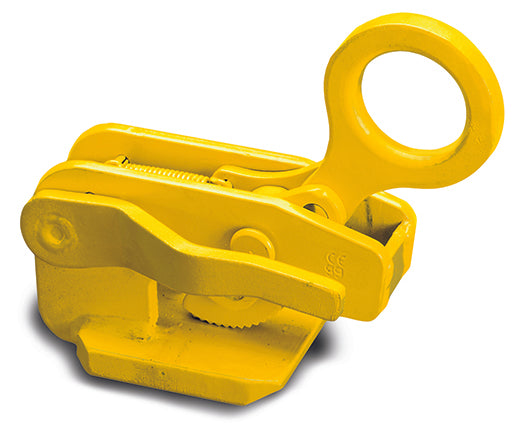

THS Loading horizontal plate clamp

The unique design of the THS allows them to be used individually when loading plate. However, when transporting plate horizontally the THS clamps should be used in pairs.

Other features of this clamp include a spring loaded safety lock that ensures the clamp remains on the plate in the unloaded position prior to lifting. Maximum plate surface hardness 300 Brinell / 32 Rockwell C.

When used in pairs the angle from the vertical must not
exceed 30°.

THS-MA-SP-EN.pdf

Model	WLL (kg)*	Jaw capacity (mm)	Weight (kg)*
THS 750	40 - 750	0 - 20	3.2
THS 1500	75 - 1500	0 - 35	6.1

*Per clamp

Model	A,mm	B,mm	C,mm	D,mm	E,mm	F,mm	G,mm	H,mm	I,mm	J,mm	K,mm	L,mm
THS 750	30	70	130	97	50	12	15	255	12	135	80	40
THS 1500	38	80	165	120	70	15	17	335	15	165	90	50

On Sale

Camlok THS Loading Horizontal Plate Clamps

From: £440.88Ex. VAT ~~£489.87~~

Est. lead time to dispatch: 1 week

Capacities from 750 to 1500 kg
Jaw capacities from 0 to 20 mm
Spring-loaded safety lock ensures the clamp remains on the plate

MODEL | WORKING LOAD LIMIT
