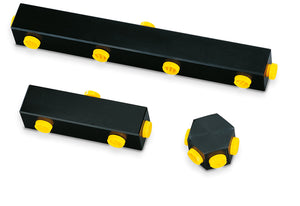

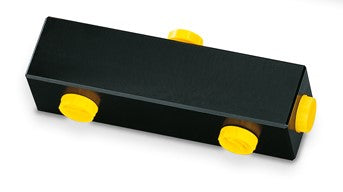

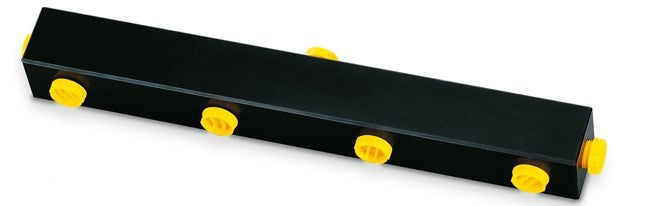

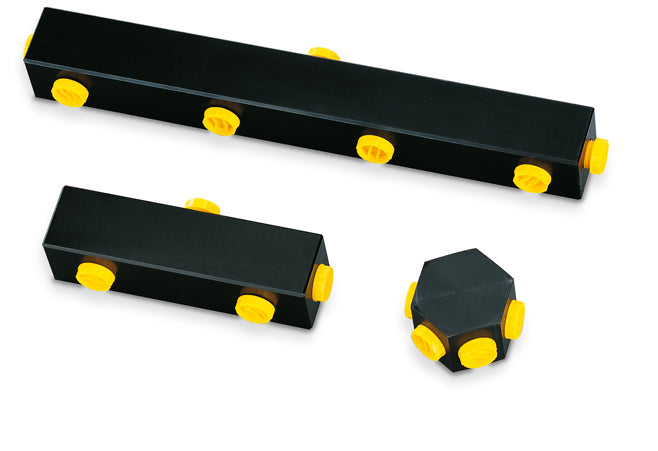

MY Manifolds 700bar

Manifolds are used when several hydraulic cylinders have to be connected to one hydraulic pump. All manifolds are equipped with 3/8 NPT inner oil ports, so that fittings, hydraulic hoses and couplers can easily be attached. To connect a manifold directly to a hand pump a FY-1 double nipple is recommended.

Each manifold is supplied with three steel blind plugs in case not all the oil ports are required.

yale-hydraulic-my-1-2-4-db-en-ger-2024-04-01.pdf

Model	Oil ports	Weight kg
MY-1	6 x 3/8-NPT inner	0.5
MY-2	4 x 3/8-NPT inner	0.6
MY-4	7 x 3/8-NPT inner	1.4

Model	MY-1	MY-2	MY-4
A, mm	40	150	330
B, mm	50	40	40
C, mm	-	90	90
D, mm	-	30	30

MY Manifolds 700bar

Name: MY Manifolds 700bar
Brand: Yale
SKU: MY1-1-2
Price: 153.51 GBP
Availability: InStock

From: £66.92Ex. VAT

Est. lead time to dispatch: 1 Day

Manifolds are used when several hydraulic cylinders have to be connected to one hydraulic pump.

700 bar
4, 6, or 7 ports
3/8-NPT oil ports

MY manifolds
