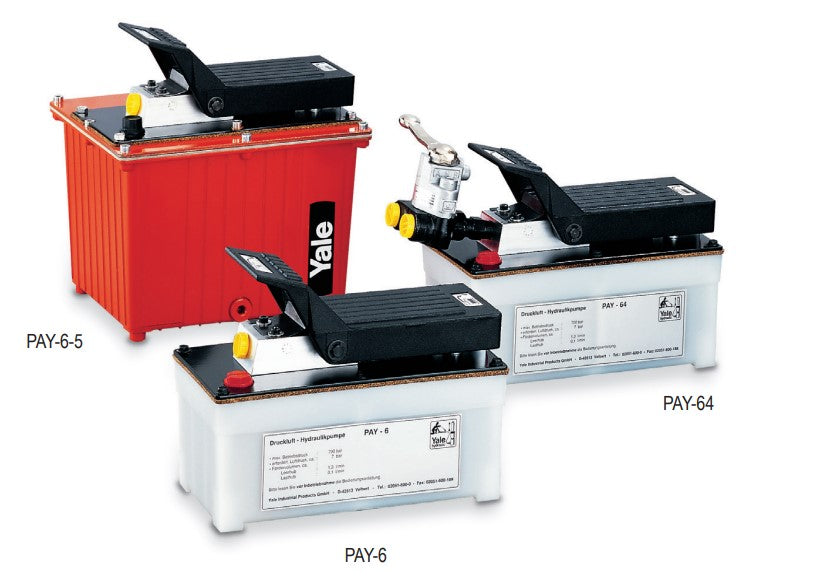

PAY Mini hydraulic pumps, with compressed air driven motor

Operating pressure max. 700bar
These mini-pumps are driven by an air-powered motor and can be connected to any supply source of compressed air. These compact low-cost pumps can operate all single-acting or double-acting hydraulic cylinders up to a max. operating pressure of 700 bar.

Due to large reservoirs, large cylinders or multiple cylinders can be operated. The use of an inline air filter-lubricator is recommended.

The hydraulic pressure can be infinitely adjusted on the regulator of the air-lubricator unit. The air-driven motor guarantees 100% explosion protection.

Pumps for double-acting hydraulic cylinders are equipped with an additional 4-way control valve type VHH-4/3. The connected hydraulic cylinder is controlled - advance - hold - return - by the universal pedal, which can be either hand or foot-operated.

Control of cylinder motion

Pedal in neutral position – motor stands still, cylinder stands, pressure is held.
Pedal depressed – motor starts, cylinder advances, pressure is built-up.
Pedal pushed forward – motor stands still, pressure is released, cylinder retracts.

yale-hydraulic-pay-db-en-ger-2024-04-01.pdf

Model	For Cylinders	Reservoir Volume l	Operating Pressure Max. Bar	Oil displacement l/min	Required air pressure bar	Air consumtion l/min	Oil Port DIN 16288	Air Port	Weight kg
PAY-6	single acting	1.5	700	1.28-0.14	7	560	3/8 NPT	1/4 NPT	6.3
PAY-6-5	single acting	5	700	1.28-0.14	7	560	3/8 NPT	1/4 NPT	12
PAY-64	double-acting	1.5	700	1.28-0.14	7	560	3/8 NPT	1/4 NPT	7.5
PAY-64-5	double-acting	5	700	1.28-0.14	7	560	3/8 NPT	1/4 NPT	13
