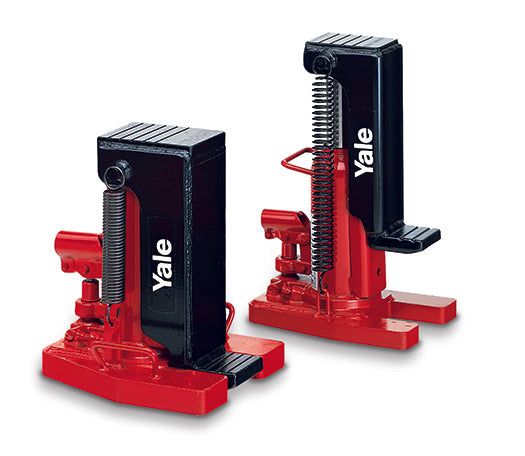

Yale YAM Machine jacks with lifting claw

Frequently bought together

On Sale

Yale YAM Machine jacks with lifting claw

From: £455.23Ex. VAT ~~£535.57~~

Machine jacks with lifting claw are used in applications where space below the load is restricted, thus preventing the use of traditional lifting equipment.

Capacity 2 - 15 t
Stroke 113 - 145 mm
Spring-return of the lifting clay (YAM-5 and YAM-10)

Total: £0.00

YAM Machine jacks with lifting claw

Machine jacks with lifting claw are used in applications where space below the load is restricted, thus preventing the use of traditional lifting equipment.

Typical applications for machine jacks are lifting, positioning and transportation of machines, heavy steel constructions or similar loads, as well as general repair and assembly applications.

The jacks are also useful for applications like levelling of high-rise warehouses, heavy-duty scaffolds, large frameworks etc.

Features

Offers safe lifting of machines with an extremely low clearance.
Incl. safety pressure valve to prevent overload.
Large base offers increased stability under load.
Pump lever can rotate through 270° (excluding YAM-2).
Same load can be lifted on either the head or the claw of jack.
Spring return of the lifting claw (only YAM-5 and YAM-10).
Precision-adjustable lowering valve.
Jacks are supplied ready to use incl. pump lever, and are filled with oil.

yale-hydraulic-yam-db-en-ger-2024-04-01.pdf

Model	Capacity on the claw t	Stroke mm	Weight kg
YAM-2	2	113	8
YAM-5	5	120	19
YAM-10	10	145	38
YAM-15.1	15	140	53

Model	YAM-2	YAM-5	YAM-10	YAM-15.1
A,mm	235	290	325	344
B,mm	180	257	280	321
C,mm	125	182	240	258
D,mm	50	75	100	110
E,mm	50	57	60	60
F,mm	85	117	150	168
G,mm	16	26	33	33
