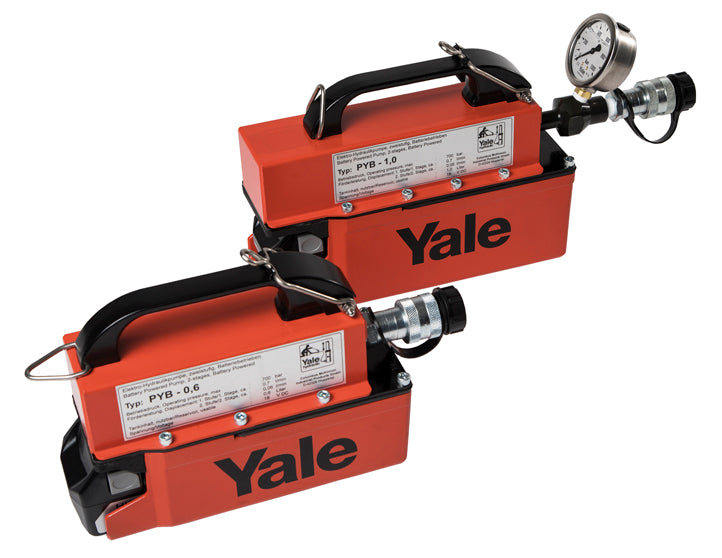

PYB Electric power pack, battery driven

Operating pressure max. 700bar

The power pack utilises a standard Hitachi Li-ion battery and charger to maximise operation.

Ideal for a range of applications using small to mid size single-acting cylinders, hydraulic spreaders, lifting wedges, nut splitters and much more.

Features

Operating pressure max. 700 bar.
One-Hand-Operation. Push-button integrated into ergonomic handle.
Two-stage operation with automatic switch-over.
With internal pressure relief valve.
Reservoir made from aluminium, extreme low weight.
Protective cover to prevent inadvertent switch on of pump.
Rubber tank bladder enables the pump to be used in any position.

Optional/Accessories

Standard HiKOKI Batterys (Typ BSL36A18x2) and chargers are exclusively used.
Battery PYB-BAT, 18V, weight 0.7 kg Art.-No. 192043950

Quick-charger PYB-CHARG, 230V and 12V (car plug socket incl.) Art.-No. 192043961
Pressure gauge set GYA-63 consisting of: Gauge GGY 632, Ø63mm, 0 - 1000 bar and adaptor. Art.-No. N14200497
Hydraulic hose HHC (to complete the connection a male coupler half CMY-1 is required)

Scope of delivery

Electric power pack, battery driven
Oil filled ready for work
Female coupler half CFY-1
Shoulder belt

Model	Description	Displacement	Reservoir volume litres	Displacement 1st stage l / min	Displacement 2nd stage l /m	weight w / o Battery kg	Weight with battery kg
PYB-0.6	Pump	two stage	600	0.7	0.06	4.8	5.5
PYB-1.0	Pump	two stage	1000	0.7	0.06	5.7	6.4

Cylinder size t	HPS-2/0,7 A up to HPS-2/10 A LP	HPS-1/0,7 A up to HPS-2/10 A HP	Piston travel speed in mm/ sec - LP	Piston travel speed in mm/ sec - HP
5	1	4	16.2	1.4
10	1	7	8.2	0.7
15	2	11	5.4	0.5
20	2	14	4.1	0.35
21	2	15	3.8	0.33
23	3	17	3.5	0.3
30	3	22	2.7	0.23
