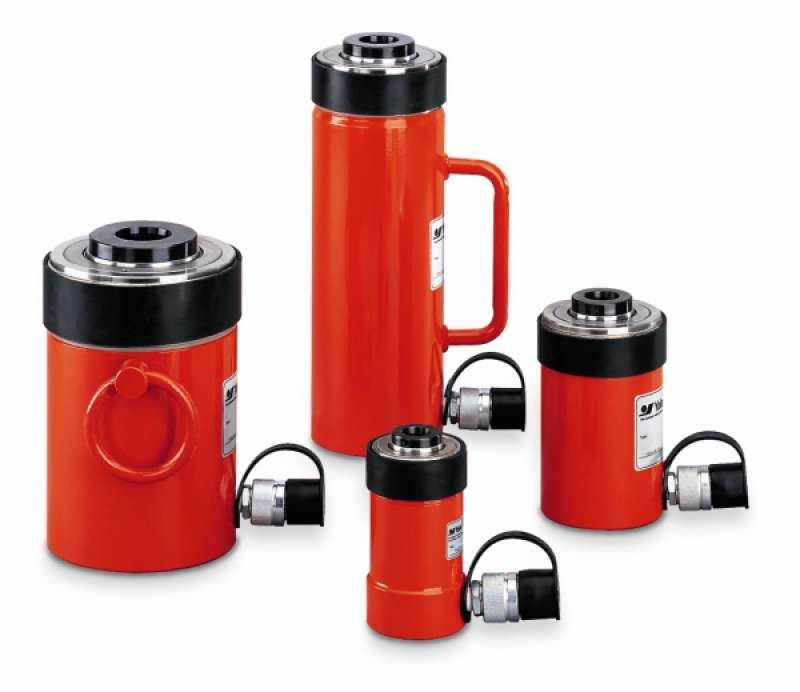

YCH Hollow cylinders

capacity 33 - 140 t

Basically, the applications are the same as for the single-acting hollow cylinders shown on the opposite page, but for this model range the return of the piston is done hydraulically by means of the second oil port. These double-acting hollow cylinders are used when the piston needs to be retracted quickly e.g. with high-cycle pulling applications.

Capacity
33 - 140 t
Maximum Operating Pressure
700 bar.
Yale ChroMo-Design
This design is engineered to withstand harsh conditions and prevent common causes of cylinder failure, resulting in a longer service life and lower long-term costs.
Double-Acting with Hydraulic Return
These cylinders can apply force in both directions, allowing them to be used in applications that require both pushing and pulling power, such as automated assembly lines, CNC machines, and car manufacturing.
Large Centre Hole Diameter
The large hole and threaded rod allow for significant pulling or tensioning force to be applied through the center of the cylinder.
Enhanced Durability
Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
Hard-Chromium Plated Piston with Replaceable, Heat-Treated Saddle
The plating acts as a protective barrier, preventing rust and chemical corrosion. The saddle can be easily replaced if it becomes damaged.
International Compatibility
Metric mounting threads at cylinder body and inside of piston.
Stop Ring
Prevents overtravel of the piston up to full operating pressure.
Interchangeable Hardened Saddle
The hardened saddle is designed to withstand the high pressures and loads of heavy-duty applications, reducing wear and tear on the cylinder
Inner and Outer Dirt Wipers
Act as a barrier, preventing external contaminants like dirt, dust, mud, and moisture from entering the cylinder's hydraulic fluid and internal components.
Secure, Mechanical Seal
Oil port thread 3/8 NPT.
Included Female Coupler Half CFY-1
Allows for rapid, single-handed connectivity and disconnect of hydraulic lines, which improves efficiency and saves time.
Improved Portability
All cylinders come with carrying handle.
Safe Installation and Removal
Model YCH-62/250 with 2 lifting rings.

Model	Art.-No.	Cylinder size	Capacity kN	Capacity pull kN	Stroke mm	Effective plunger area cm²	Oil volume max cm³	Closed height mm	Centre hole diameter mm	Cylinder outside diameter mm	Weight kg
YCH-33/150	N11400079	33	335	180	150	47.9	716	310	33	114	19
YCH-33/250	N11400080	33	335	180	250	47.9	1200	415	33	114	25
YCH-62/250	N11400081	62	618	300	250	88.3	2220	452	55	163	55
YCH-93/250	N11400082	93	930	450	250	133	3320	465	55	193	82
YCH-100/40	N11400083	100	1000	500	40	143	578	190	55	200	38
YCH-140/200	N11400084	140	1400	700	200	200.2	4080	383	80	253	115

Model	YCH-33/150	YCH-33/250	YCH-62/250	YCH-93/250	YCH-100/40	YCH-140/200
A, mm	300	405	440	450	175	365
B, mm	450	655	690	700	215	565
C, mm	33	33	55	55	55	80
D, mm	114	114	163	193	200	253
E, mm	90	90	130	150	155	195
F, mm	67	67	105	120	125	160
J, mm	62	62	96	110	110	145
K, mm	3	3	5	5	5	5
M, mm	120	120	-	-	-	-
O, mm	M48 x 1.5	M48 x 1.5	M78 x 2	M85 x 2	M85 x 2	M115 x 2
P, mm	30	30	40	45	45	50
R, mm	5	5	5	5	-	-
S, mm	51	51	24	30	24	30
T, mm	-	-	290	290	115	240
U, mm	92	92	135	160	165	210
V, mm	4 x M10	4 x M10	4 x M12	4 x M16	4 x M16	4 x M16
W, mm	40	40	50	65	-	-
X, mm	M110 x 2	M110 x 2	M160 x 3	M190 x 3	-	-
Y, mm	10	10	12	15	15	18
