Single-acting with spring return,

capacity 12 - 93 t

Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved.

Hollow cylinders are used as the power component within hydraulic puller sets, for pre-stressing anker bolts, removing axles, shafts, bushings, extracting tubes, as well as for heavy-duty pulling applications.

Capacity
12 - 93 t
Maximum Operating Pressure
700 bar.
Large Centre Hole Diameter
The large hole and threaded rod allow for significant pulling or tensioning force to be applied through the center of the cylinder.
Enhanced Durability
Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
Hard-Chromium Plated Piston with Replaceable, Heat-Treated Saddle
The plating acts as a protective barrier, preventing rust and chemical corrosion. The saddle can be easily replaced if it becomes damaged.
International Compatibility
Metric mounting threads at cylinder body and inside of piston.
Stop Ring
Prevents overtravel of the piston up to full operating pressure.
Interchangeable Hardened Saddle
The hardened saddle is designed to withstand the high pressures and loads of heavy-duty applications, reducing wear and tear on the cylinder
Inner and Outer Dirt Wipers
Act as a barrier, preventing external contaminants like dirt, dust, mud, and moisture from entering the cylinder's hydraulic fluid and internal components.
Secure, Mechanical Seal
Oil port thread 3/8 NPT.
Included Female Coupler Half CFY-1
Allows for rapid, single-handed connect and disconnect of hydraulic lines, which improves efficiency and saves time
Improved Portability
From YCS-21/150 with carrying handle.
Safe Installation and Removal
From YCS-57/70 with two lifting rings.

Model	Art.-No.	Cylinder size	Capacity kN	Stroke mm	Effective plunger area cm²	Oil volume max cm³	Closed height mm	Centre hole diameter mm	Cylinder outside diameter mm	Weight kg
YCS-12/40	N11400070	12	120	40	17.2	71	142	20	70	3.5
YCS-12/75	N11400071	12	120	75	17.2	132	195	20	70	4.5
YCS-21/50	N11400072	21	214	50	30.5	153	173	27	100	8.5
YCS-21/150	N11400073	21	214	150	30.5	458	335	27	100	15
YCS-33/60	N11400074	33	335	60	47.9	287	193	33	114	12
YCS-33/150	N11400075	33	335	150	47.9	716	343	33	114	21
YCS-57//70	N11400076	57	567	70	81	562	242	42	150	25
YCS-62/150	N11400077	62	618	150	88.3	1330	335	55	163	38
YCS-93/75	N11400078	93	930	75	133	990	280	80	214	55

Model	YCS-12/40	YCS-12/75	YCS-21/50	YCS-21/150	YCS-33/60	YCS-33/150	YCS-57//70	YCS-62/150	YCS-93/75
A, mm	135	188	163	325	183	333	230	323	265
B, mm	175	263	213	475	243	483	300	473	340
C, mm	20	20	27	27	33	33	42	55	80
D, mm	70	70	100	100	114	114	150	163	214
E, mm	55	55	73	73	90	90	118	130	170
F, mm	40	40	53	53	65	65	90	100	136
J, mm	38	38	50	50	62	62	85	96	132
K, mm	3	3	3	3	3	3	3	3	5
M, mm	-	-	-	120	-	120	-	-	-
O, mm	M30 x 1.5	M30 x 1.5	M40 x 1.5	M40 x 1.5	M48 x 1.5	M48 x 1.5	M65 x 2	M78 x 2	M115 x 2
P, mm	20	20	25	25	30	30	35	40	45
R, mm	4	4	5	5	5	5	5	5	-
S, mm	-	-	-	51	-	51	24	24	24
T, mm	-	-	-	-	-	-	155	200	170
U, mm	58	58	82	82	92	92	120	135	180
V, mm	2 x M8	2 x M8	2 x M10	2 x M10	4 x M10	4 x M10	4 x M12	4 x M12	4 x M16
W, mm	30	30	35	35	40	40	50	60	-
X, mm	M70 x 2	M70 x 2	M100 x 2	M100 x 2	M110 x 2	M110 x 2	M150 x 3	M160 x 3	-
Y, mm	7	7	10	10	10	10	12	12	15

On Sale

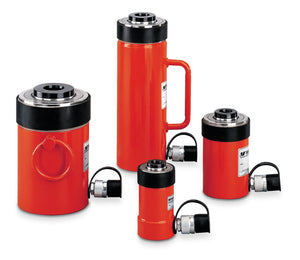

YCS Hollow Cylinders
