Single-acting with spring return

capacity max. 10 - 100 t

Low-height cylinders are recommended for all lifting, pushing, levelling, pressing applications especially in tight working areas.

These very compact hydraulic cylinders are designed for lifting and positioning jobs as well as all general maintenance applications, where low height, portability and light weight are needed. These versatile cylinders are found in all industrial areas like steel mills, civil engineering, heavy construction industry, power plants, off-shore industries etc. Due to their short strokes flat cylinders should not be subjected to side loading.

Maximum Capacity
10 - 100 t
Maximum Operating Pressure
700 bar.
Yale ChroMo-Design
This design is engineered to withstand harsh conditions and prevent common causes of cylinder failure, resulting in a longer service life and lower long-term costs.
Single-Acting with Spring Return
The spring automatically returns the piston to its starting position when pressure is released, creating a predictable and safe rest position in case of a power failure.
Low Height
Ideal for tight working areas.
Enhanced Durability
Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
Stop Ring
Prevents overtravel of the piston up to full operating pressure.
Dirt Wipers
Act as a barrier, preventing external contaminants like dirt, dust, mud, and moisture from entering the cylinder's hydraulic fluid and internal components.
Secure, Mechanical Seal
Oil port thread 3/8 NPT.
Included Female Coupler Half CFY-1
Allows for rapid, single-handed connect and disconnect of hydraulic lines, which improves efficiency and saves time
Improved Portability
YFS-100/15 with carrying handle.
Safe Installation and Removal
YLS-100/55 with lifting rings

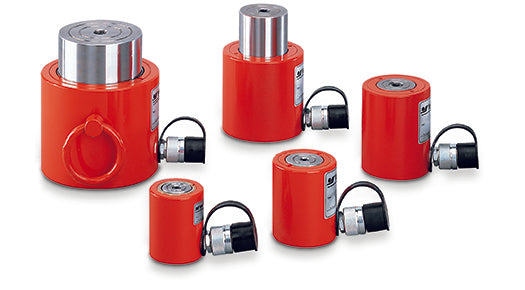

Model	Art.-No.	Cylinder size	Capacity kN	Stroke mm	Effective plunger area cm²	Oil volume max cm³	Closed height mm	Cylinder outside diameter mm	Weight kg
YLS-10/35	N11300634	10	100	35	14.3	51	86	70	2.5
YLS-20/45	N11300635	20	200	45	28.6	128	100	85	4
YLS-30/60	N11300636	30	300	60	42.9	266	120	100	6.5
YLS-50/60	N11300637	50	500	60	71.5	426	122	125	10.4
YLS-100/55	N11300638	100	1000	55	143	788	141	170	24

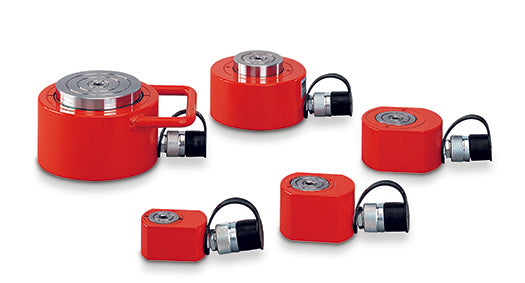

Model	Art.-No.	Cylinder size	Capacity kN	Stroke mm	Effective plunger area cm²	Oil volume max cm³	Closed height mm	Cylinder outside diameter mm	Weight kg
YFS-10/11	N11300629	10	100	11	14.3	16	43	56	1.5
YFS-20/15	N11300630	20	200	15	28.6	31	60	76	3
YFS-30/15	N11300631	30	300	15	44.2	66	60	96	4.2
YFS-50/15	N11300632	50	500	15	71.5	107	70	145	8.7
YFS-100/15	N11300633	100	1000	15	143	215	91	170	16

Model	YLS-10/35	YLS-20/45	YLS-30/60	YLS-50/60	YLS-100/55	YFS-10/11	YFS-20/15	YFS-30/15	YFS-50/15	YFS-100/15
A, mm	86	100	120	122	141	43	60	60	70	91
B, mm	121	145	180	182	196	54	75	75	85	106
D, mm	70	85	100	125	170	56	76	96	145	170
D1, mm	-	-	-	-	-	83	95	115	-	-
E, mm	43	60	75	95	135	43	60	75	95	135
F, mm	38	50	57	75	120	38	50	57	75	120
H, mm	16	17	19	19	26	16	19	19	19	22
M, mm	-	-	-	-	148	-	-	-	-	85
Q, mm	-	-	-	-	-	28	38	48	-	-
R, mm	54	54	54	54	54	54	54	54	54	54
S, mm	-	-	-	-	25	-	-	-	-	55
Z, °	10	10	5	5	-	10	5	5	5	5
