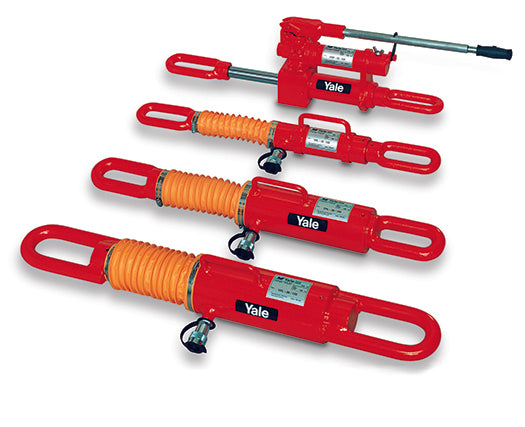

YPL Pull cylinder - Single-acting with spring return

Capacity max. 10 - 51t

Pull cylinders are able to produce extremely high pulling forces and can be controlled precisely by the use of hand pumps or power packs. In neutral position pull cylinders are fully extended. As soon as the cylinders are pressurized the forged links are drawn together. A built-in return spring extends the piston again as soon as the pressure is released.
Shipbuilding, heavy-vessel construction, steel construction, civil engineering as well as general repair and maintenance applications.

Yale ChroMo-Design.
Operating pressure max. 700 bar.
Single-acting with spring return.
Can be operated in all positions (except model YPPS).
Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
Hard-chromium plated piston with replaceable, heat-treated saddle.
Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
Forged, replaceable links.
With carrying handle and piston protection cover.
Oil port thread 3/8 NPT.
Incl. female coupler half model CFY-1.
The pull cylinder YPPS-10/150 is equipped with an integrated hand pump similar to HPS-2/0,7 A.

Model	Art.-No.	Cylinder size	Capacity kN	Stroke mm	Effective plunger area cm²	Oil volume max cm³	Length between links mm	Weight kg
YPL-10/150	N11900349	10	100	150	14.2	213	750	9
YPL-20/150	N11900350	20	200	150	30.6	459	795	22
YPL-30/150	N11900351	30	300	150	42.6	639	875	29
YPL-51/150	N11900927	51	510	150	74.6	1120	955	59
YPPS-10/150	N11900001	10	100	150	14.2	213	750	19

Model	YPL-10/150	YPL-20/150	YPL-30/150	YPL-51/150	YPPS-10/150
A, mm	749	795	875	955	749
B, mm	78	95	120	150	78
C, mm	32	35	56	70	32
D, mm	68	105	121	156	68
E, mm	120	120	150	150	120
G, mm	23	30	32	40	23
H, mm	M24 x 1.5	M45 x 2	M50 x 2	M60 x 2	M24 x 1.5
