The BVA hydraulic toe jacks is engineered for lifting in restricted and hard-to-reach spaces. Ideal for moving and positioning heavy machinery, fabricated steelwork, and general engineering equipment, these jacks deliver reliable performance where standard lifting equipment won’t fit.

Capacity range: 3000kg to 15000kg
Extremely low entry height of the toe.
Operating lever rotates through 220º.

Total: £0.00

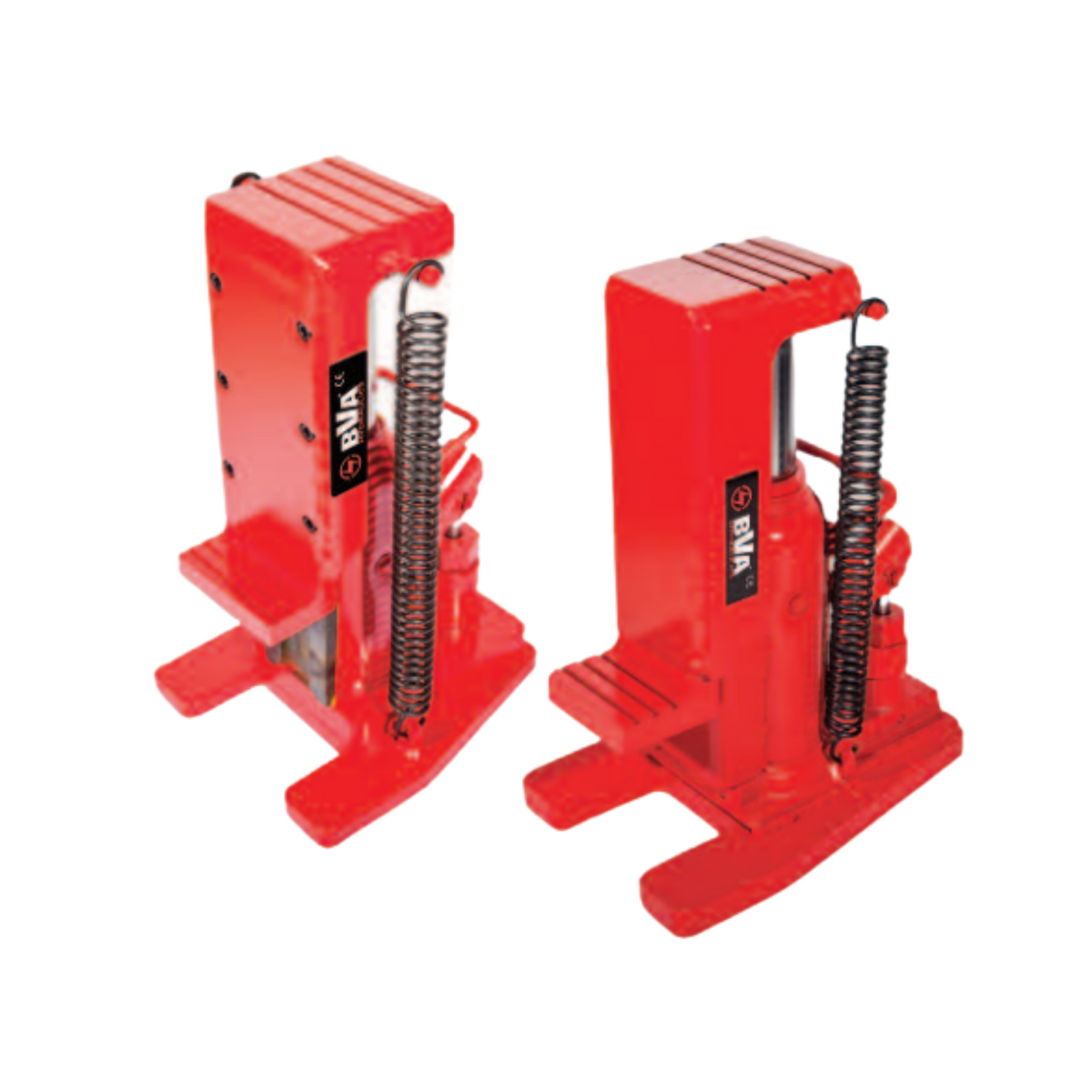

BVA Hydraulic Toe Jacks

Available in four lifting capacities — 3 tonne, 6 tonne, 10 tonne and 15 tonne — each model features an ultra-low toe profile, making it perfect for applications with minimal ground clearance.

Lifting capacity of 3, 6, 10 and 15t, on the head and toe.
Extremely low entry height of the toe.
Operating lever rotates through 220º.
Carry handle for ease of handling.
Chrome plated plunger improves seal life and optimum performance.
Heat treated and chrome plated medium -carbon steel cylinder.
U.S. Patented by-pass device protects hydraulic system from over travel damage.
Hydraulic system is protected from internal damage by a patented by-pass mechanism (U.S. Patent No. 5946912).

Technical_specification_cf63fc9a-0b95-48cc-8841-9b6883aa8b4e.pdf

Model	Claw capacity kg	Head capacity kg	Stroke mm	Weight kg
BVA-3	3000	3000	130	17.8
BVA-6	6000	6000	130	27.2
BVA-10	10000	10000	130	39.5
BVA-15	15000	15000	130	54.3

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm
BVA-3	230	215	190	88	35	93	16
BVA-6	267	280	190	88	52	120	22
BVA-10	280	295	230	100	60	140	29
