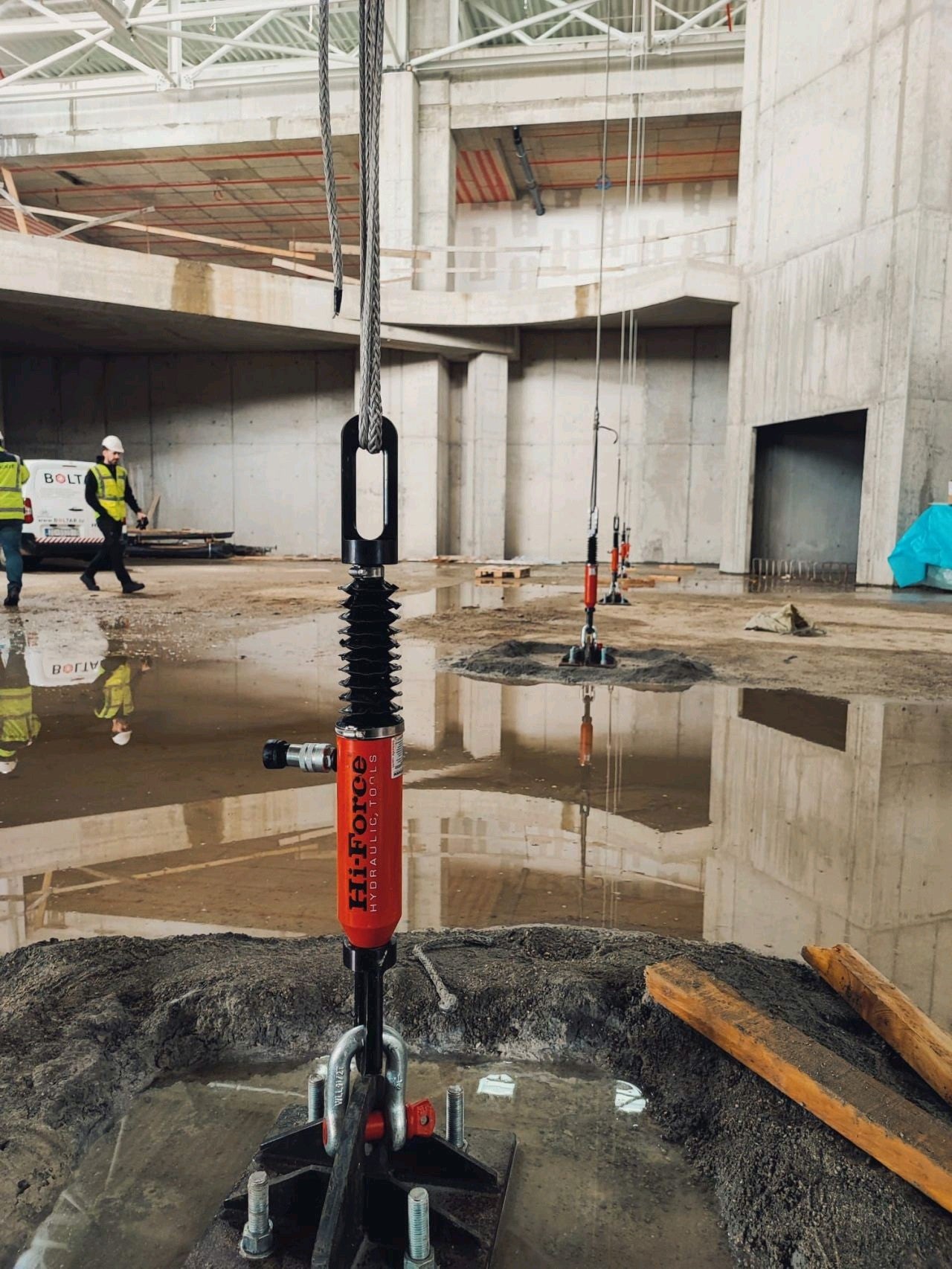

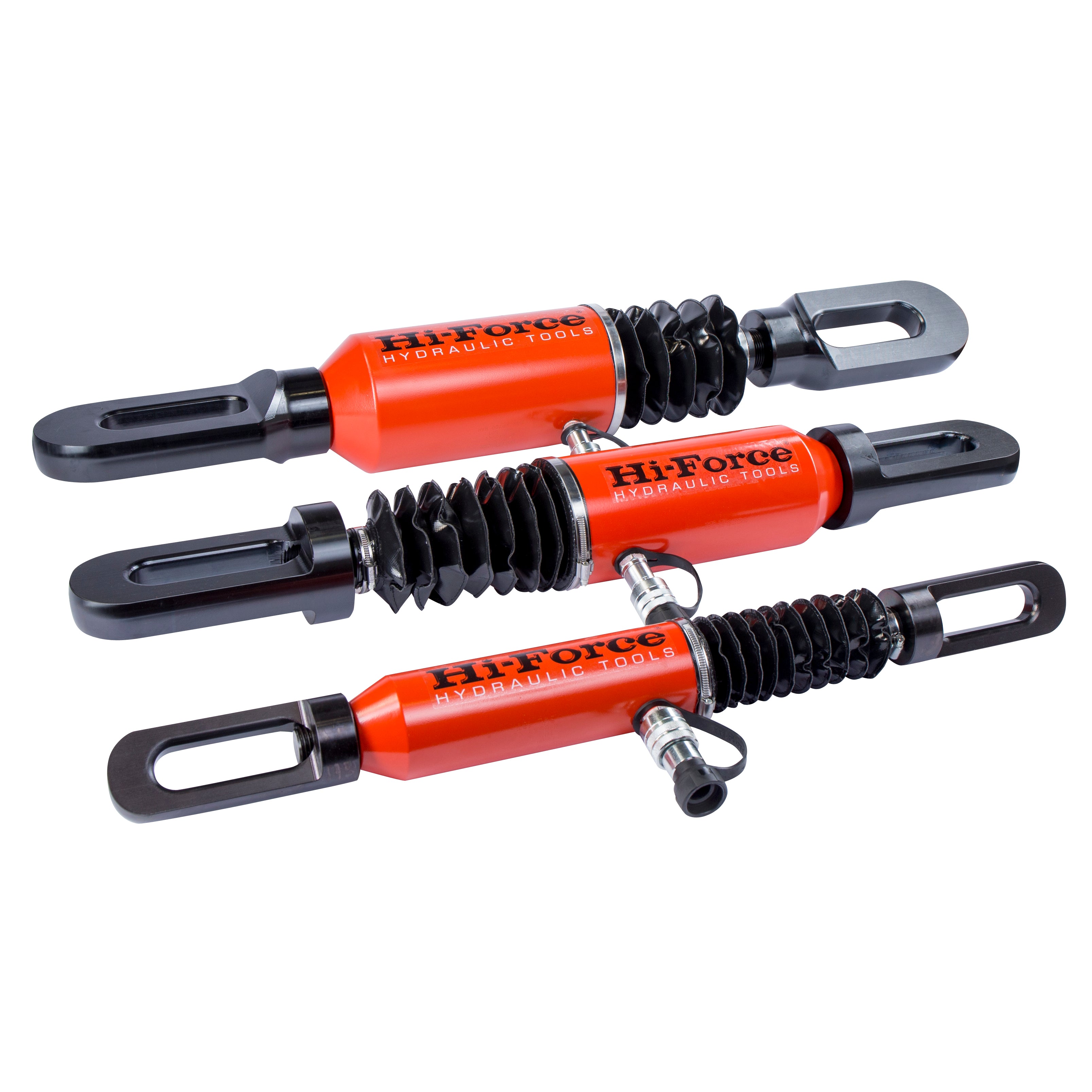

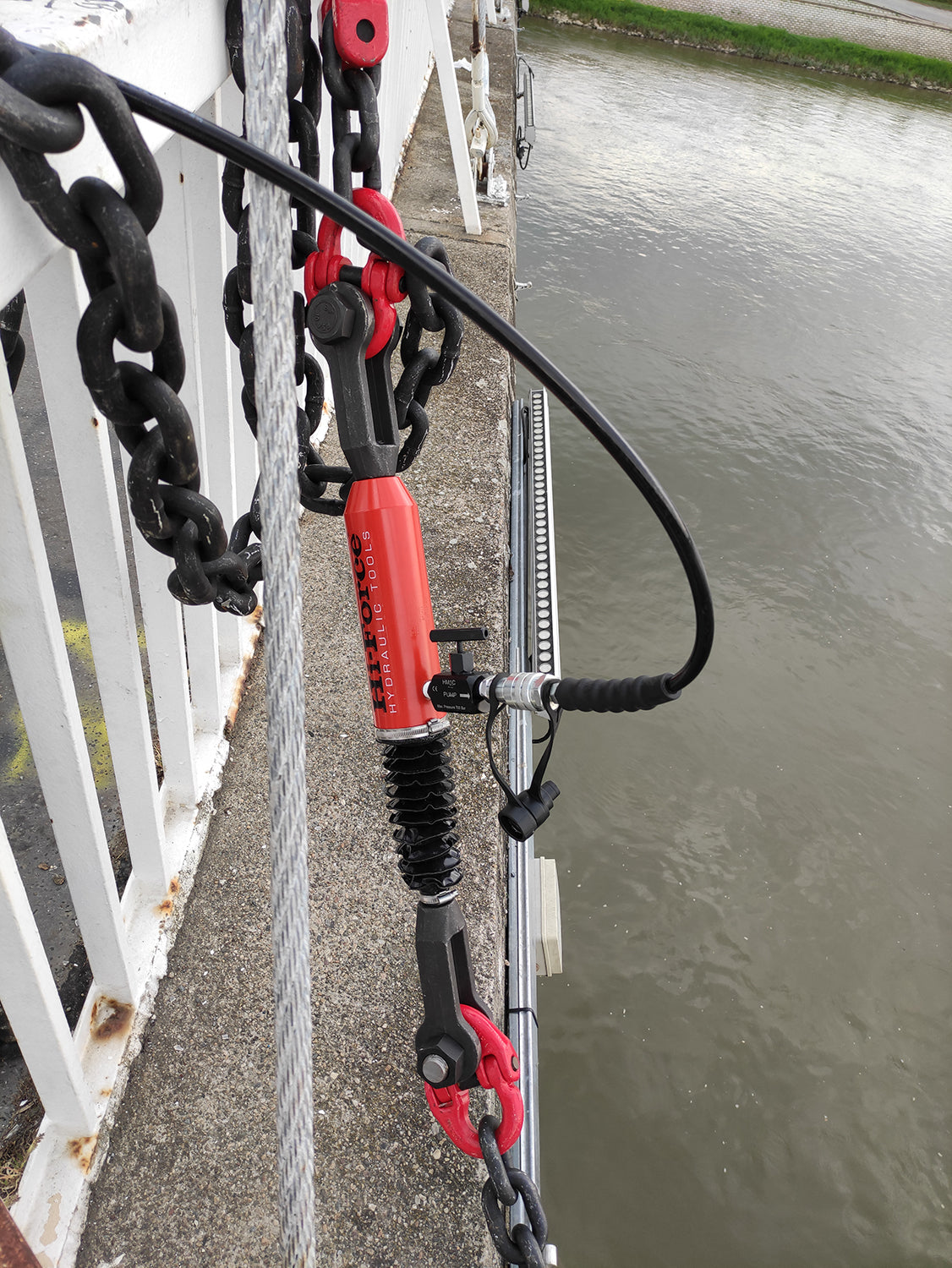

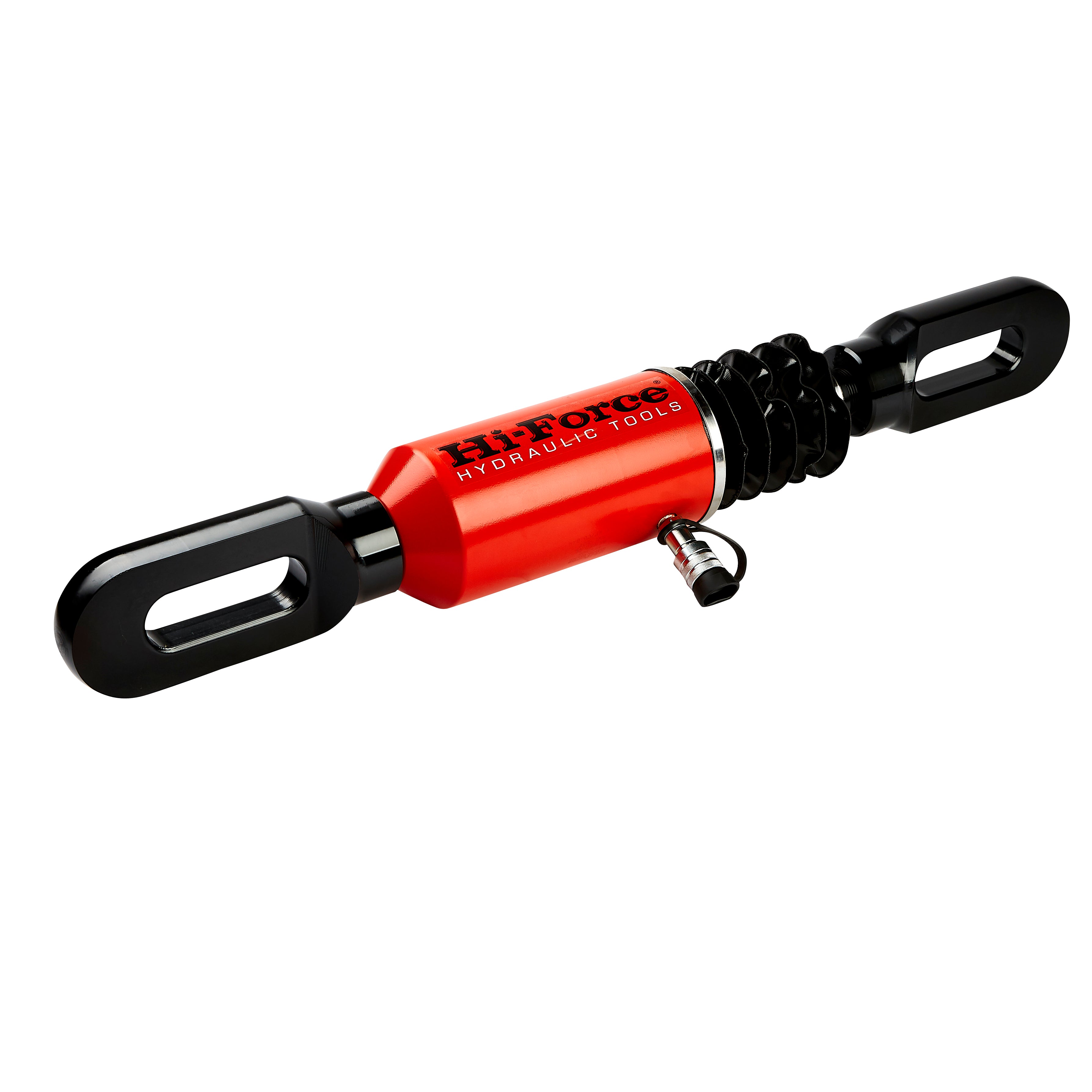

The HPC pull cylinder range comprises of four models, with capacities ranging from 10 tonnes to 50 tonnes of pulling force. All models are 700 bar maximum working pressure and feature a single acting, spring assisted return piston, with a 152 mm stroke length. Fitted with easily replaceable machined pulling eyes on the piston rod and cylinder base, the 10 tonnes capacity version can also be supplied with clevis eye attachments. Typical applications for HPC pull cylinders are plate alignment prior to welding in shipyards, cable tensioning and heavy load moving using chains or wire ropes.

• Capacities from 10 to 50 tonnes
• Stroke length 152 mm
• Working pressure 700 bar

The HFL low height single acting failsafe lock ring cylinder range combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support, offering a sustainable lifting force in very confined work areas. Ideally suited for applications requiring load holding for extended periods, such as bridge support work. The HFL range features a single acting load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard.

• Capacities from 50 to 520 tonnes
• Stroke lengths from 45 to 51 mm
• Working pressure 700 bar
