TTG 'Horizontal Flange' Girder Stacking Clamps

Frequently bought together

On Sale

Camlok TTG Girder grab for horizontal transport

From: £340.48Ex. VAT ~~£378.31~~

The TTG girder clamps are designed for transporting girders in the ‘I’ configuration / position

Capacities from 25 to 7500 kg
Jaw capacities from 0 to 45 mm
Can be used individually or for longer girders used in pairs in conjunction with a spreader beam

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.05Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

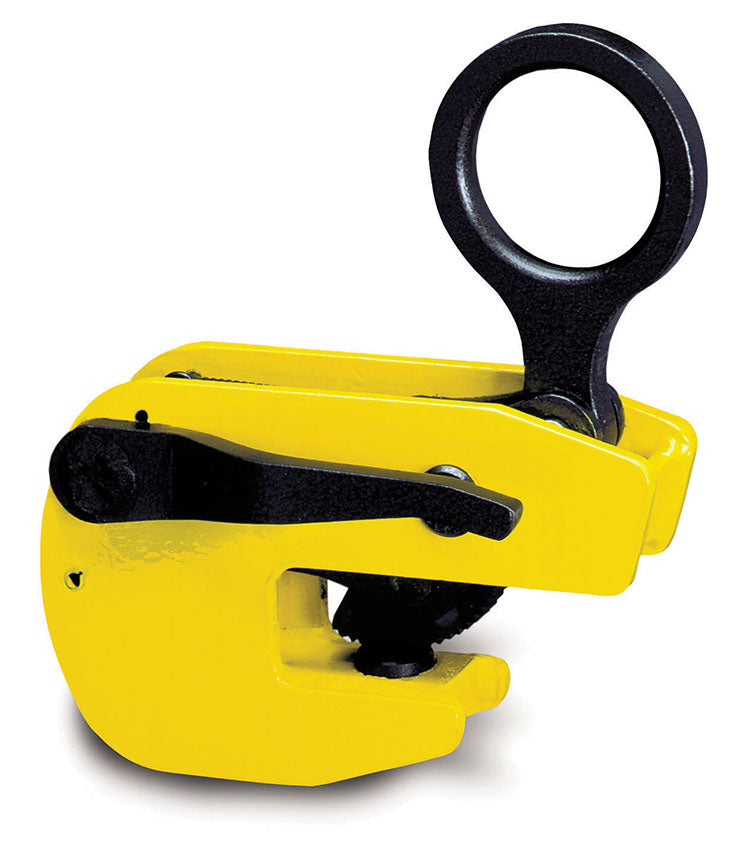

TTG Girder grab for horizontal transport

The TTG girder clamps are designed for transporting girders in the ‘I’ configuration / position.

These are ideal for use within steel stockholders. Once offered up to the horizontal flange of the girder they are locked in place by the jaw locking lever.

The design allows the clamp to be used individually, however for longer girders they should be used in pairs in conjunction with a spreader beam.

TTG-MA-SP-EN.pdf

Model	WLL kg*	Jaw capacity mm	Weight kg*
TTG 500	25 - 500	0 - 20	2.9
TTG 1500	75 - 1500	0 - 30	6.8
TTG 3000	150 - 3000	0 - 35	11.3
TTG 4500	450 - 4500	0 - 40	14.8
TTG 7500	750 - 7500	0 - 45	30

* Per clamp

Model	A,mm	B,mm	C,mm	D,mm	E,mm	F,mm	G,mm	H,mm	I,mm	J,mm	K,mm	L,mm	M,mm
TTG 500	50	36	25	148	200	27	20	95	110	10	56	85	13
TTG 1500	70	43	35	140	180	40	30	155	230	15	50	100	16
TTG 3000	80	55	42	180	214	40	32	190	284	20	60	114	20
TTG 4500	90	60	46	196	248	40	35	207	314	20	64	117	25
TTG 7500	110	64	55	222	304	50	42	237	367	22	90	143	30

On Sale

Camlok TTG Girder grab for horizontal transport

Name: Camlok TTG Girder grab for horizontal transport
Brand: Camlok
SKU: TTG 500-1-4
Price: 340.48 GBP
Availability: InStock

From: £340.48Ex. VAT ~~£378.31~~

Est. lead time to dispatch: 1 Day

The TTG girder clamps are designed for transporting girders in the ‘I’ configuration / position

Capacities from 25 to 7500 kg
Jaw capacities from 0 to 45 mm
Can be used individually or for longer girders used in pairs in conjunction with a spreader beam

MODEL | WORKING LOAD LIMIT
