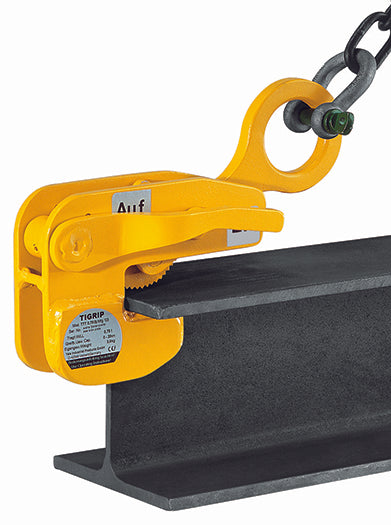

TTT Horizontal girder clamps split toe plate

The TTT horizontal girder clamps have been designed to be used in pairs and can be used on girders up to a surface hardness of HRC 30/Brinell 300.

The unique design of the split toe allows long sections of girders to be lifted with out the use of a spreader beam. This is achieved by using a pair of clamps with a 2-legged chain sling.

TTT-MA-SP-EN.pdf

Model	WLL (kg)	Jaw capacity (mm)	Weight (kg)
TTT 0.75	750	0 - 20	3
TTT 1.5	1500	0 - 35	6
TTT 3.0	3000	0 - 40	10
TTT 4.5	4500	0 - 45	16

*Per Clamp

Model	A,mm	B,mm	C,mm	D,mm	E,mm	F,mm	G,mm	H,mm
TTT 0.75	225	142	70	45	70	106	16	16
TTT 1.5	225	180	80	56	70	120	19	20
TTT 3.0	225	195	84	60	75	125	19	25
TTT 4.5	225	222	105	65	90	147	22	30
