Force Logic LOAD-MASTER CDH1 Compression Load Cell | 0.5 - 20 Tonne

Frequently bought together

Force Logic LOAD-MASTER CDH1 Compression Load Cell | 0.5 - 20 Tonne

From: £870.00Ex. VAT

LOAD-MASTER CDH1 compression load cells provide the ideal solution for proof load testing structures , load measurement of presses, and for weighing materials.

Rated capacities from 500kg to 20 tonne
Low-profile design for use in confined spaces
High strength stainless steel load cell

On Sale

YS Universal Cylinders

From: £174.57Ex. VAT ~~£205.37~~

For all universal operations where high forces and compact dimensions are required. Robust cylinder design, manufactured from chromium-molybdenum steel with hard chromium plated piston and large bronze bearings.

Capacity 5 - 100 t
Operating pressure max 700 bar
Single-acting with spring return

Total: £0.00

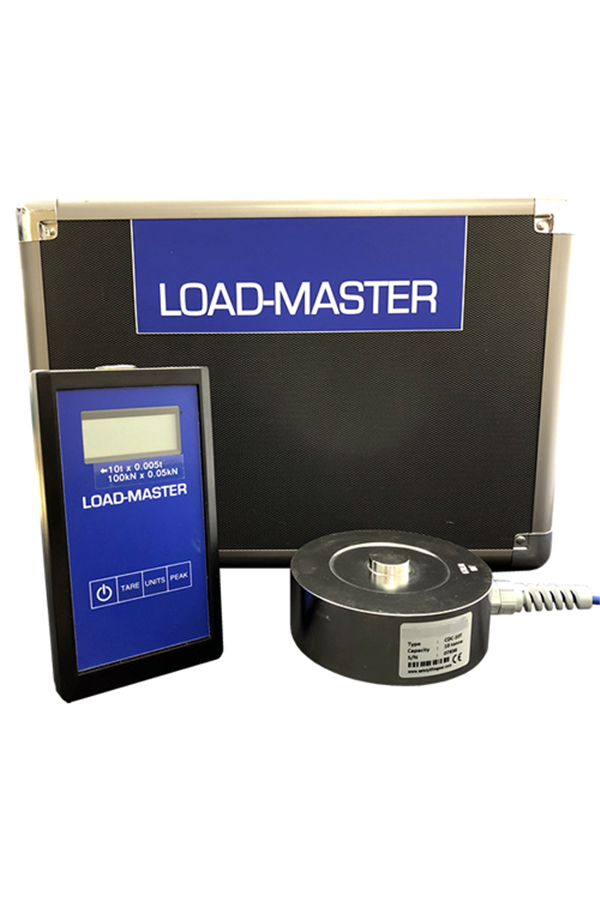

LOAD-MASTER CDH1 Compression Load Cell

CDH1 disc-type load cells provide a lightweight and portable compression load measurement system for jacking, lifting and moving, testing and calibrating presses, proof testing structures and structural components, weighing materials and verifying industrial weighing machines.

The low profile design makes them particularly useful in tight spaces and applications with limited headroom.

Display units: kg
Battery life: 30 hours minimum
Cable Length: 3 metre
Maximum Error: 0.5% applied load
Safety factor: 3x rated capacity
Operating temperature: -10 to 60 °C
Environmental sealing: IP65

CDH1_DS.pdf

Capacity	Divisions	ØA	B	C	ØD
500	0.2	63	25	4	10
1000	0.5	63	25	4	10
2500	1	63	25	4	10
5000	2	100	40	5	20
10000	5	100	40	5	20
20000	10	100	40	5	20
kg		mm

Force Logic LOAD-MASTER CDH1 Compression Load Cell | 0.5 - 20 Tonne

From: £870.00Ex. VAT

Est. lead time to dispatch: 1 Day

LOAD-MASTER CDH1 compression load cells provide the ideal solution for proof load testing structures , load measurement of presses, and for weighing materials.

Rated capacities from 500kg to 20 tonne
Low-profile design for use in confined spaces
High strength stainless steel load cell

Capacity

Quantity
