Force Logic LOAD-MASTER DTH1 Compression Load Cell | 0.5 - 100 Tonne

Frequently bought together

Force Logic LOAD-MASTER DTH1 Compression Load Cell | 0.5 - 100 Tonne

From: £990.00Ex. VAT

LOAD-MASTER DTH1 compression load cells provide the ideal solution for proof load testing structures , load measurement of presses, and for weighing materials.

Rated capacities from 5 tonne to 100 tonne
Compact size and low weight
High accuracy stainless steel load cell body

On Sale

YS Universal Cylinders

From: £174.57Ex. VAT ~~£205.37~~

For all universal operations where high forces and compact dimensions are required. Robust cylinder design, manufactured from chromium-molybdenum steel with hard chromium plated piston and large bronze bearings.

Capacity 5 - 100 t
Operating pressure max 700 bar
Single-acting with spring return

Total: £0.00

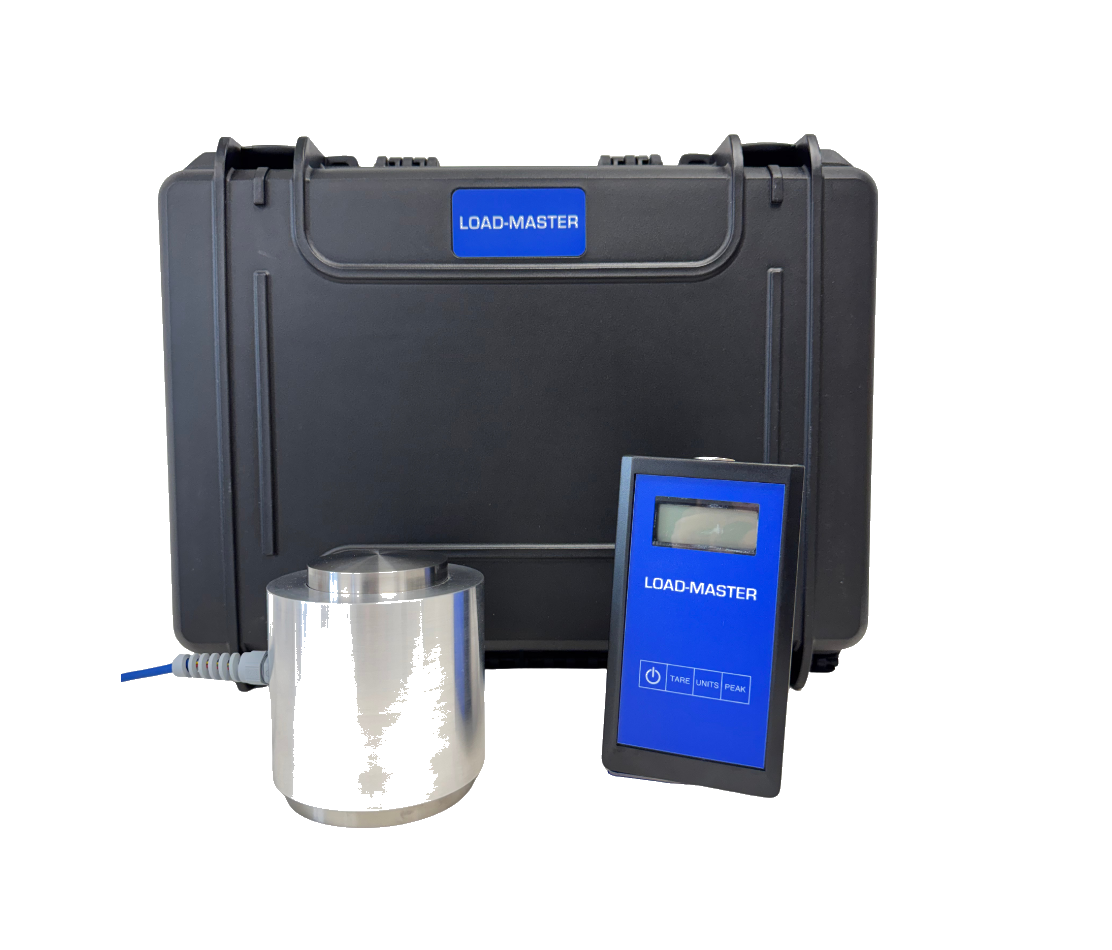

LOAD-MASTER DTH1 Compression Load Cell

A compact and low weight compression load cell for load measurement and weighing in all industrial processes. DTH1 offers a convenient and rugged solution to mount on hydraulic cylinders for monitoring press forces and jacking loads, proof testing structural members, or placing under machines to create simple weighing scales. With high resistance to impact & dynamic forces and a domed surface to ensure correct load transfer through the sensor body, measurement reliability is ensured in the most arduous industrial environments. Portable handset display includes ‘tare’ and ‘peak reading’ facility for weighing and force measurement uses.

Display units: tonne/kilonewton
Battery life: 30 hours minimum
Cable Length: 3 metre
Maximum Error: 0.25% applied load
Safety factor: 3x rated capacity
Operating temperature: -10 to 60 °C
Environmental sealing: IP65

DTH1_DS.pdf

Capacity	Divisions	ØA	ØB	C	D	E
5	0.002	40	50	50	26	M4
10	0.005	50	63	62	30	M6
25	0.01	63.5	75	80	35	M6
50	0.02	88.5	100	110	45	M8
100	0.05	100	112	140	55	M10
tonne		mm

Force Logic LOAD-MASTER DTH1 Compression Load Cell | 0.5 - 100 Tonne

From: £990.00Ex. VAT

Est. lead time to dispatch: 1 Day

LOAD-MASTER DTH1 compression load cells provide the ideal solution for proof load testing structures , load measurement of presses, and for weighing materials.

Rated capacities from 5 tonne to 100 tonne
Compact size and low weight
High accuracy stainless steel load cell body

Capacity

Quantity
