Force Logic LOAD-MASTER LITE Load Link Indicator | 1 - 4.75 Tonne

Frequently bought together

Force Logic LOAD-MASTER LITE Load Link Indicator | 1 - 4.75 Tonne

From: £915.00Ex. VAT

LOAD-MASTER LITE tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.

Rated capacities from 1000kg to 4750kg
Cabled (LML-C) and Wireless (LML-W) versions
Lightweight high strength aluminium alloy load cell

Hire Me

Green Pin® Bow Shackle SC - Standard bow shackle with screw collar pin

From: £3.14Ex. VAT

Hire from £2.20

The Green Pin®Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.

- Capacity 0.33t to 55t

- Screw pin for quick (dis)assembly

- Galvanization assures long term durability

Total: £0.00

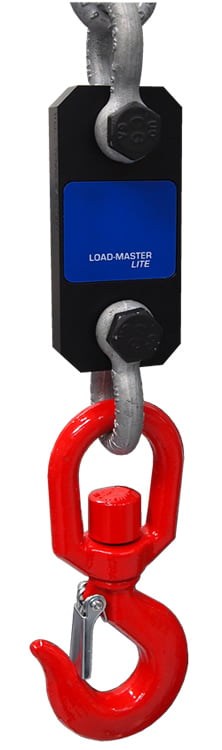

LOAD-MASTER LITE Load Link Indicator

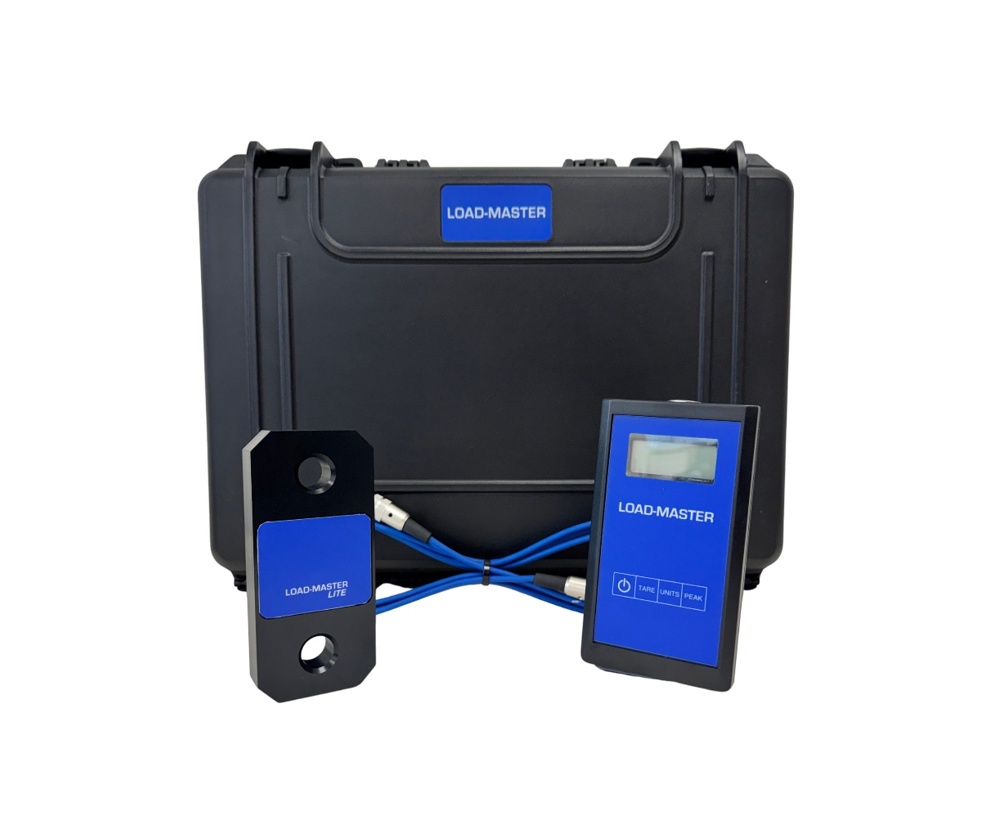

Ultra compact size and lightweight yet retaining the high safety factors required for lifting and material handling. LOAD-MASTER LITE load cells guarantee safe and accurate measurements in all industrial processes. LML-C and LML-W standard portable systems include handset display with ‘tare’ and ‘peak hold’ function.

Also available with a range of single and multi-channel indicating, recording & control instruments.

Display Units - Tonne
Battery life - 250 hours minimum
Wireless Range (LM-W) - 100 metre (direct sight)
Cable Length (LM-C) - 10 metre
Maximum Error - 0.25 % applied load
Safety Factor - 5 x rated capacity
Operating Temperature - 0 to 50 °C
Environmental Sealing - IP65

LML_DS.pdf

Capacity (kg)	Divisions	A (mm)	B (mm)	C (mm)	D (mm)	ØE (mm)	Shackle Size (tonne)
1000	0.5	140	63	18.5	95	17	2
2000	1	140	63	18.5	95	17	2
3250	1	148	63	24	95	20	3.25
4750	1	148	63	27	95	24	4.75

Force Logic LOAD-MASTER LITE Load Link Indicator | 1 - 4.75 Tonne

From: £915.00Ex. VAT

Est. lead time to dispatch: 1 Day

Rated capacities from 1000kg to 4750kg
Cabled (LML-C) and Wireless (LML-W) versions
Lightweight high strength aluminium alloy load cell

READOUT OPTION

CAPACITY

Quantity

On-Site Inspections & Repairs

LOLER examinations, testing and expert maintenance to keep your equipment safe, compliant and working hard.

Bespoke Design & Manufacture

Custom lifting beams, frames and assemblies engineered for your unique load and site needs.

Testing & Maintenance Available

Keep your equipment performing at its best with our expert servicing and maintenance options.

Fast, Certified Hire

Get site-ready lifting gear delivered next day across London and the South East.

Force Logic LOAD-MASTER LITE Load Link Indicator | 1 - 4.75 Tonne

From: £915.00Ex. VAT
